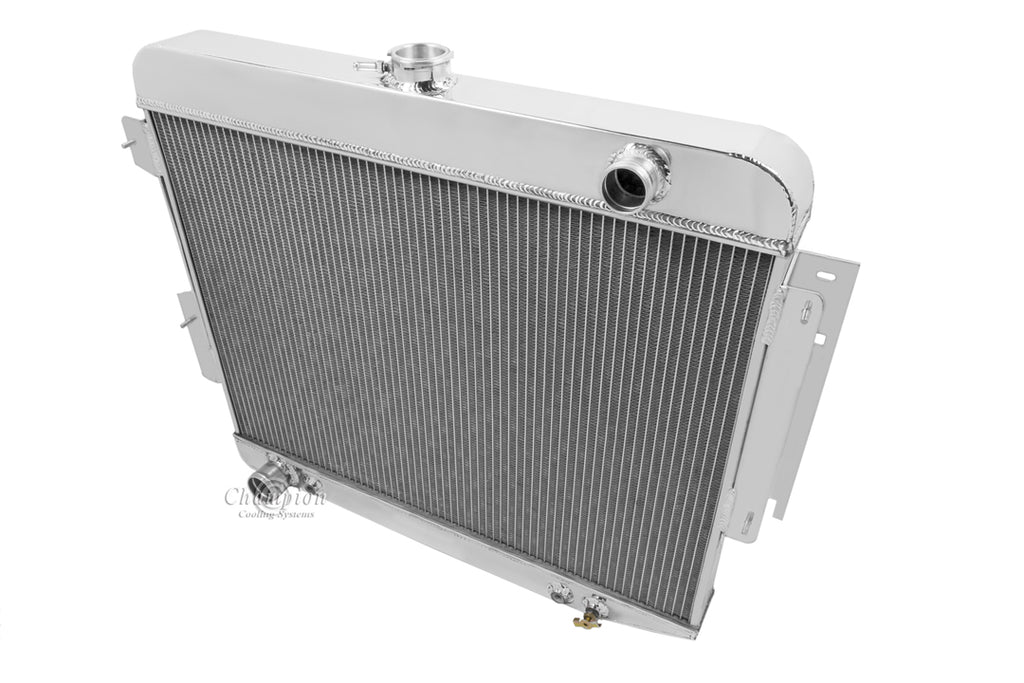

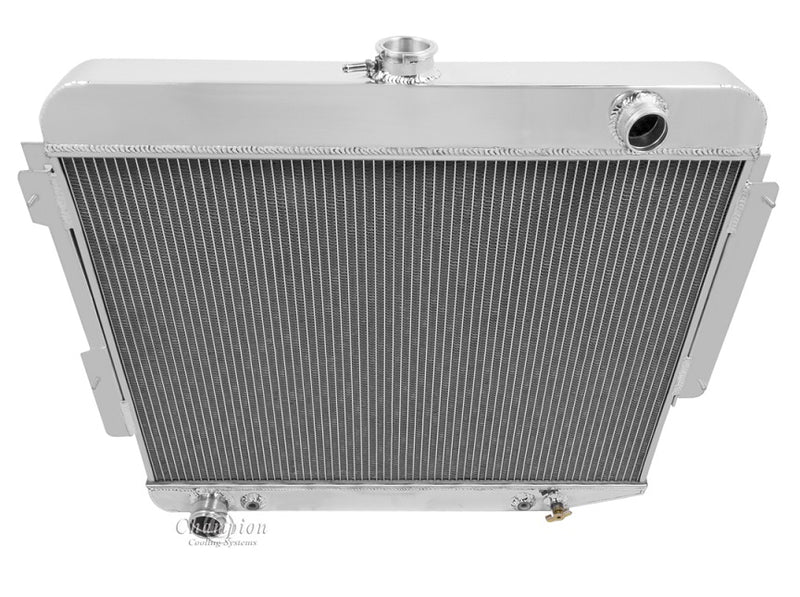

MC1640

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp

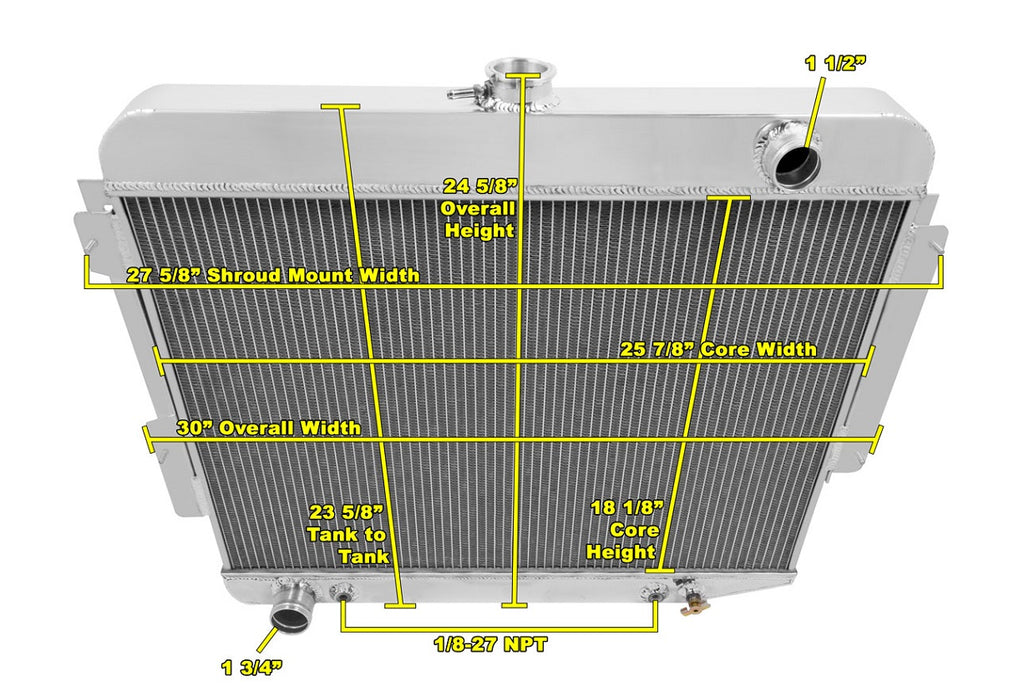

Radiator Dimensions:
Total: 24.75" tall (with cap) x 29.75" wide (with brackets)
Core: 18" tall x 26.25" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator cap included
Transmission Cooler included (1/8-27NPT)

Custom shroud for electric fan(s) available upon request:
