Description

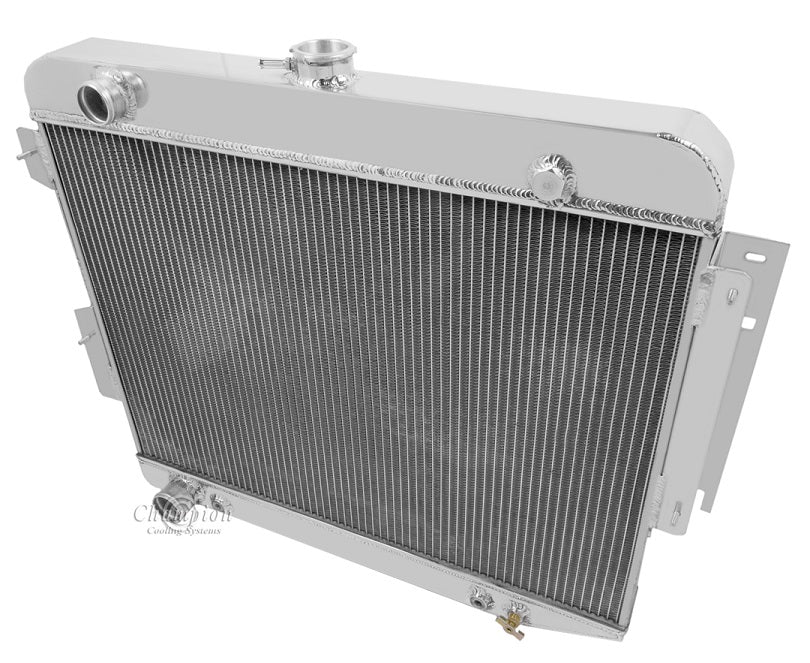

Champion All Aluminum Radiator
Plus Shroud & two 12" SPAL 1522 Fans
4-Row Core | Cools up to 800hp
This is the 18" tall core we do not carry the 21"

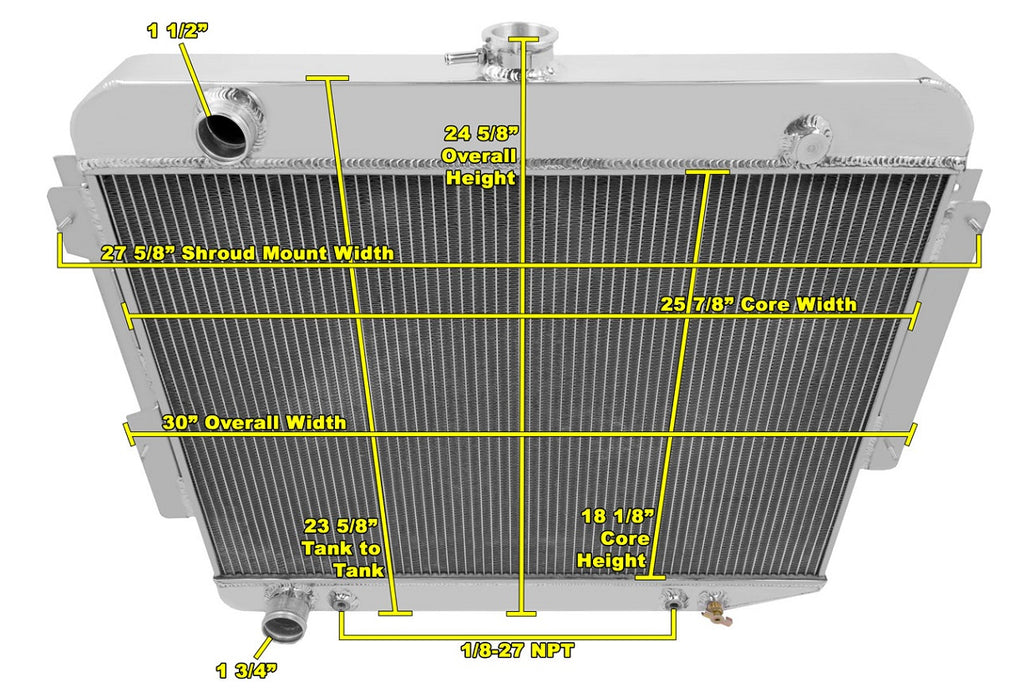

Radiator Dimensions:
Total: 24" tall x 30" wide (with brackets)
Core: 18" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver side
Tanks: 2.5"
Tubes: 0.63" thick
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

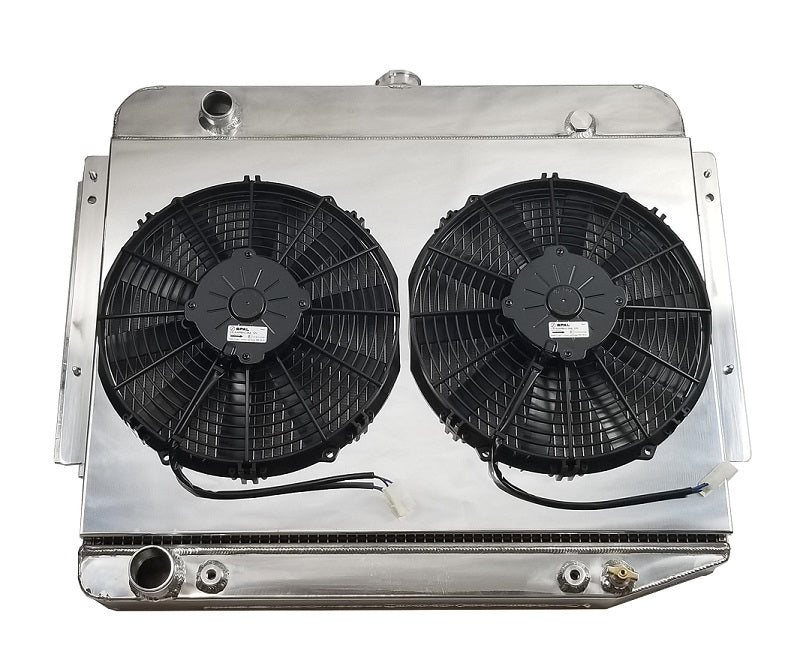

Plus Shroud & two 12" SPAL 1522 Fans
4-Row Core | Cools up to 800hp
This is the 18" tall core we do not carry the 21"
Radiator Dimensions:
Total: 24" tall x 30" wide (with brackets)
Core: 18" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver side
Tanks: 2.5"
Tubes: 0.63" thick
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
