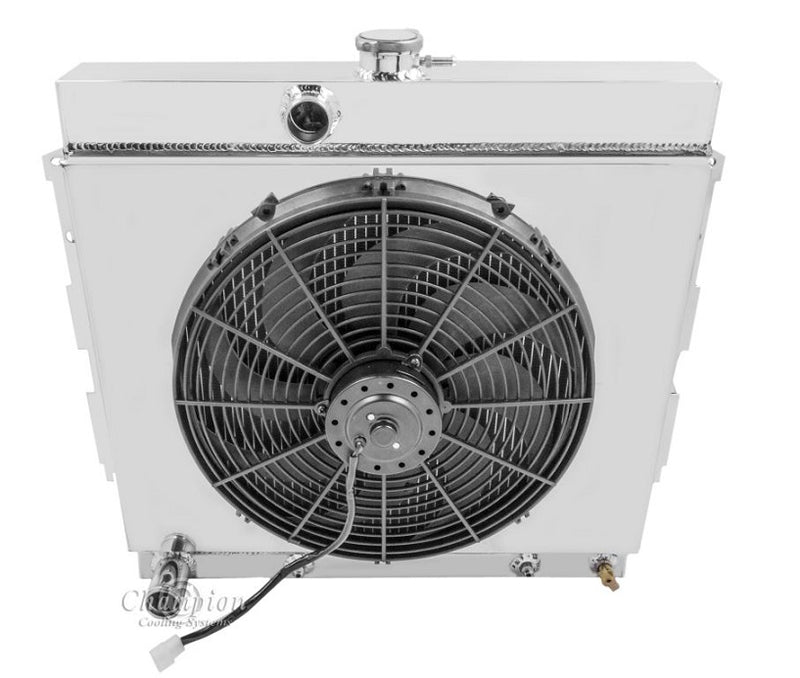

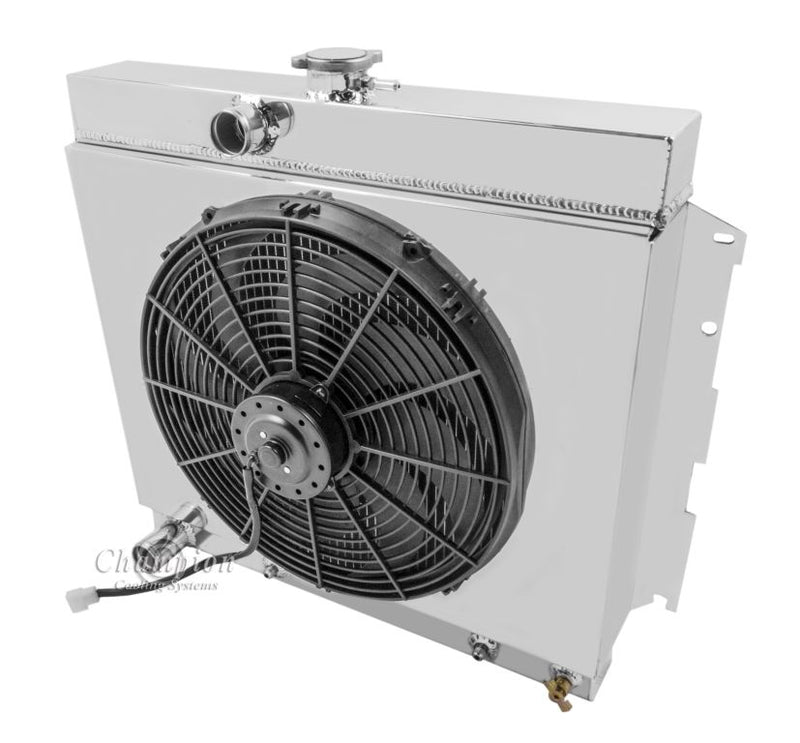

MC1635-1635FS16 4 Row Combo

All Aluminum Champion Radiator
Plus Ledfoot Racing Shroud and 16" Pro- Series Fan
4-Row Core | Cools up to 700hp

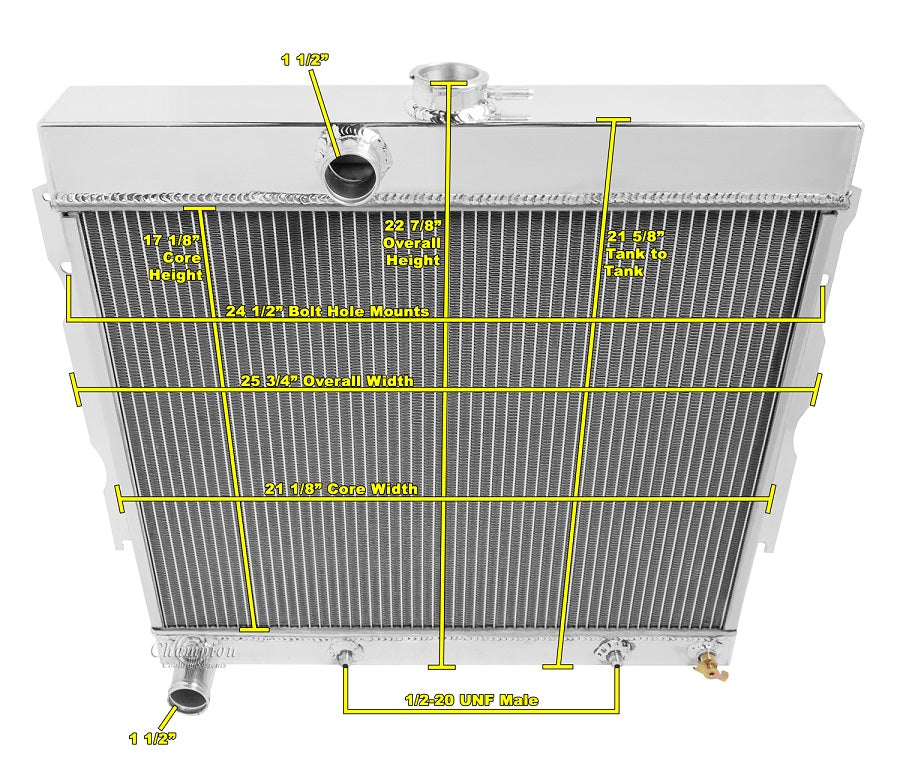

Radiator Dimensions:
Total: 21.63" tall (22.87" with cap) x 26" wide (with brackets)
Core: 17.13" tall x 22" wide x 2.75" thick
Inlet: 1.5" driver side; off center
Outlet: 1.5" driver side
Tanks: 3.5" thick
Tubes: 0.63" thick
Total Thickness: 7.5"

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
