MC162-162FS16 4 Row Combo

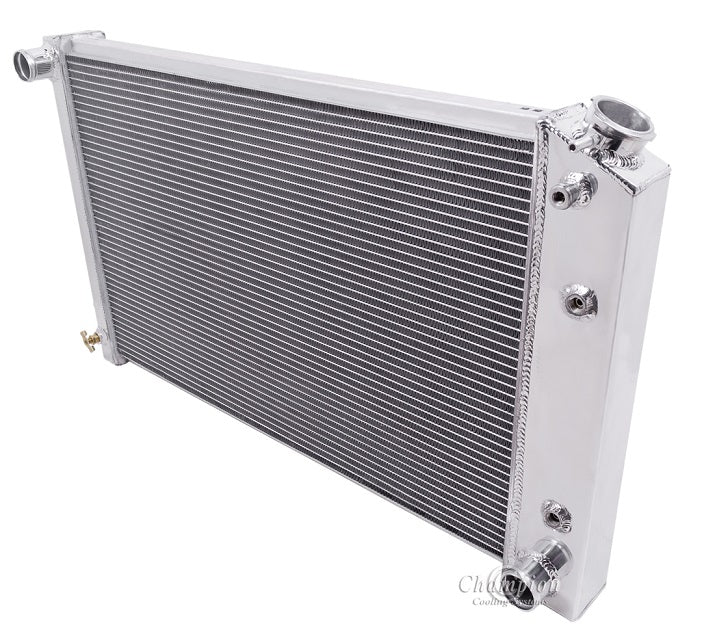

Champion All Aluminum Radiator PLUS

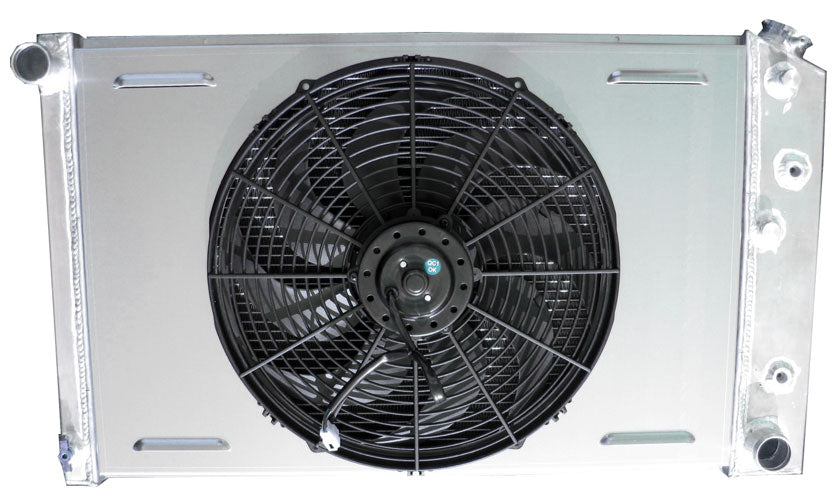

Aluminum Shroud & 16" Pro-Series Fan
4-Row Core | 800hp Rating

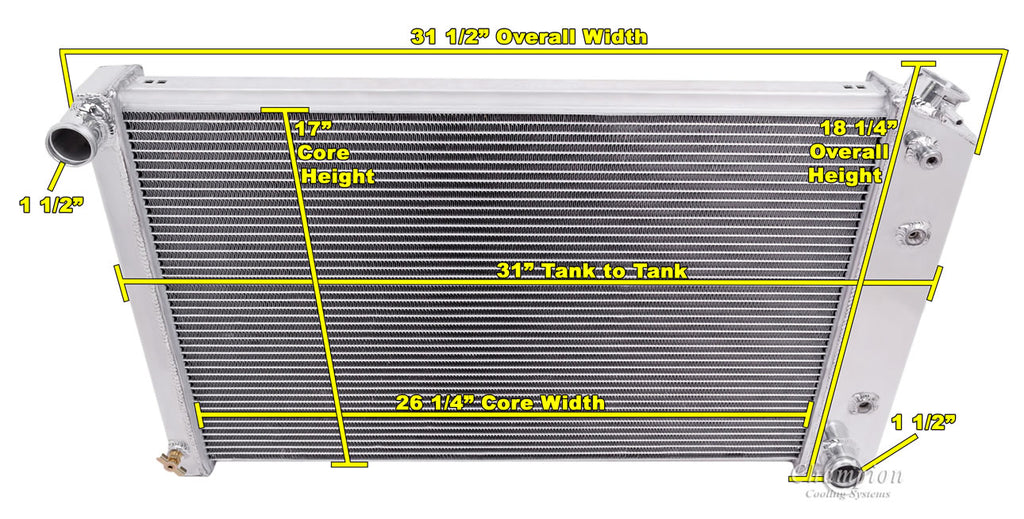

MC162 Radiator Dimensions:
Total: 18.25" tall (19” incl cap) x 31.63" wide
Core: 17" tall x 26.25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3.2” thick
Tubes: 0.63" thick
Total Thickness: 7"

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
