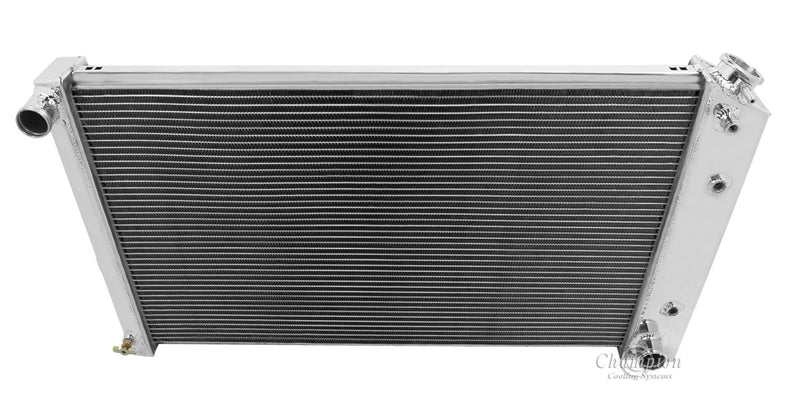

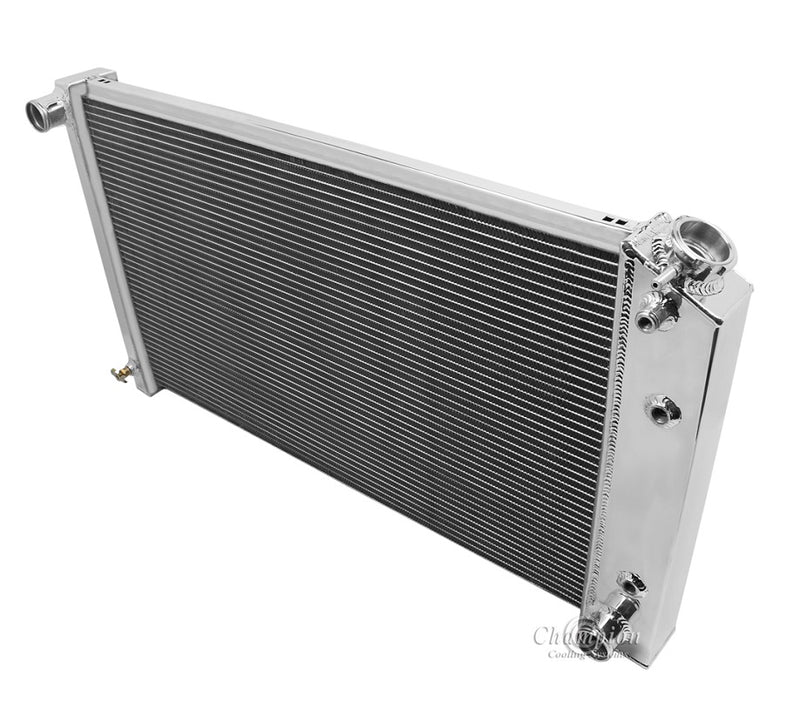

MC161 4-Row Aluminum Radiator

The MC161 4-row aluminum radiator is built by Champion for serious cooling performance, using a thick 4-row core rated to handle 1000+ horsepower applications with ease.

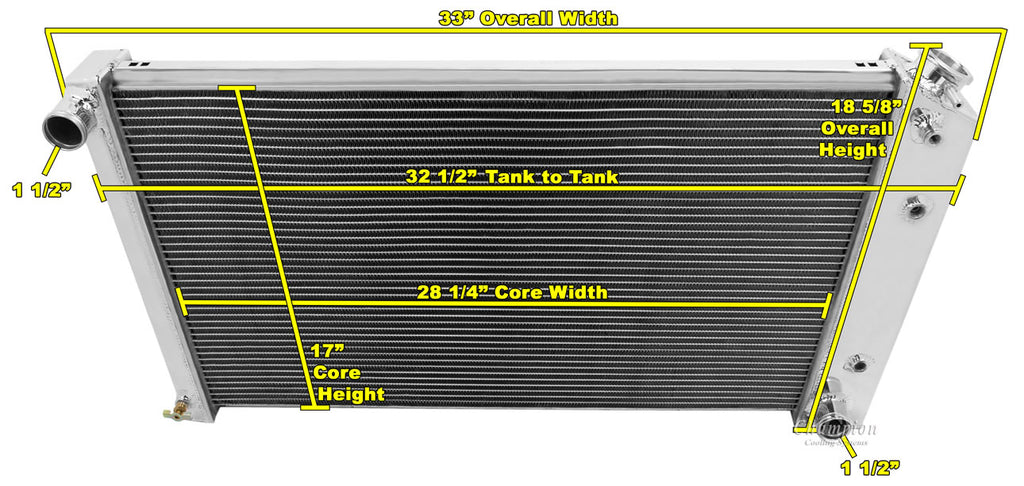

Radiator Dimensions:
Total: 18.63" tall x 33" wide
Core: 17" tall x 28.25" wide x 2.8" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum shroud is also available (sold separately)

When using electric fans:
Two 14" or one 16" Electric fan(s) recommended for this core size (sold separately)

As a universal aluminum radiator, the MC161 isn't tied to one specific make or model — its saddle-mounted design and standard inlet/outlet placement make it a great fit for a wide range of custom builds, street cars, and drag applications. Backed by Champion's quality construction and included accessories, the MC161 radiator gives you a bolt-in-ready cooling upgrade with everything you need to get it installed and back on the road.
