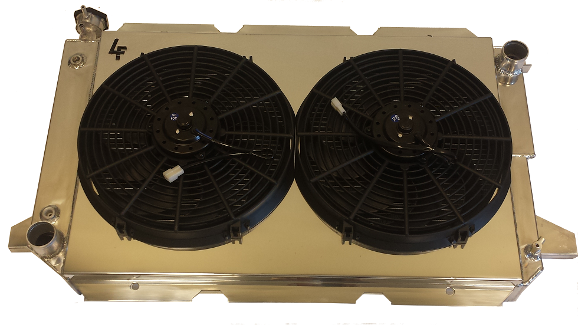

MC1451-1451FS14 4 Row Combo

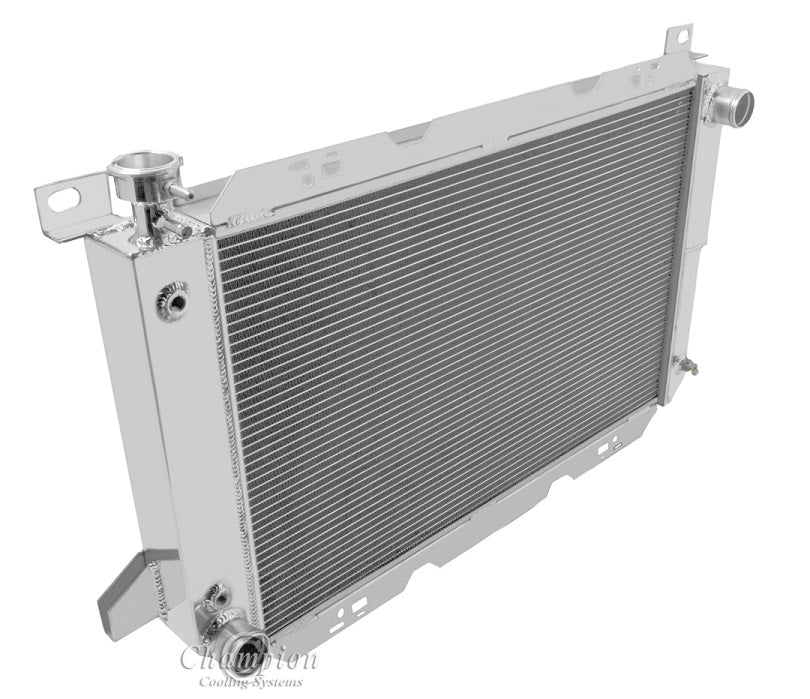

All Aluminum Champion Radiator Plus
Ledfoot Racing Shroud & (2) Pro-Series 14" Fans
Verify clearance for electric fan
Total thickness: 7" to fan motor
4-Row Core | Cools up to 850hp

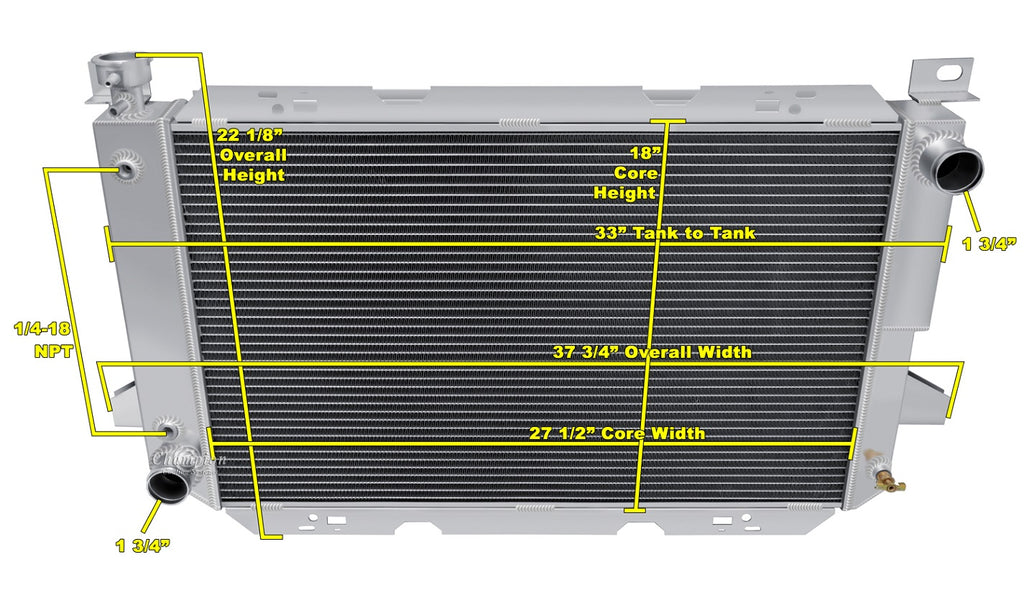

Radiator Dimensions:
Total: 22.25" tall (with cap) x 37.25" wide
Core: 18" tall x 28.13" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6.5" (5.5" between fan motors)

13 lb. Radiator cap included
Transmission Cooler included (1/4-18NPT)
