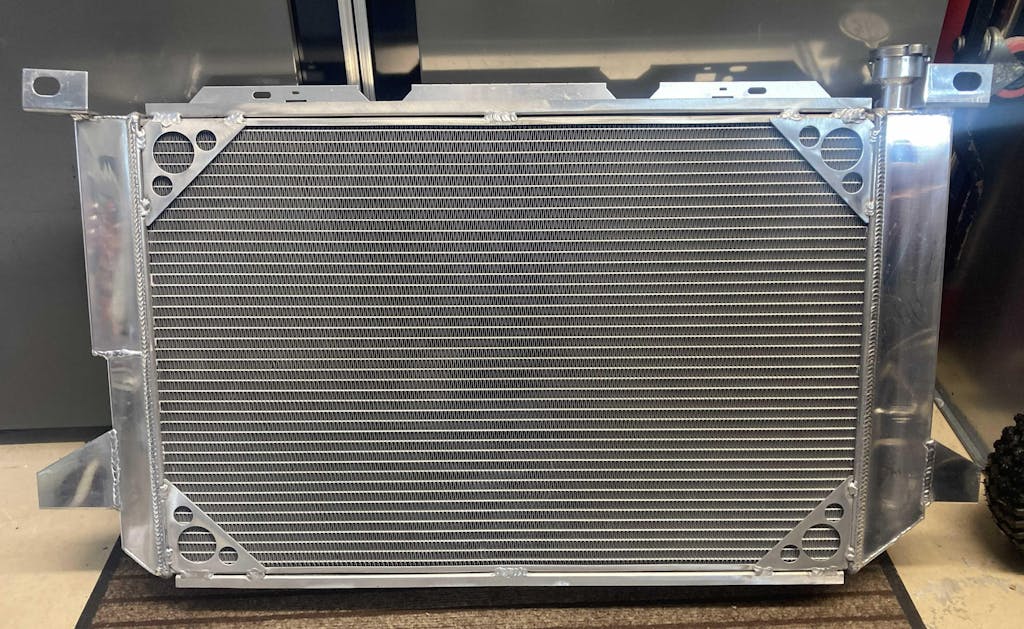

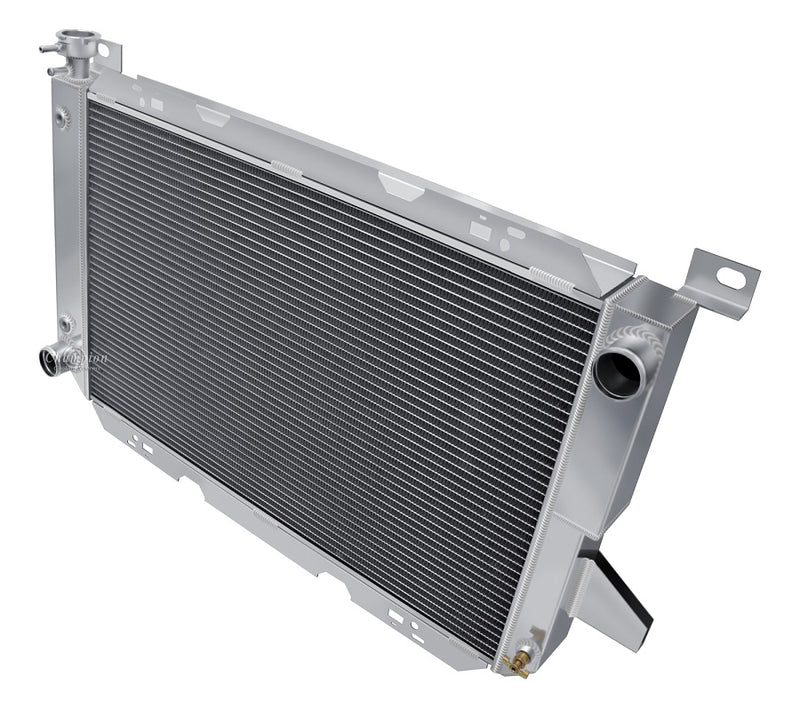

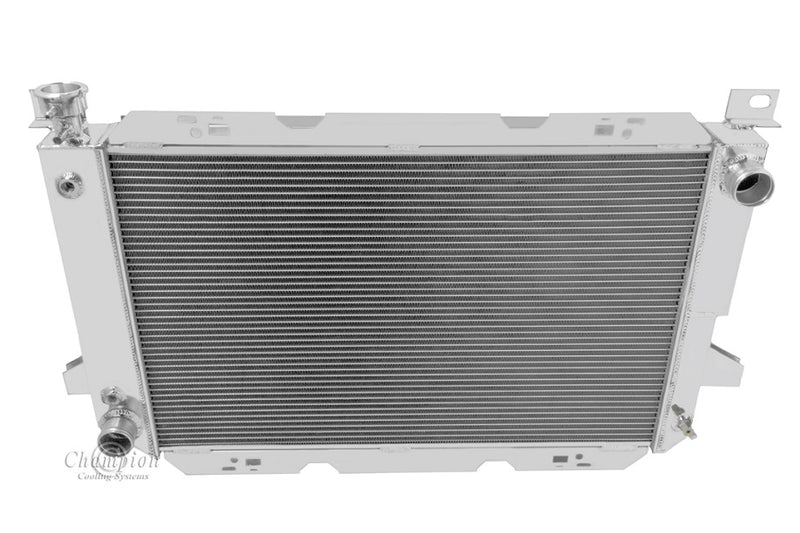

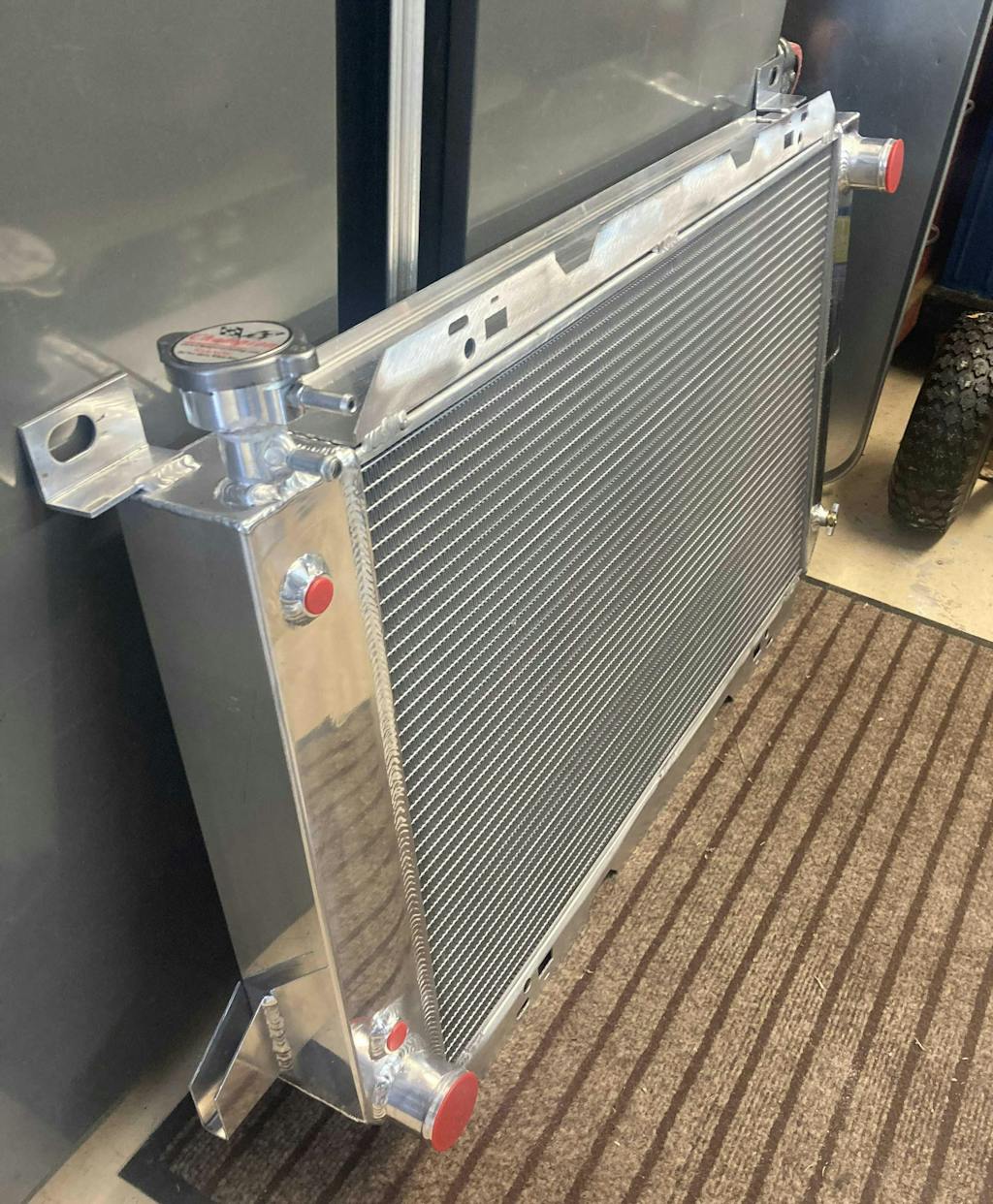

MC1451 4 Row

All Aluminum Champion Radiator
4-Row Core | Polished Tanks | Cools up to 850hp

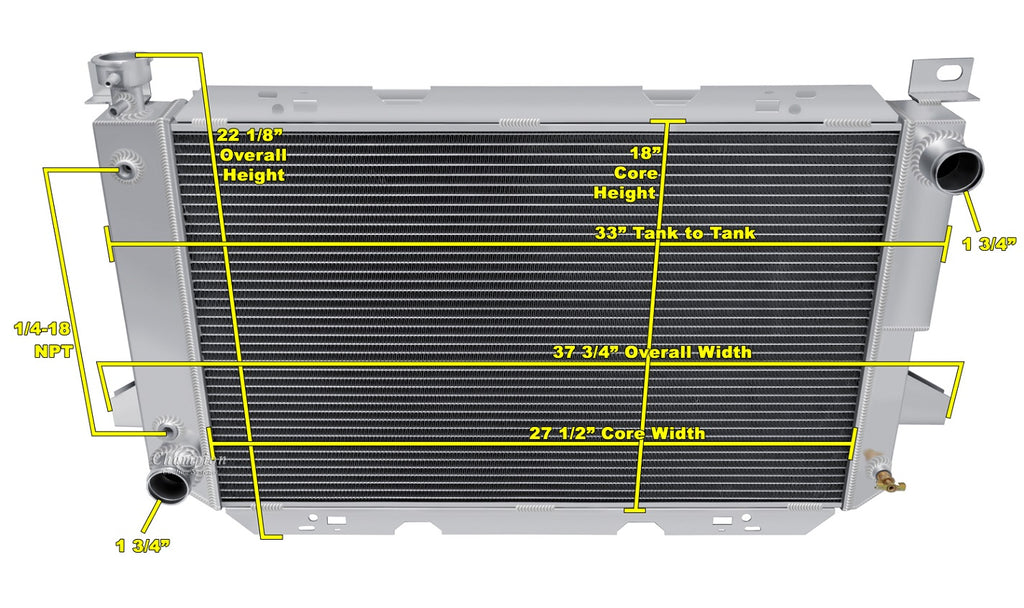

Radiator Dimensions:
Total: 22.25" tall (with cap) x 37.25" wide
Core: 18.38 tall x 27.5 wide x 2.8" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 3.25" thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler Included (1/4-18NPT)

When using electric fans:
One 16" or two 14" Electric fans recommended for this core size
Aluminum Fan Shroud is also available (sold separately)
