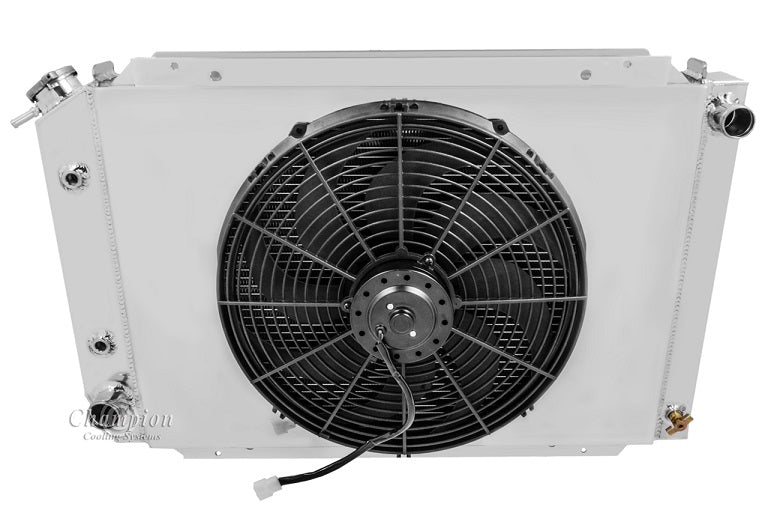

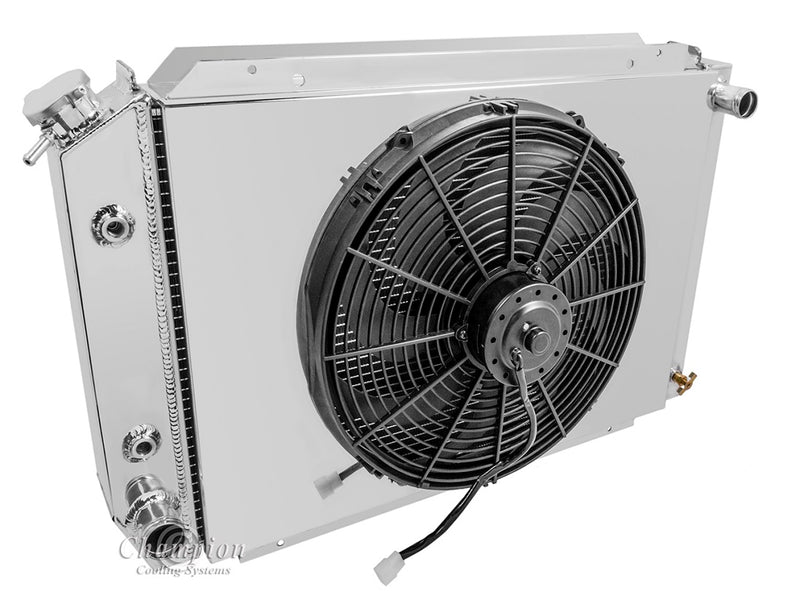

MC138-138FS16C 4 Row Combo

Champion All Aluminum Radiator Plus
Aluminum Shroud & Pro-Series 16" Fan
Verify clearance for electric fan
4-Row Core: Polished Tanks | 750hp Rating

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.75" wide
Core: 16.75" tall x 24.5" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6.75"

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)
