Description

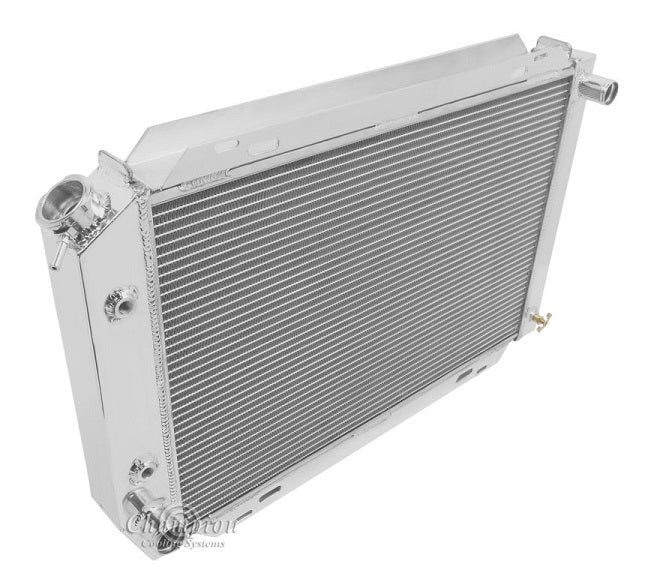

Champion All Aluminum Radiator
Plus Ledfoot Racing Shroud & 2-11" SPAL 1500 Fans
4-Row Core: Polished Tanks | 750hp Rating

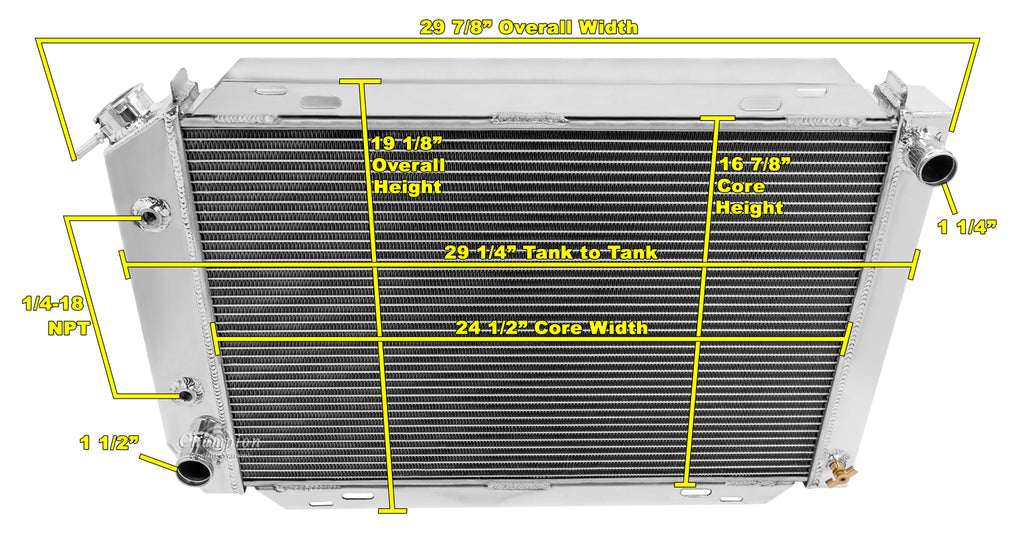

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.75" wide
Core: 16.75" tall x 24.5" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.63" thick
Total Thickness: 6.5" (5.5" between fan motors)
13 lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)
Modifications may be needed to mount
this thicker radiator
