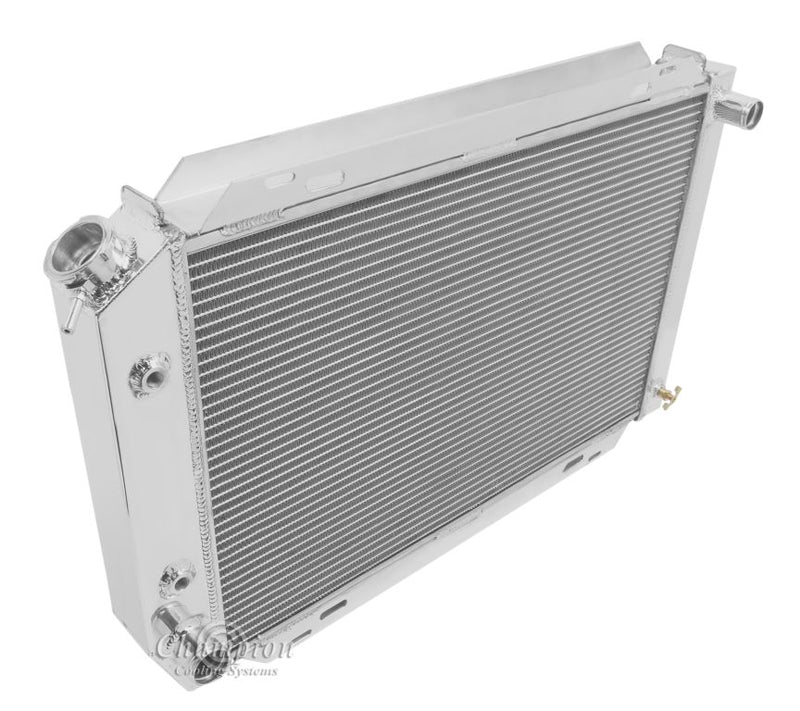

MC138 4 Row

Champion All Aluminum Radiator
4-Row Core: Polished Tanks | 750hp Rating

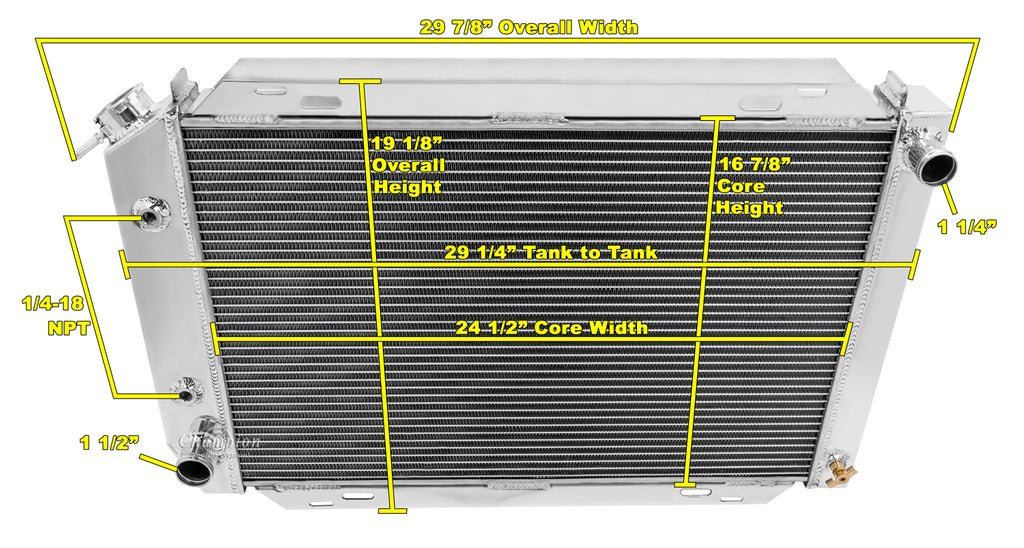

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.75" wide
Core: 16.75" tall x 24.5" wide x 2.75" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 3.18" thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler included (1/4-18 NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" or Two 12" Electric fans recommended for this core size (sold separately)
