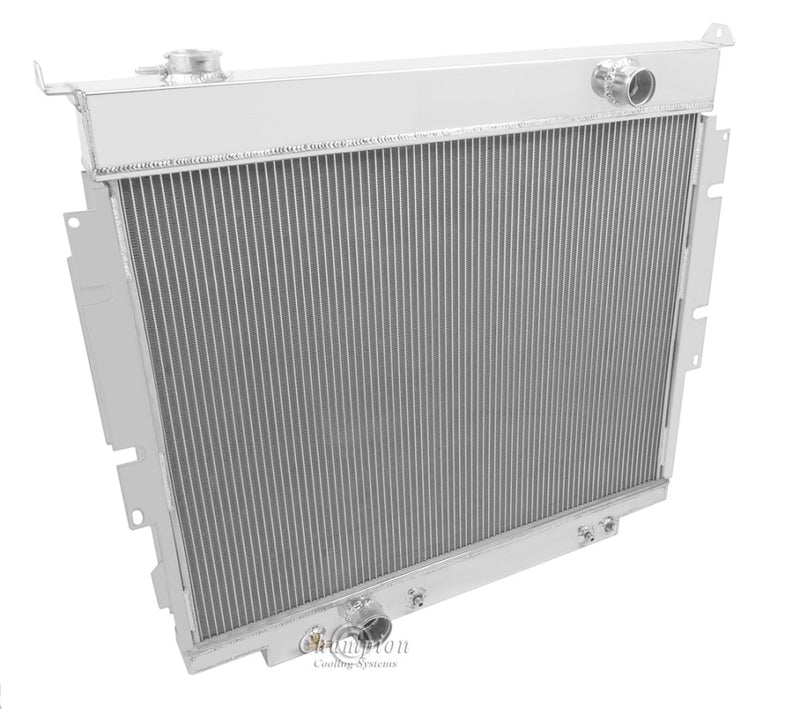

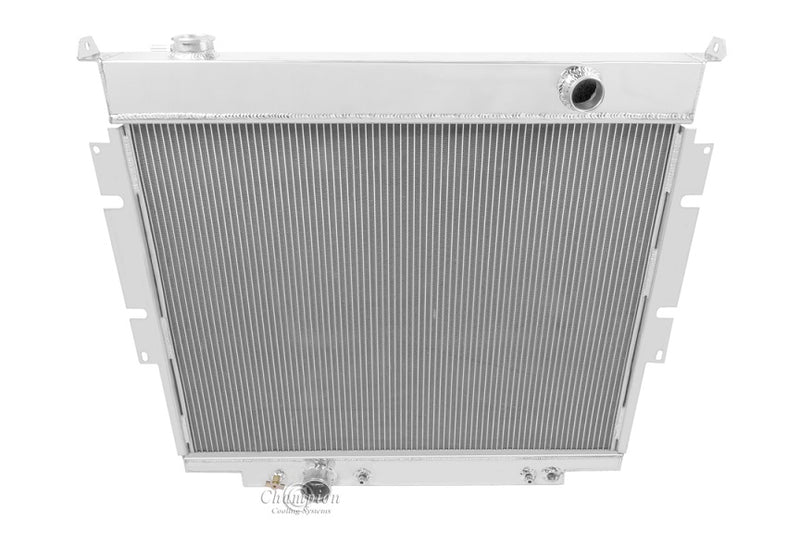

MC1165 Row

All Aluminum Champion Radiator
4-Row Core | Cools up to 900hp
Diesel Only

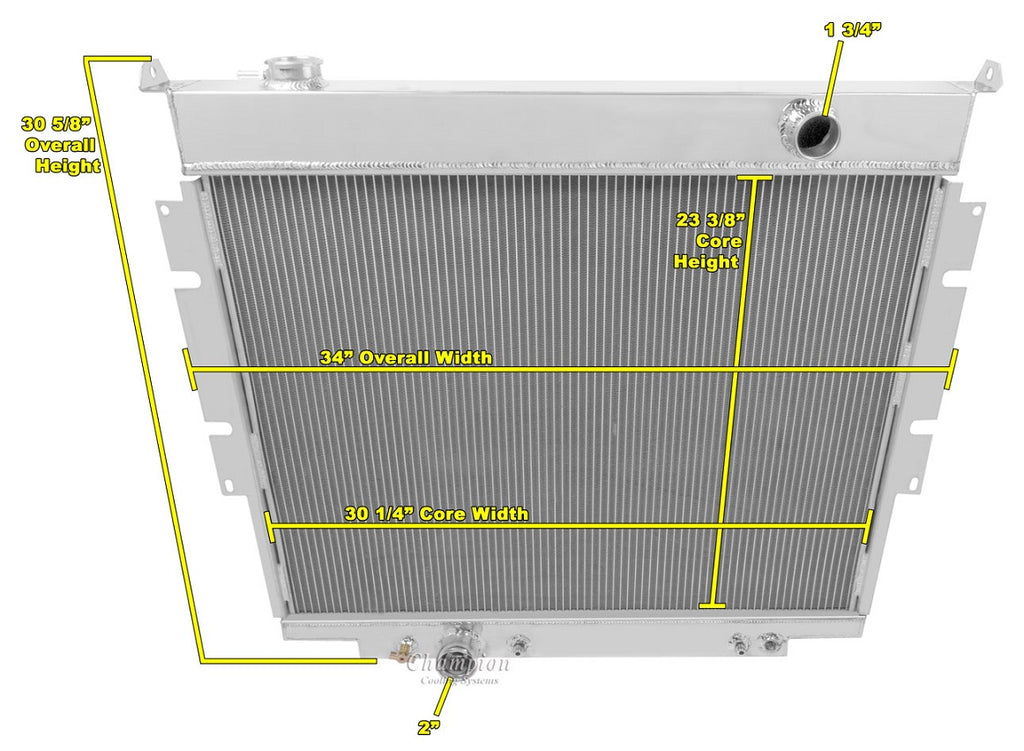

Radiator Dimensions:
Total: 30.88" tall (with cap) x 33.75" wide (including brackets)
Core: 20.25" tall x 30.25" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 2" driver side
Tanks: 3.00" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27 npt)

When using electric fans:
Two 16" Electric fans recommended for this core size (sold separately)

Shipping is higher for this oversized item
