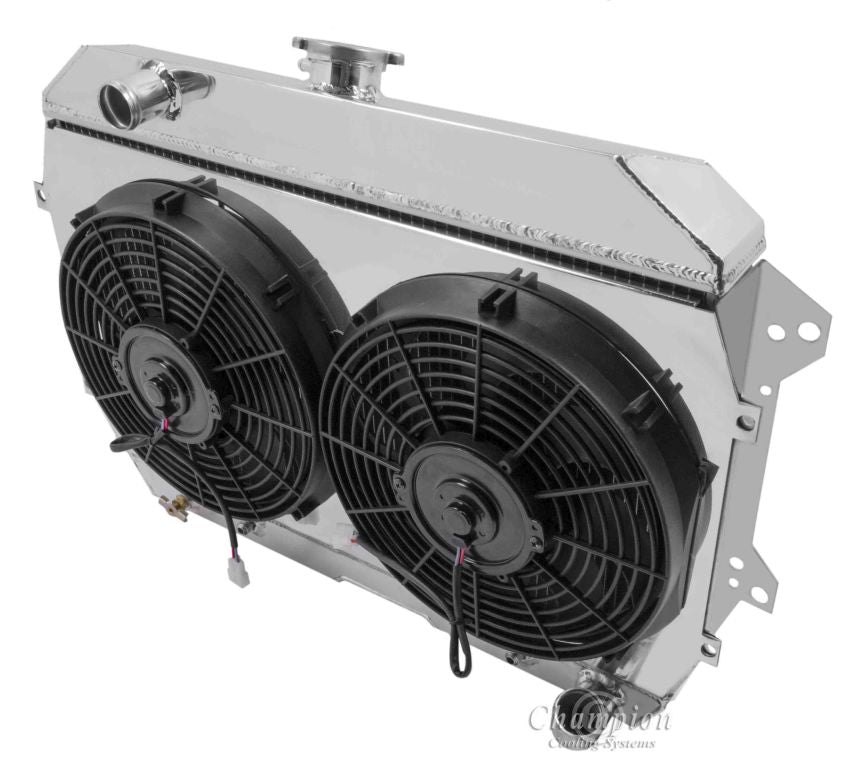

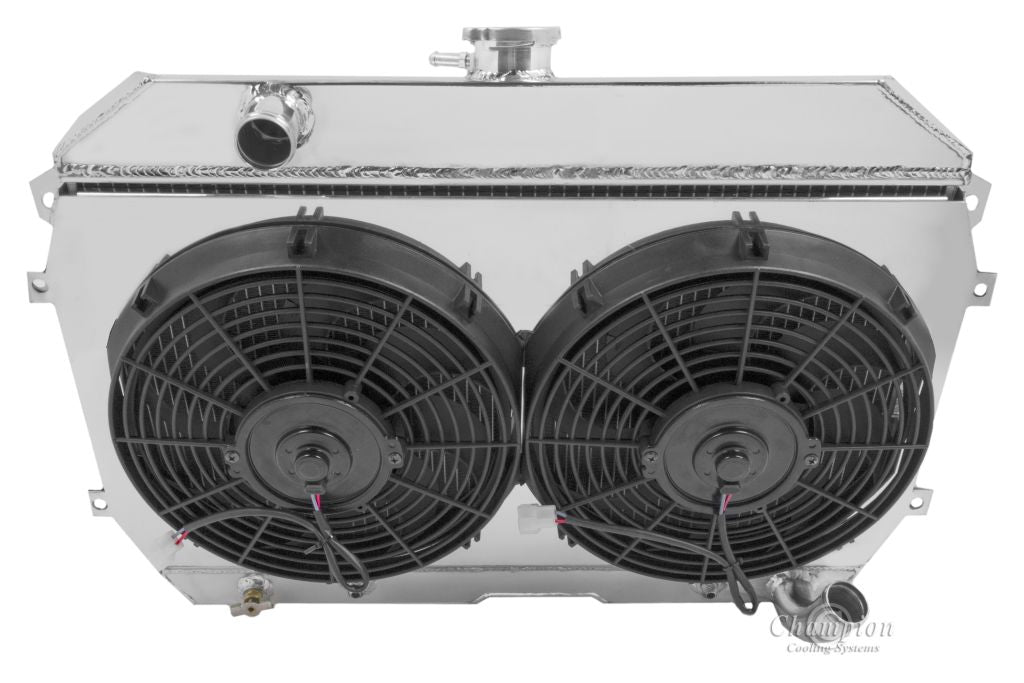

MC110-110FS11SP 4 Row

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-11" SPAL Medium Profile fans
MC110 Radiator Dimensions:
Total: 18.5" (19.75" with cap) x 27.25" (including brackets)
Core: 13.75" tall x 23.25" wide x 2.75" thick
Inlet: 1.25" driver side
Outlet: 1.25" passenger side
Tanks: 3" thick
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.44
13 lb. Radiator Cap Included
Transmission Cooler Included (metric 14-1.5)

Bracket Mounted

Note: Please make sure you have room for this
thick set up. 6 5/8" thick to the back of the fans.
