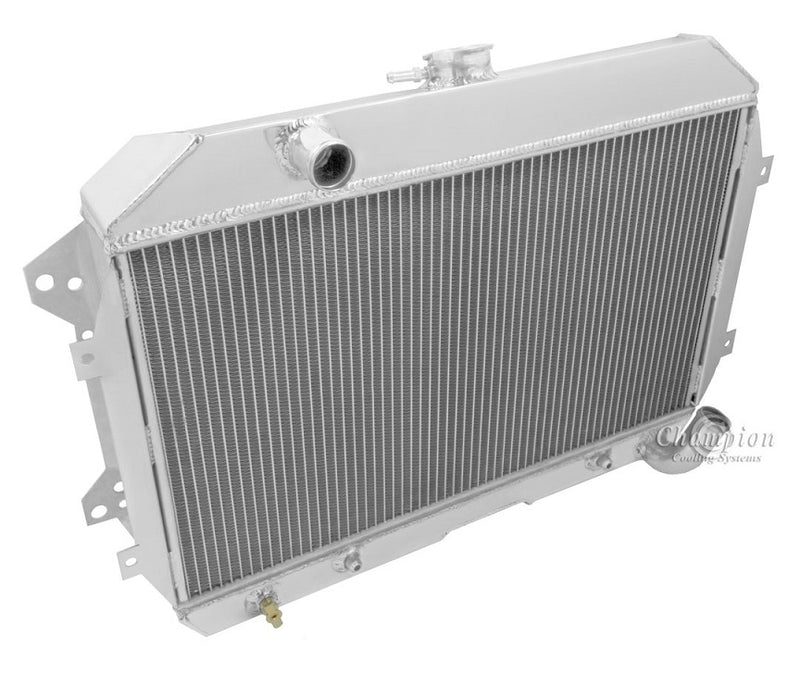

MC110 4 Row

Champion All Aluminum Radiator
4-Row Core | Cools up to 650hp

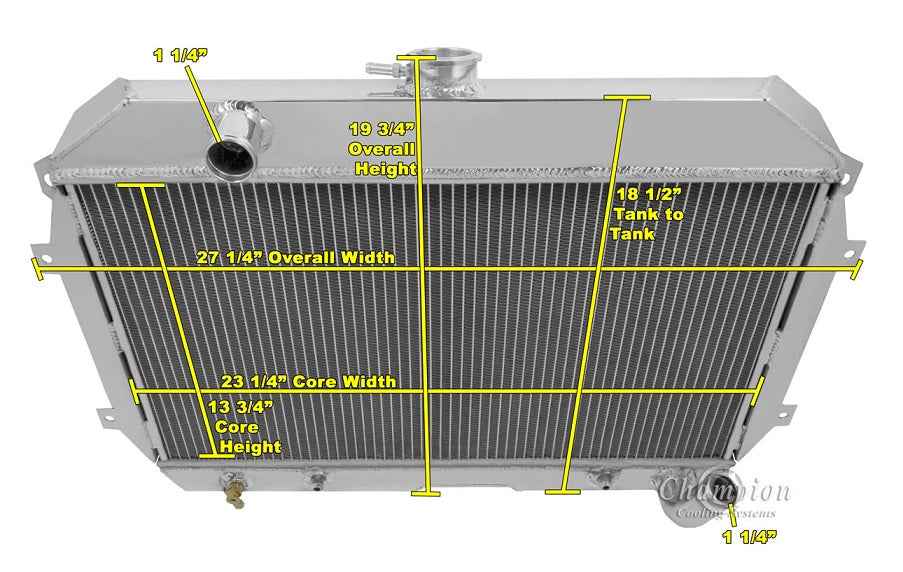

MC110 Radiator Dimensions:
Total: 18.5" (19.75" with cap) x 27.25" (including brackets)
Core: 13.75" tall x 23.25" wide x 2.8" thick
Inlet: 1.25" driver side
Outlet: 1.25" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler Included (metric 14-1.5)
Aluminum Shroud is also available (sold separately)

Bracket Mounted

When using electric fans (sold separately):
Two 12" Electric fans recommended for this core size
