Description

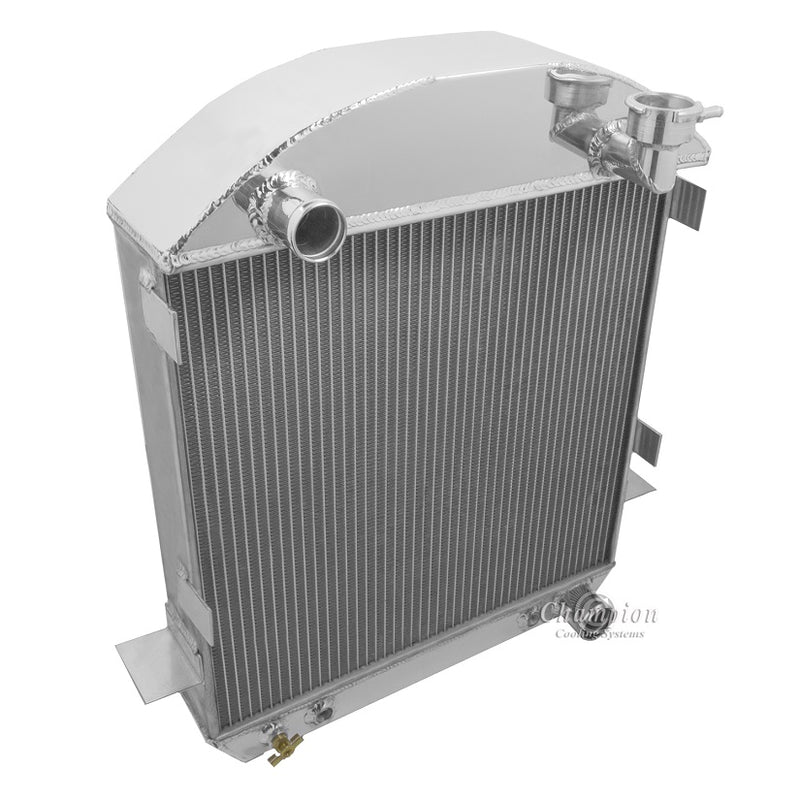

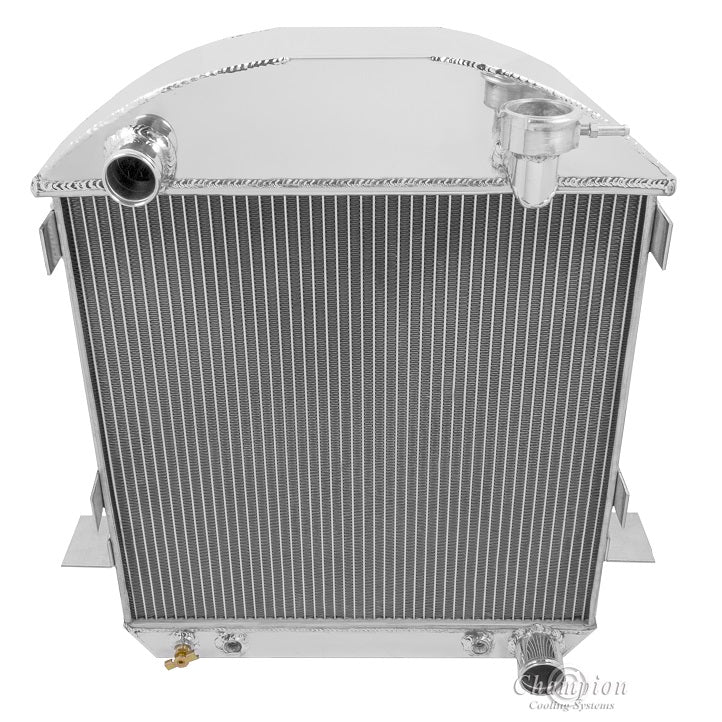

All Aluminum Champion Radiator
4 Row Core | Cools up to 950hp

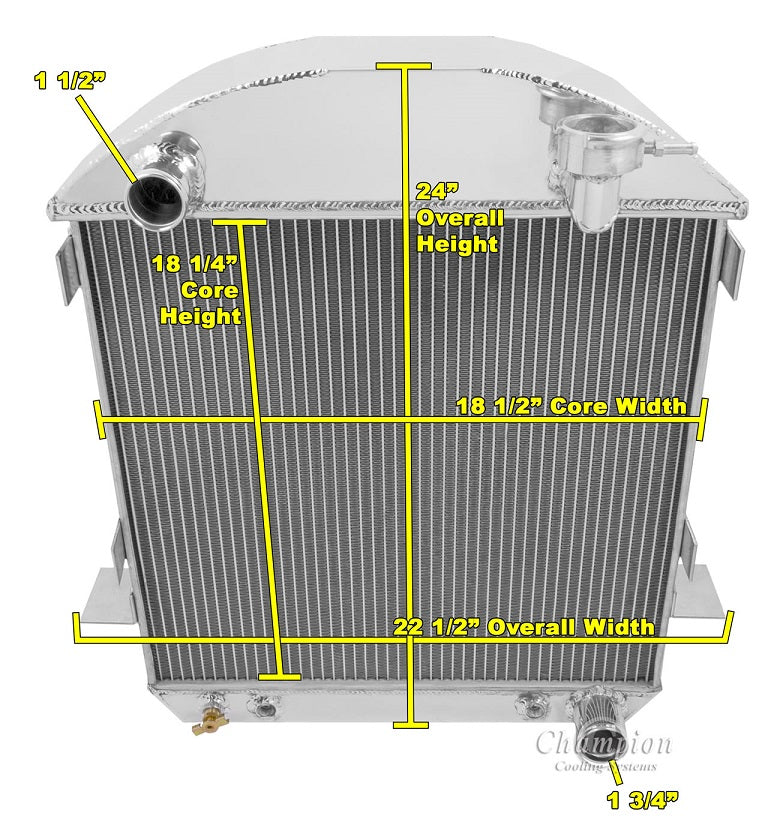

Radiator Dimensions:
Total: 23.75" tall x 22.5" wide (with brackets)
Core: 18" tall x 18.5" wide x 2.75" Thick
Inlet: 1.5" driver
Outlet: 1.75" passenger
Tanks: 4.25" thick (top) 3.25" thick (bottom)
Tubes: 0.63" thick
Fits the 23-27 Shell
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare) Note: Chevy / Mopar Inlet and outlet set up
When using electric fans:
One 16" fan recommended for this core size (sold separately)
4 Row Core | Cools up to 950hp
Radiator Dimensions:
Total: 23.75" tall x 22.5" wide (with brackets)
Core: 18" tall x 18.5" wide x 2.75" Thick
Inlet: 1.5" driver
Outlet: 1.75" passenger
Tanks: 4.25" thick (top) 3.25" thick (bottom)
Tubes: 0.63" thick
Fits the 23-27 Shell
Bracket Mounted
13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare) Note: Chevy / Mopar Inlet and outlet set up
When using electric fans:
One 16" fan recommended for this core size (sold separately)
Custom shroud for electric fan(s) available upon request:
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
