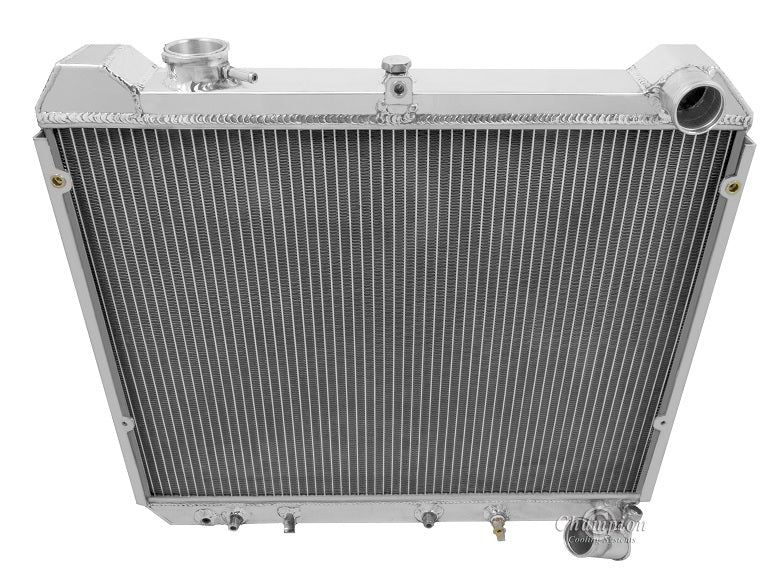

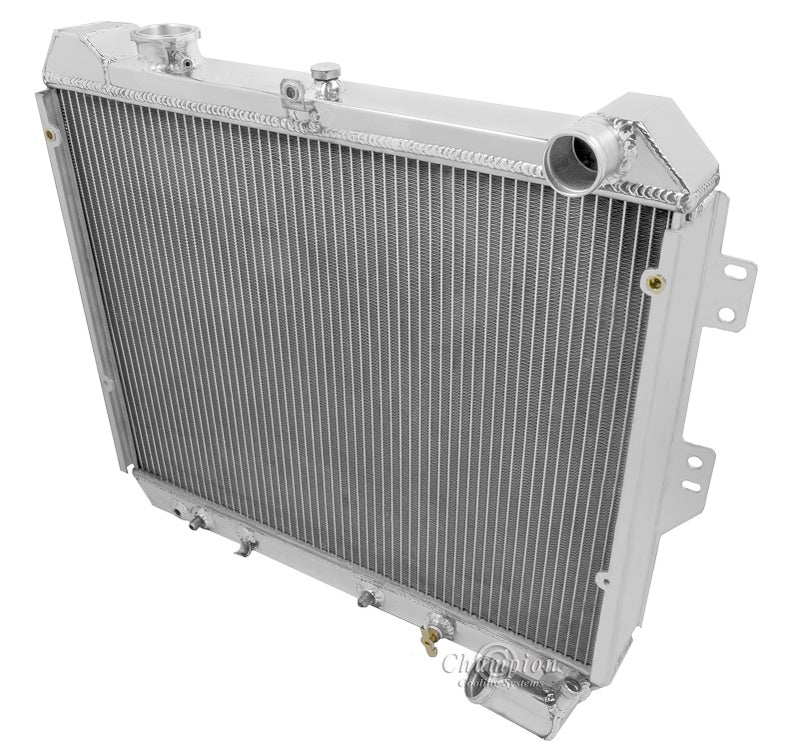

EC97 2 Row

All Aluminum Champion Radiator
2-Row Core | Cools up to 500hp

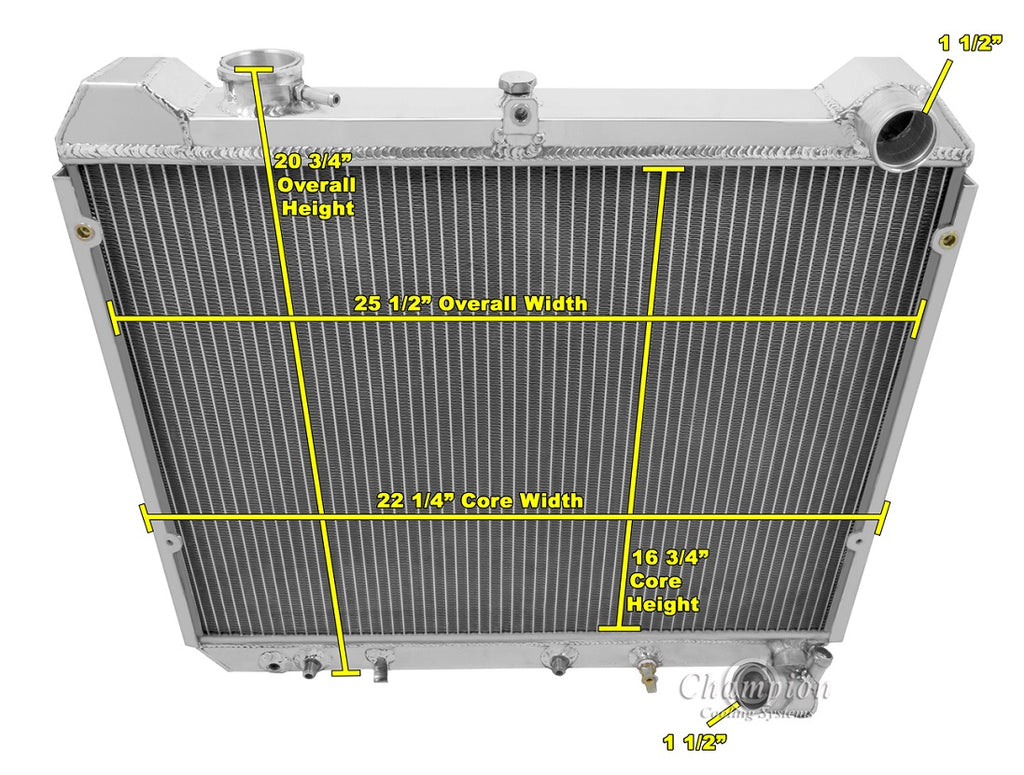

EC97 Radiator Dimensions:
Total: 20.75" with cap x 25.5" (including brackets)
Core: 17" tall x 22.5" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.5)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
