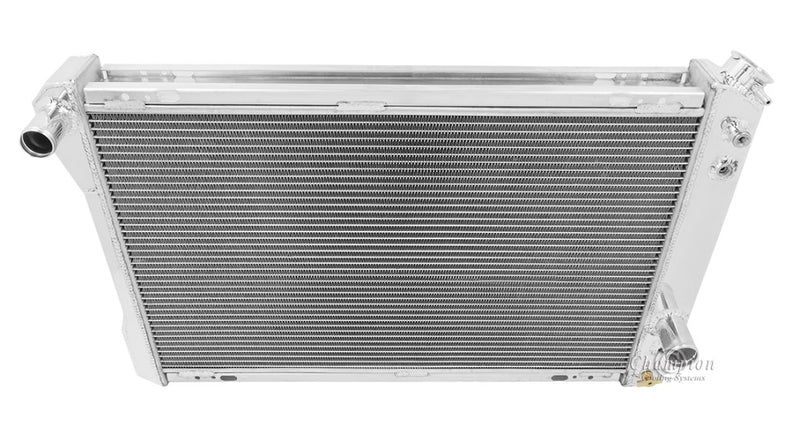

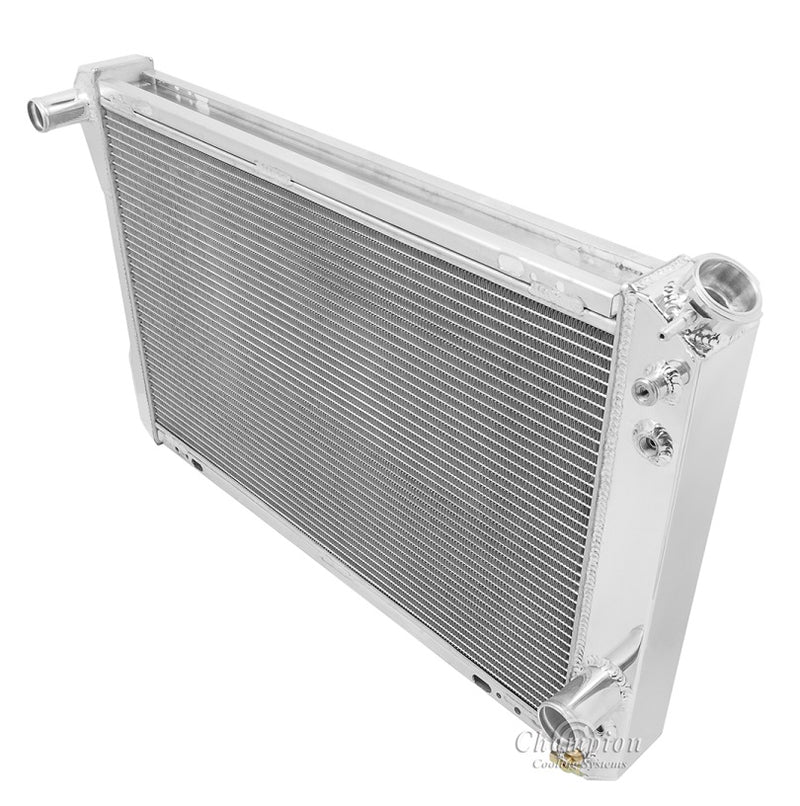

EC951 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp

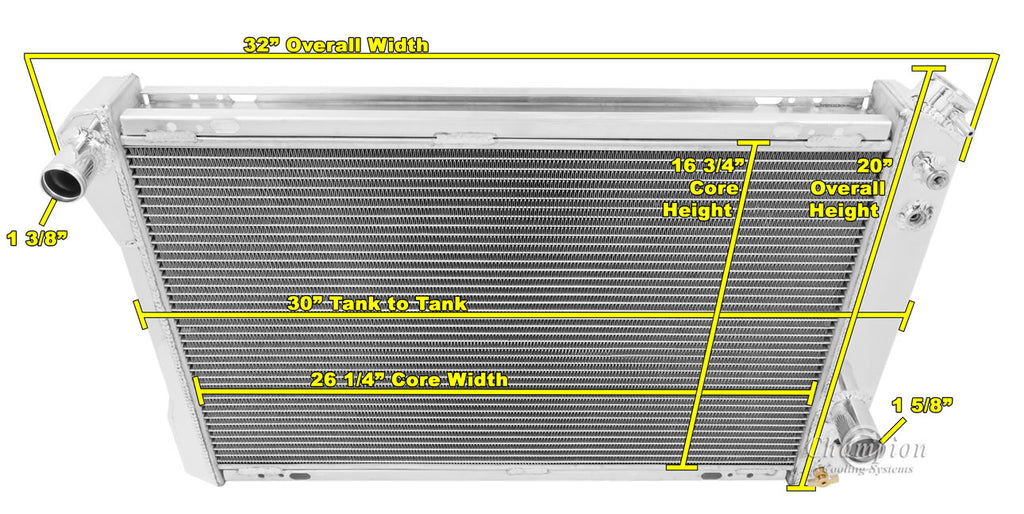

EC951 Radiator Dimensions:
Total: 18.88" wide (20 " with cap) x 32" wide
Core: 17.25" tall x 26.25" wide x 1.75 thick
Inlet: 1.5" driver side
Outlet: 1.63" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Aluminum Shroud for a 16" fan available (sold separately)

When using electric fans:
One 16" or Two 12" Electric fans recommended for this core size (sold separately)
