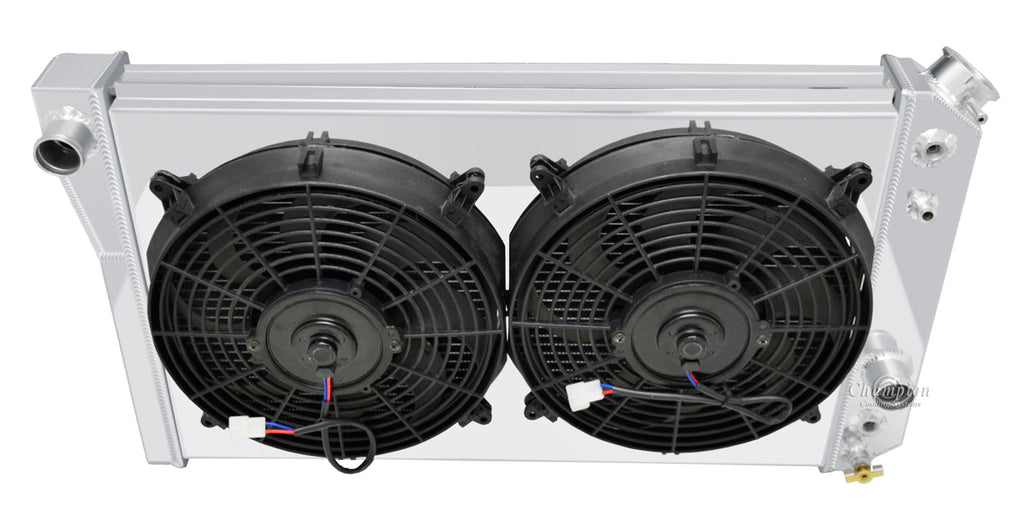

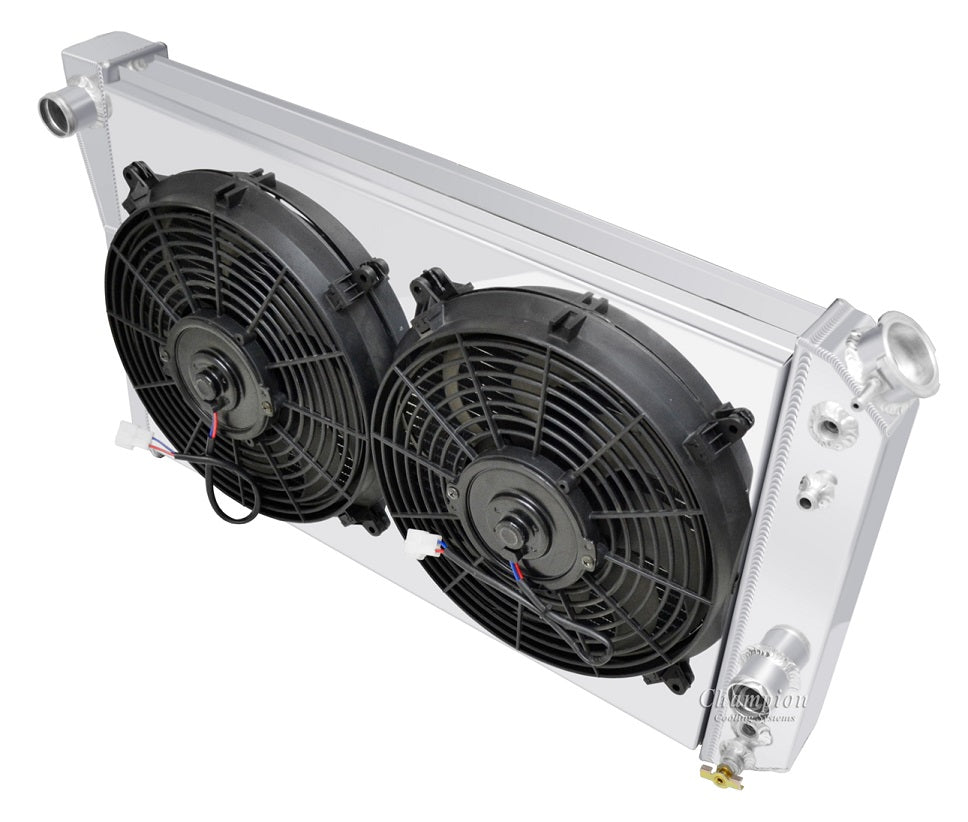

EC829-829FS11SP 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-11" SPAL Medium Profile fans
2-Row Core | Cools up to 450hp

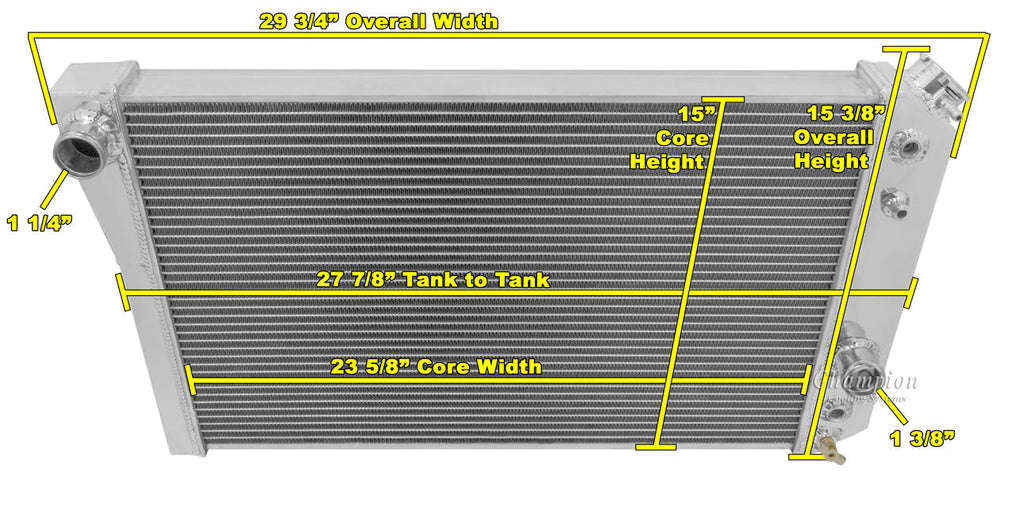

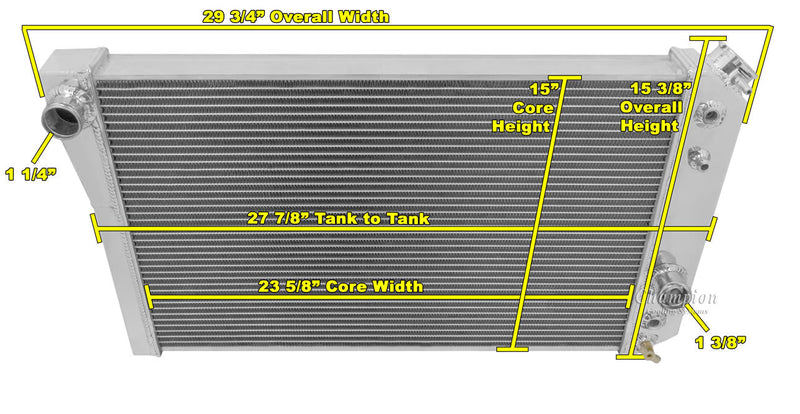

Radiator Dimensions:
Total: 16.38" tall x 29.75" wide
Core: 15" tall x 23.63" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.38" passenger side
Tank: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6.25 to back of fan 5.5" at center
Fan Thickness: 2.05

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
