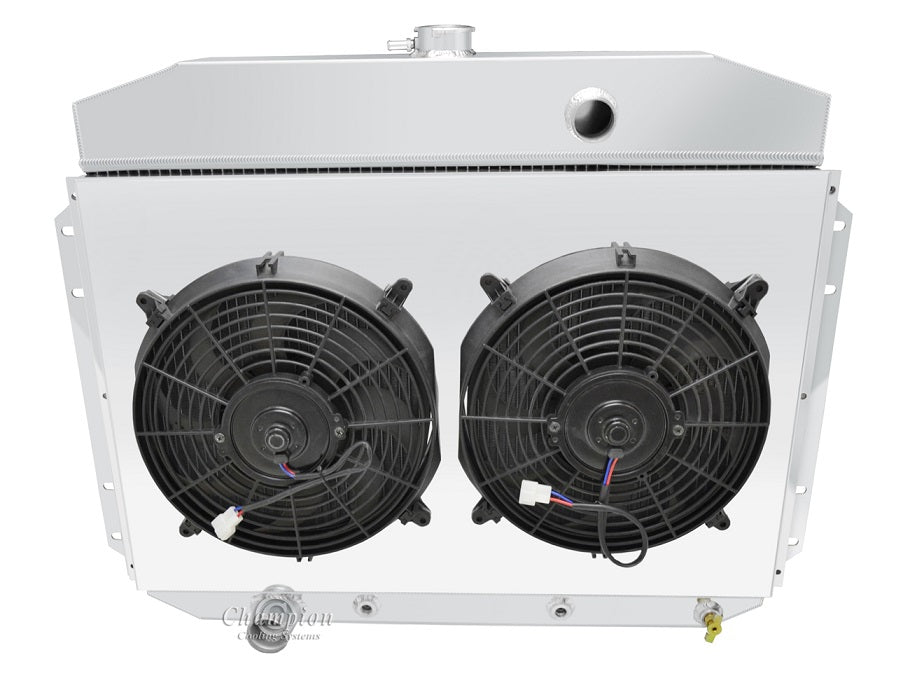

EC8164-8164FS12CSP 2 Row

Champion All Aluminum Radiator Plus
Shroud and Two SPAL-1522 12" Cooling fans
(Fans are slightly larger than shown in photo)
Ford V8's
2-Row Core | Cools up to 500hp

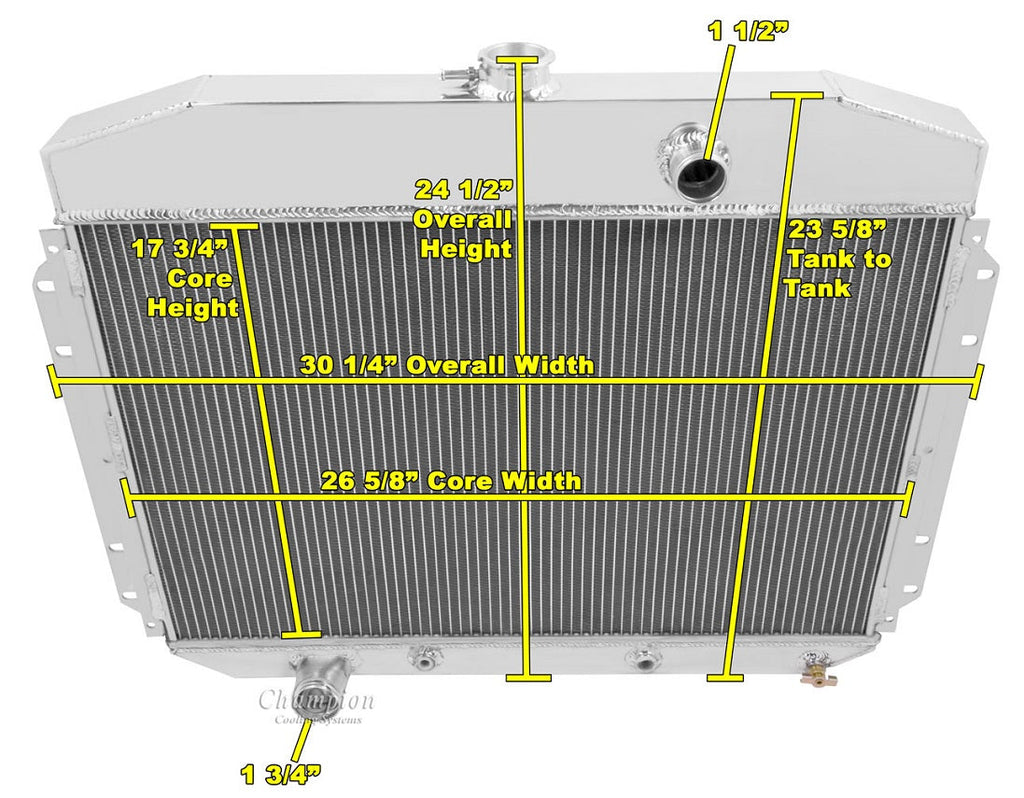

Radiator Dimensions:
Total: 24.5" tall (with cap) x 30.25" (including brackets)
Core: 17.75" tall x 26.63" wide x 1.63" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5” thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/8"-27 NPT)
