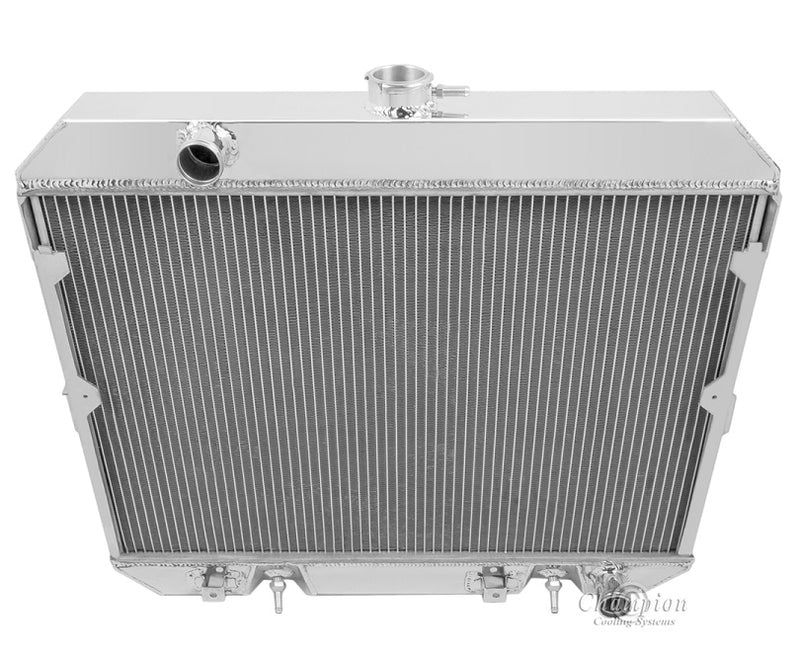

EC800 2 Row

All Aluminum Champion Radiator
2-Row Core | Cools up to 350hp

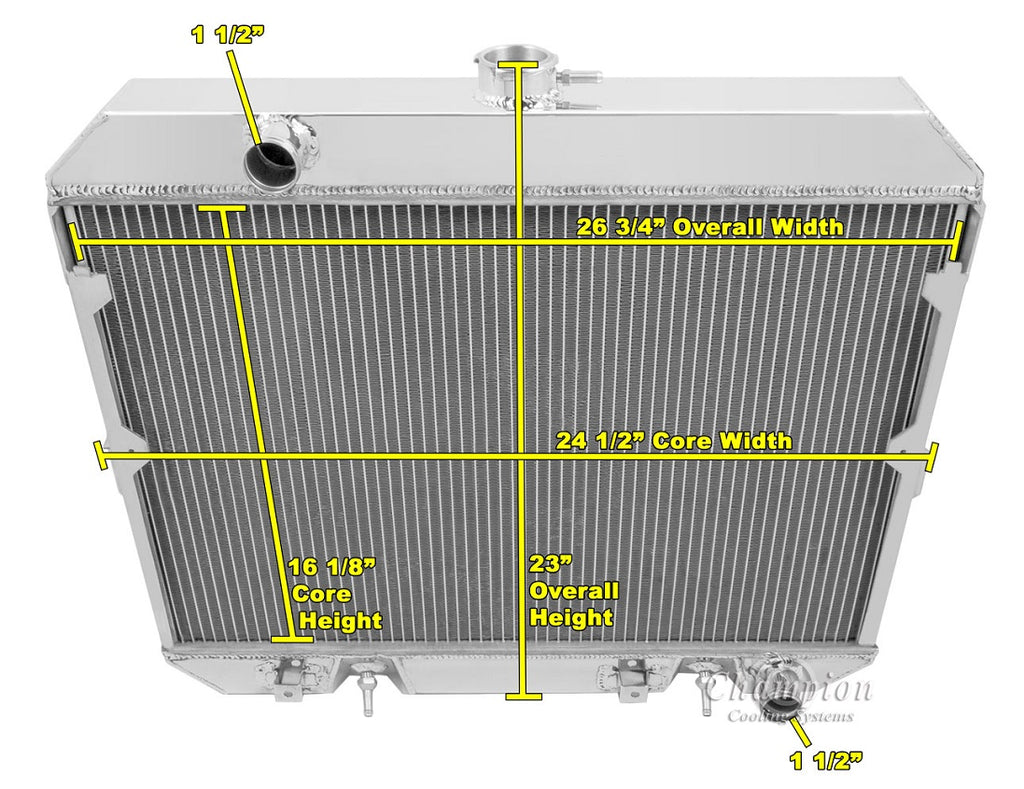

Radiator Dimensions:
Total: 23" (with cap) x 26.75" (including brackets)
Core: 16.125" tall x 24.5" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
