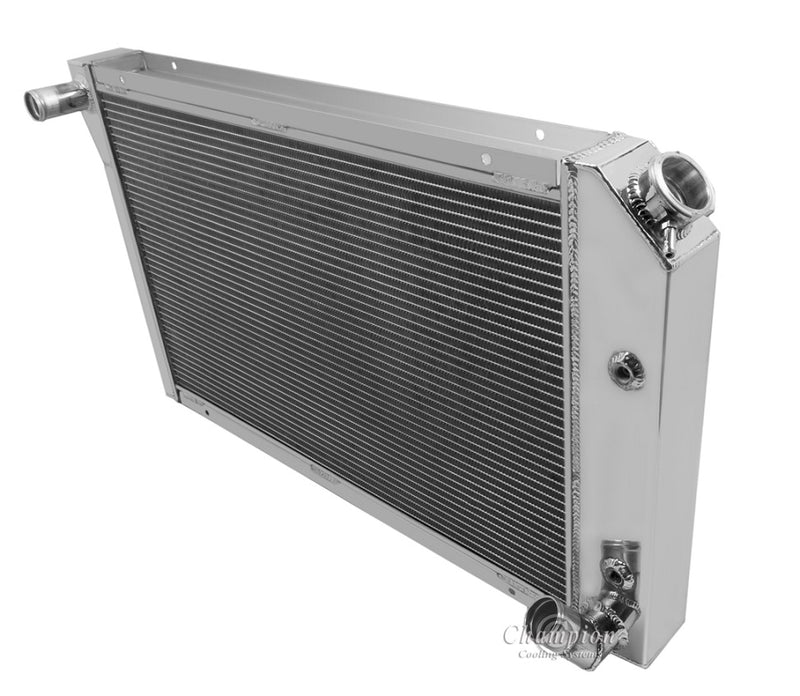

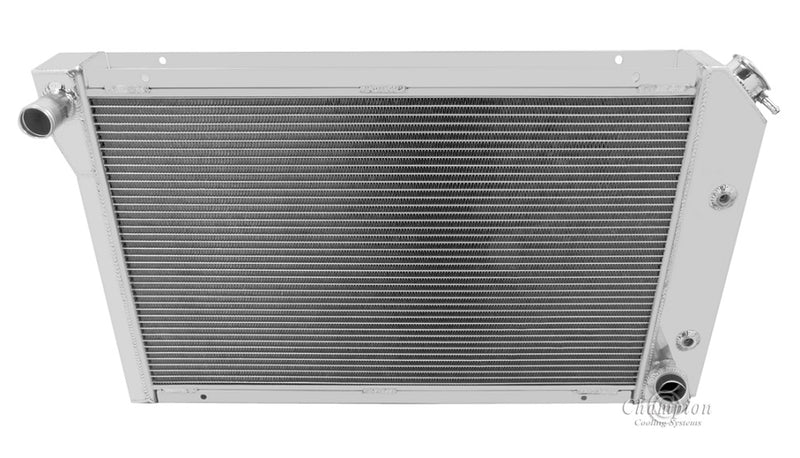

EC718 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

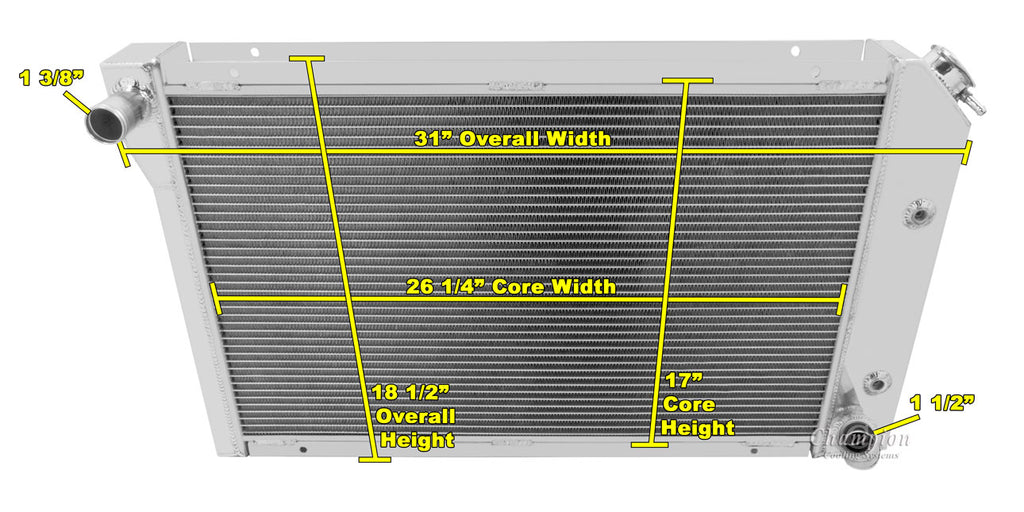

Radiator Dimensions:
Total: 18.75" tall x 32.5" wide
Core: 17" tall x 26.25" wide x 1.75" thick
Inlet: 1.38" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

13lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 STRAIGHT THREAD)

Saddle mounted

When using electric fans:
One 16" or two 12" Spal fans recommended for this core size (sold separately)
