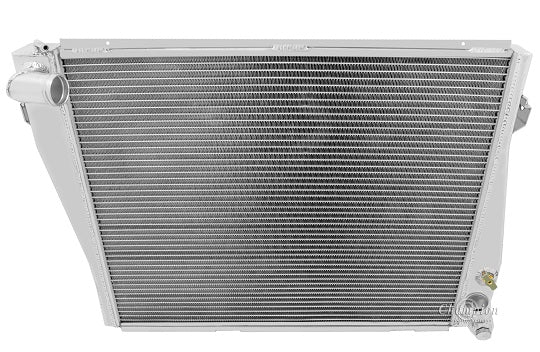

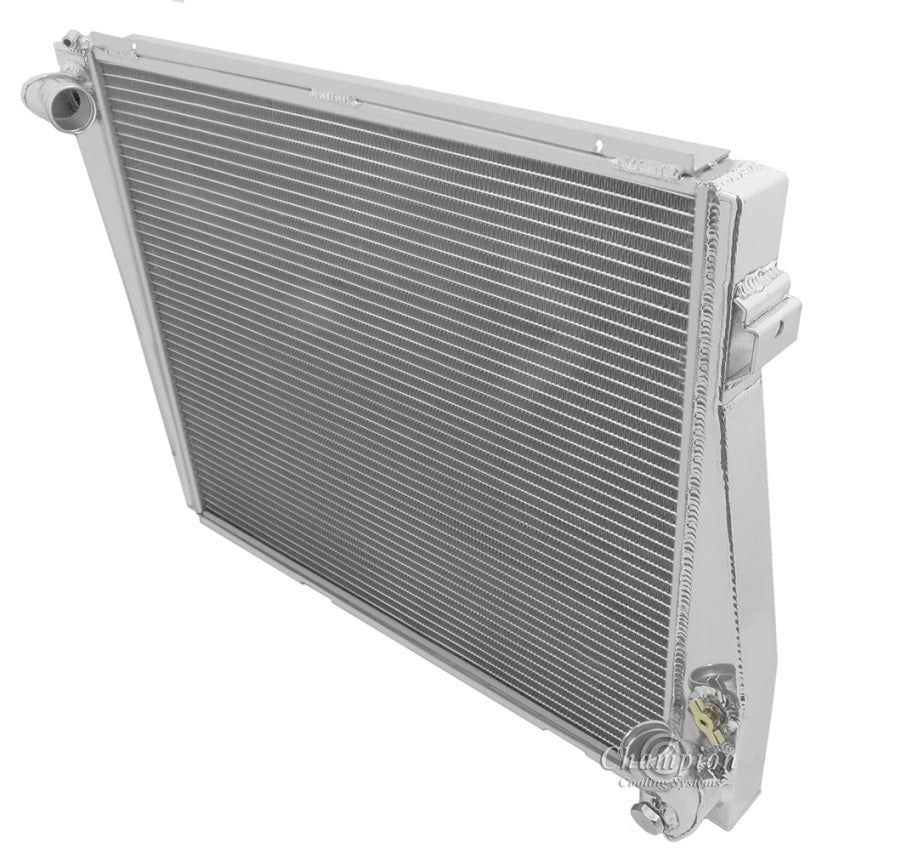

EC6974 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp

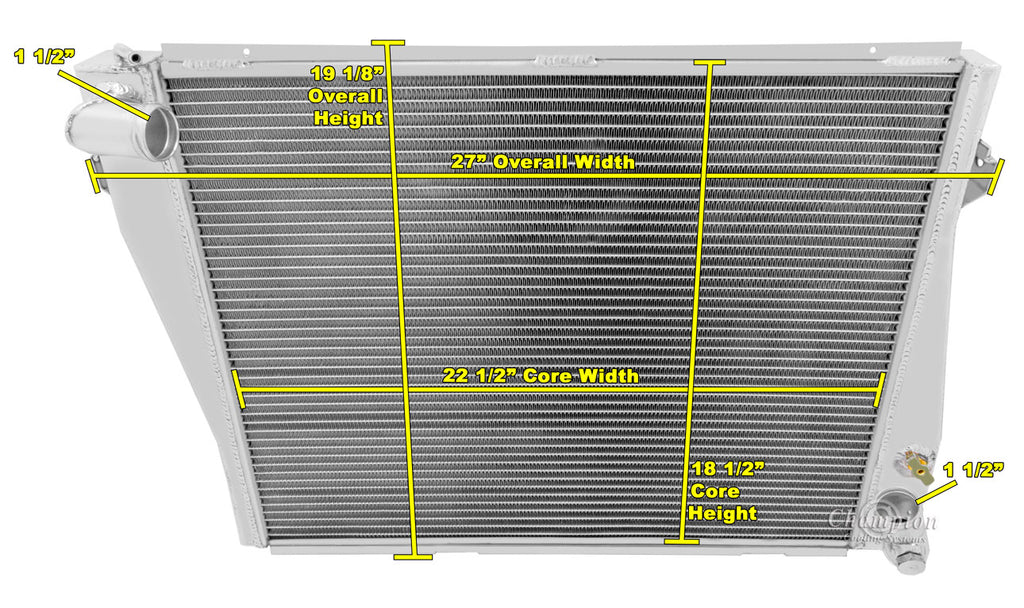

Radiator Dimensions:
Total: 19.13" tall x 27" wide
Core: 13.63" tall x 22.5" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tank: 1.75" thick
Tubes: 0.75" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT Included

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
