EC6571 2 Row

Please confirm width, if it is wider please refer to the CC7071

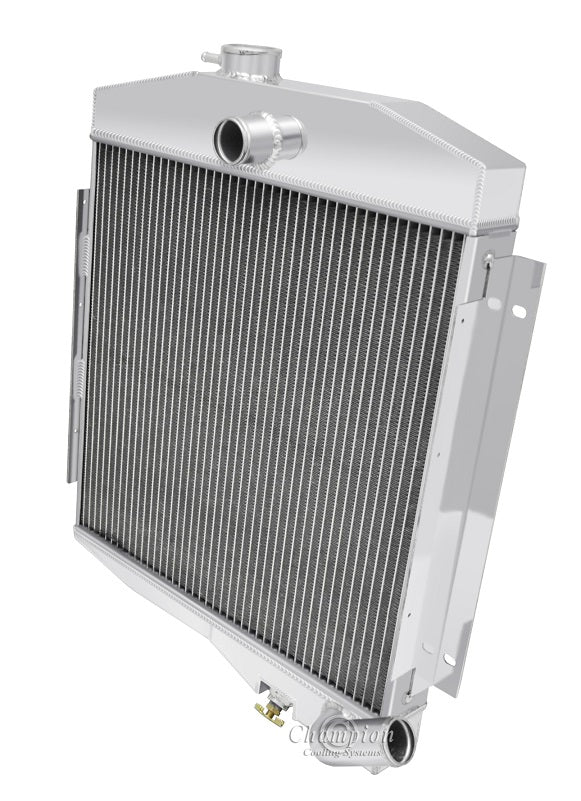

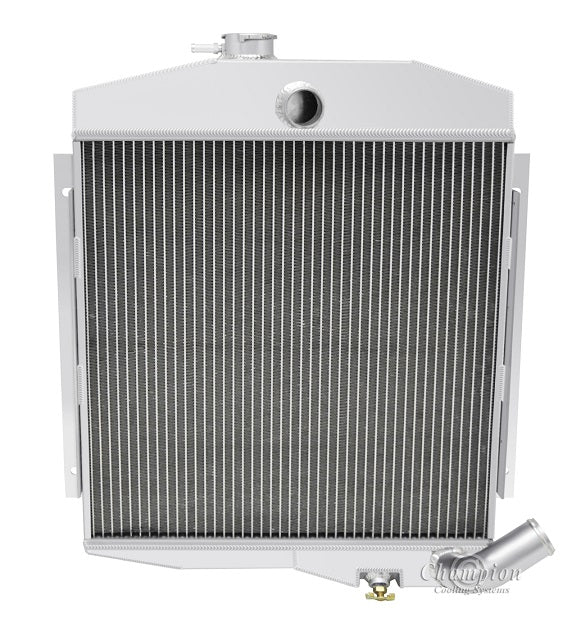

Champion All Aluminum Radiator
2-Row Core | Cools up to 300hp

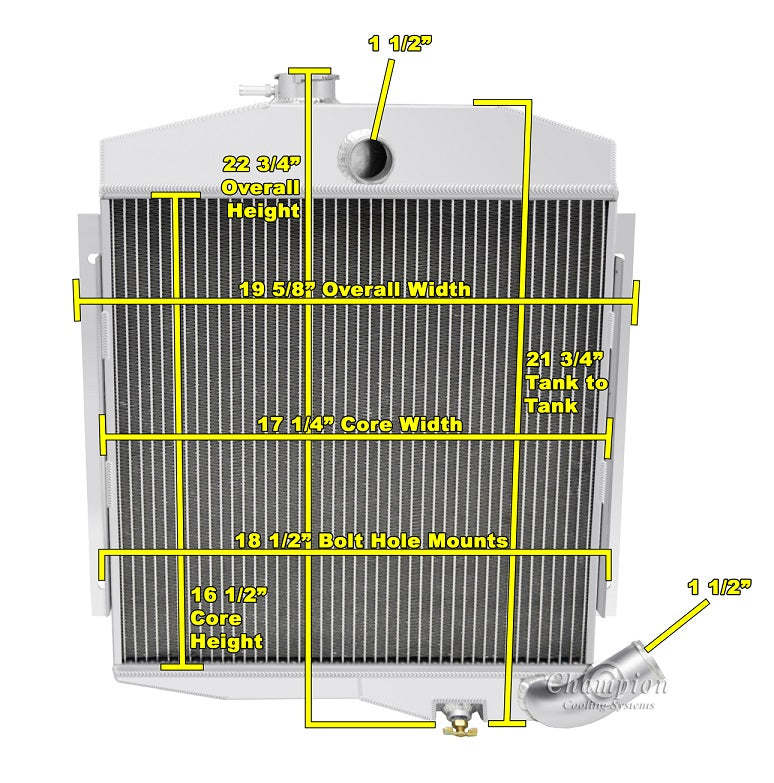

Radiator Dimensions:
Total: 19.63" wide (including brackets) x 22.75" tall
Core: 17.25" wide x 16.5" tall x 1.63" thick
Inlet: 1.5" center side
Outlet: 1.5" passenger side
Tanks: 2.375" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler NOT Included

When using electric fans (sold separately):
One 16" Electric fan recommended for this core size
