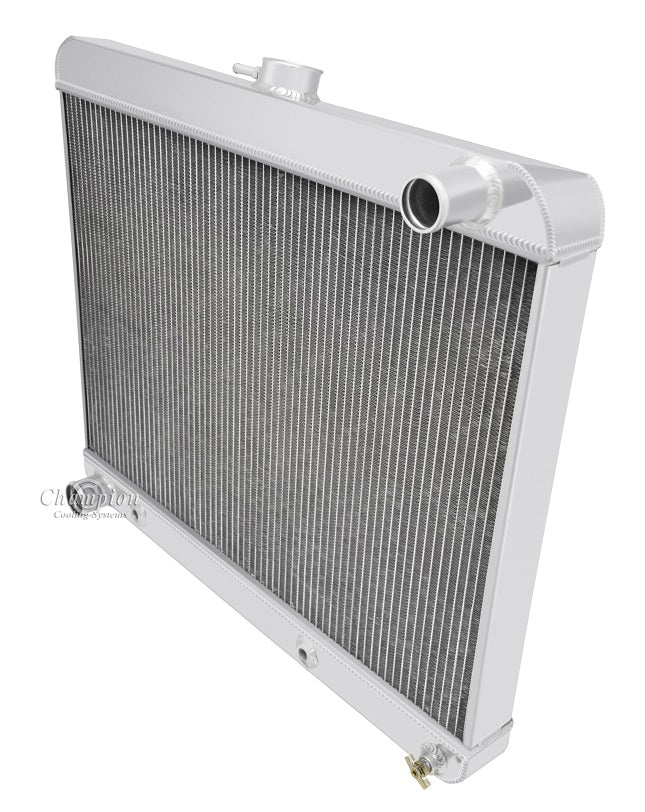

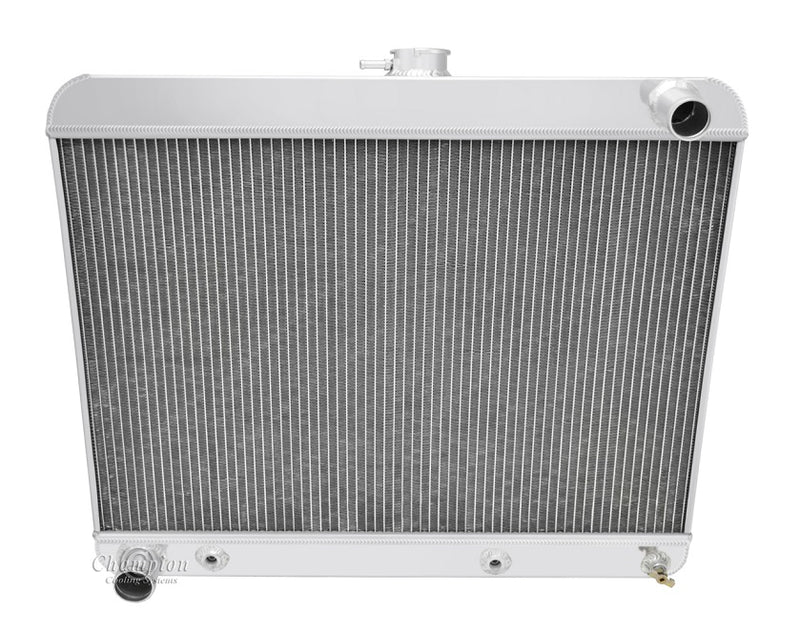

EC6365 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 350hp
Works great with all V8 applications

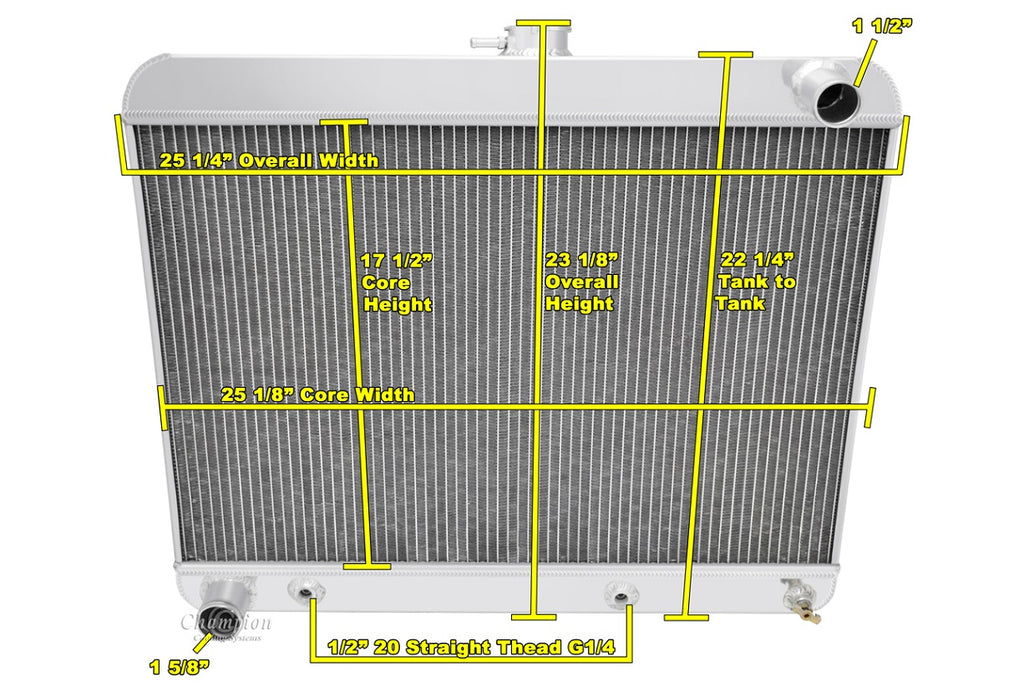

Radiator Dimensions:
Total: 25.25" wide (with brackets) x 23.75" tall (with cap)
Core: 22.75" wide x 17.5" tall x x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75” driver side
Tanks: 2.75" thick
Tubes: 0.75" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2"- 20 straight thread)

When using Electric Fans:
We recommend 16" fan for this core size (sold separately)
