Description

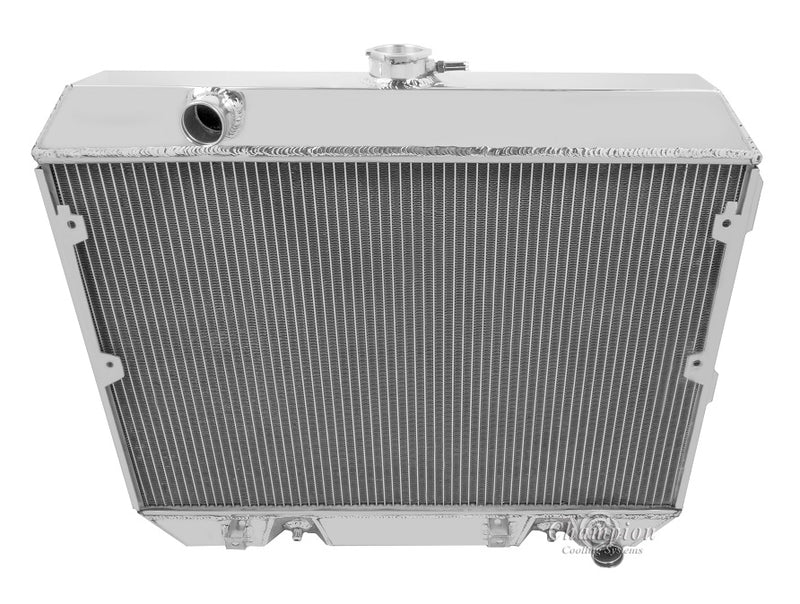

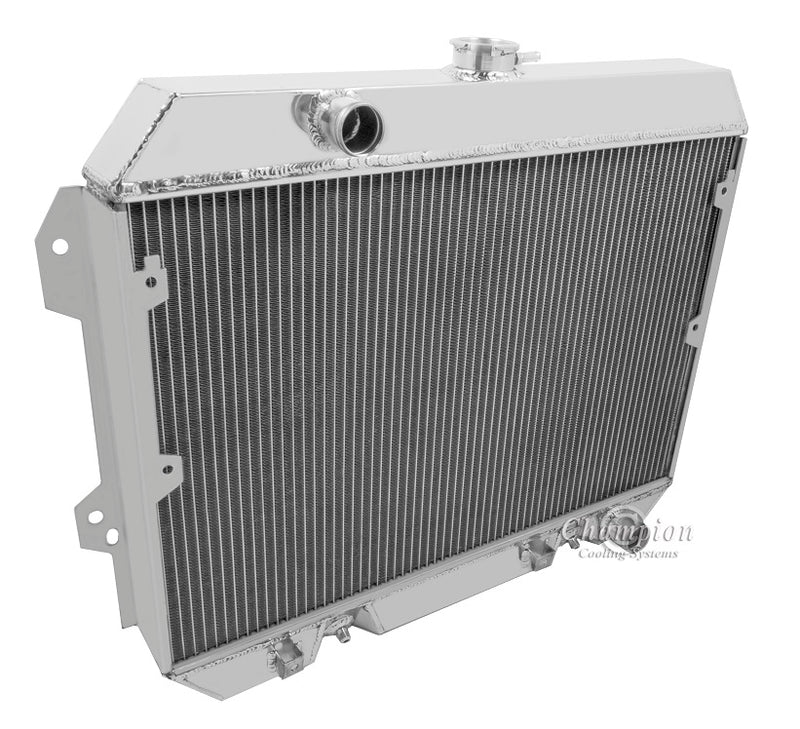

All Aluminum Champion Radiator
2-Row Core | Cools up to 400hp

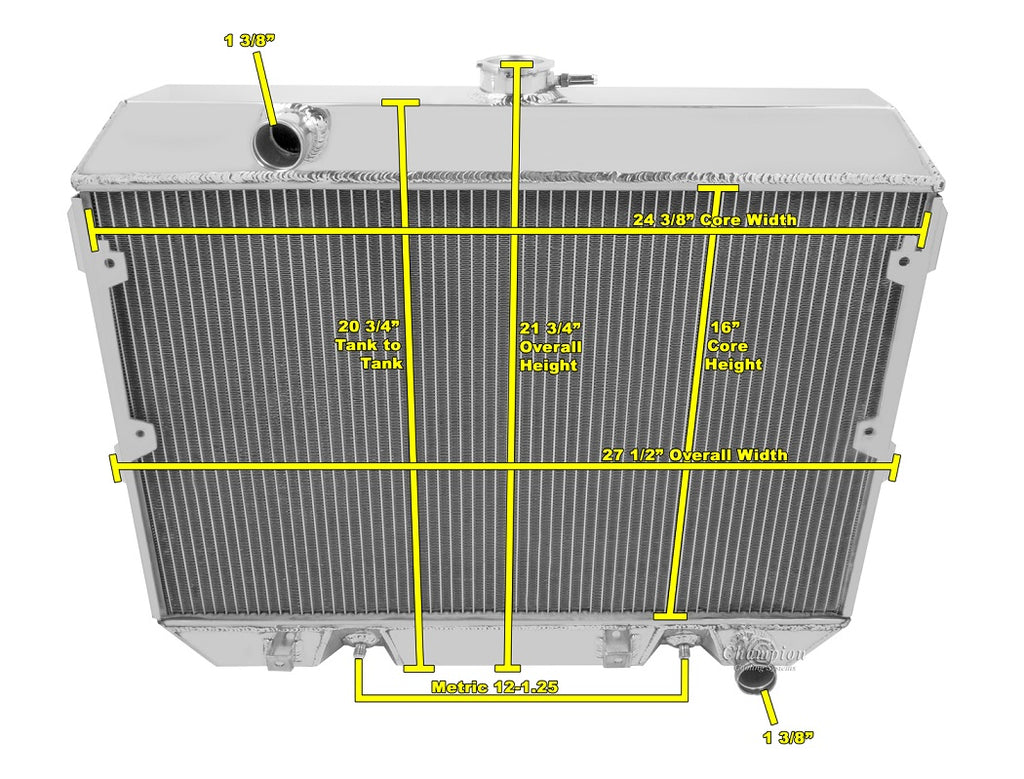

Radiator Dimensions:
Total: 22.63" (with cap) x 27.5" (including brackets)
Core: 16" tall x 24.25" wide x 1.75" thick
Inlet: 1.38" drivers side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)
When using electric fans:
Two 11" Electric fans recommended for this core size (sold separately)
When Core mounting 11" fans the Shroud brackets need to be trimmed
to make room on the core.
2-Row Core | Cools up to 400hp
Radiator Dimensions:
Total: 22.63" (with cap) x 27.5" (including brackets)
Core: 16" tall x 24.25" wide x 1.75" thick
Inlet: 1.38" drivers side
Outlet: 1.38" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Bracket Mounted
13lb. Radiator Cap included
Transmission Cooler Included (Metric 12-1.25)
When using electric fans:
Two 11" Electric fans recommended for this core size (sold separately)
When Core mounting 11" fans the Shroud brackets need to be trimmed
to make room on the core.
