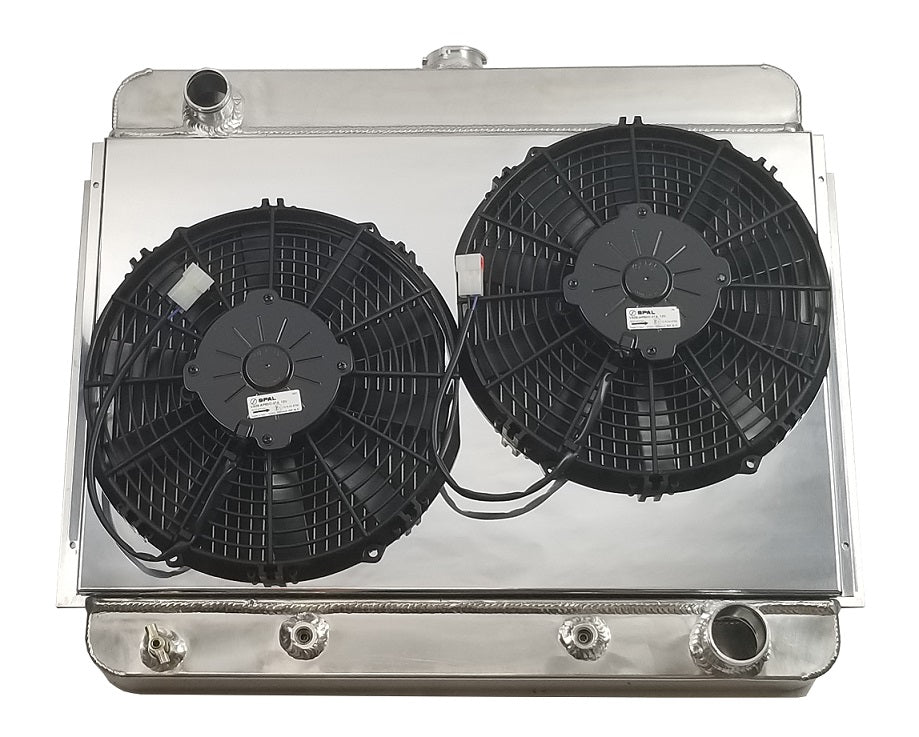

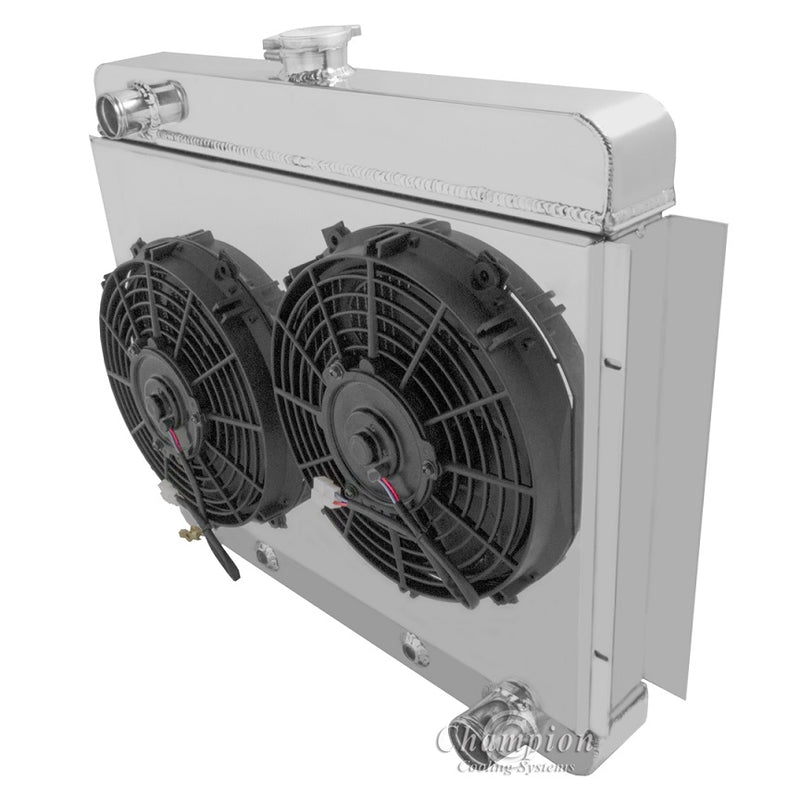

EC6267-6267FS11SP 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-11" SPAL-1500 Fans
Verify clearance for electric fan
Total thickness: 5" to fan motor
2-Row Core | Cools up to 400hp

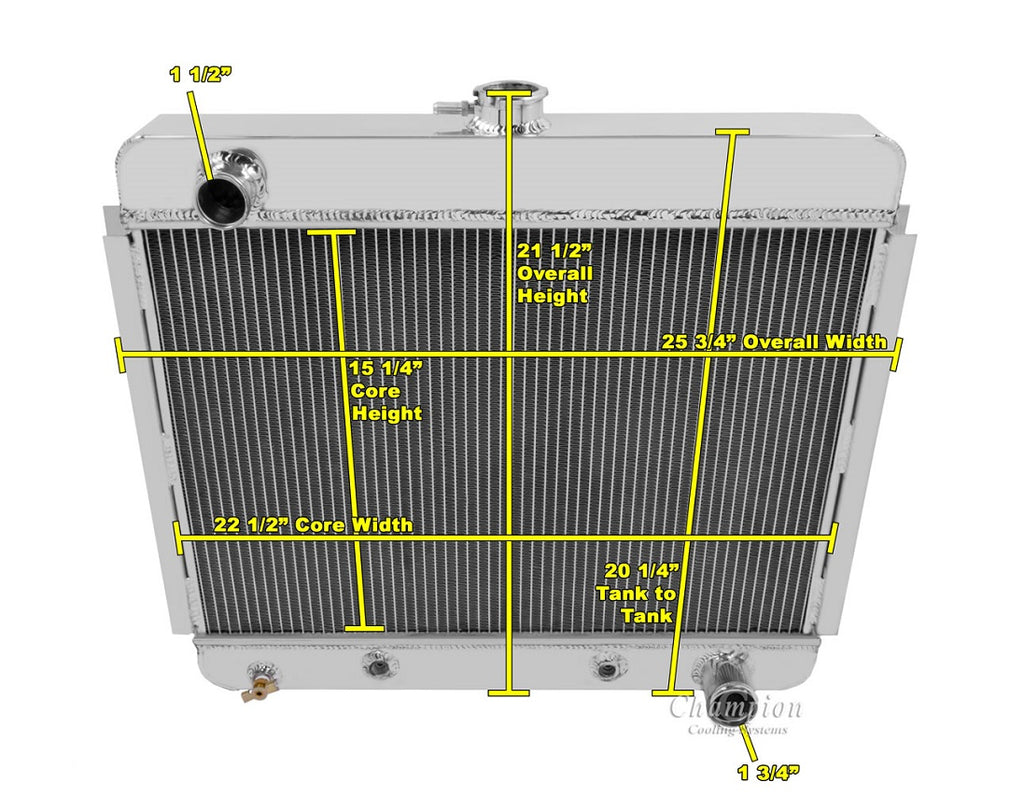

CC6267 Radiator Dimensions:
Total: 21.25" tall (with cap) x 25.5" wide (including brackets)
Core: 15.25" tall x 22" wide x 1.58" thick
Inlet: : 1.5" Driver side
Outlet: 1.75” Passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)
