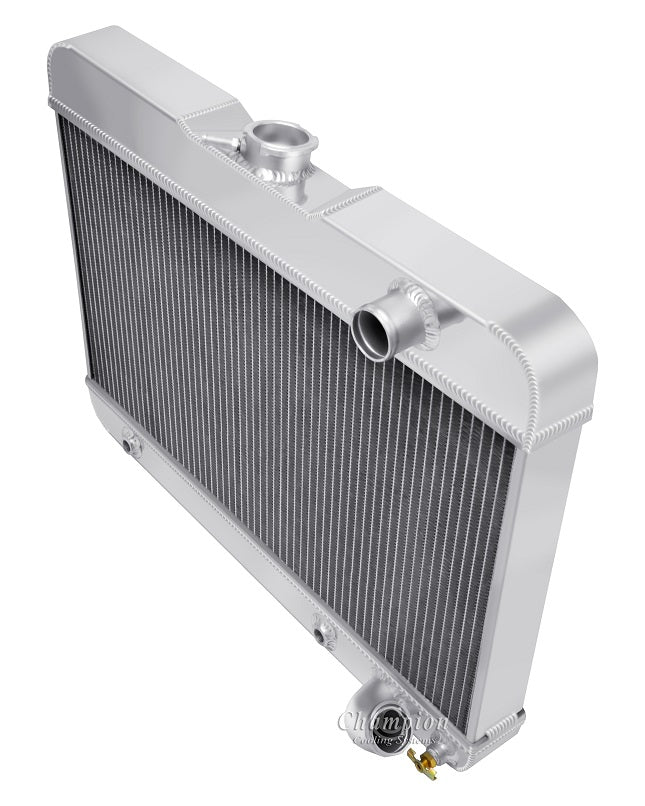

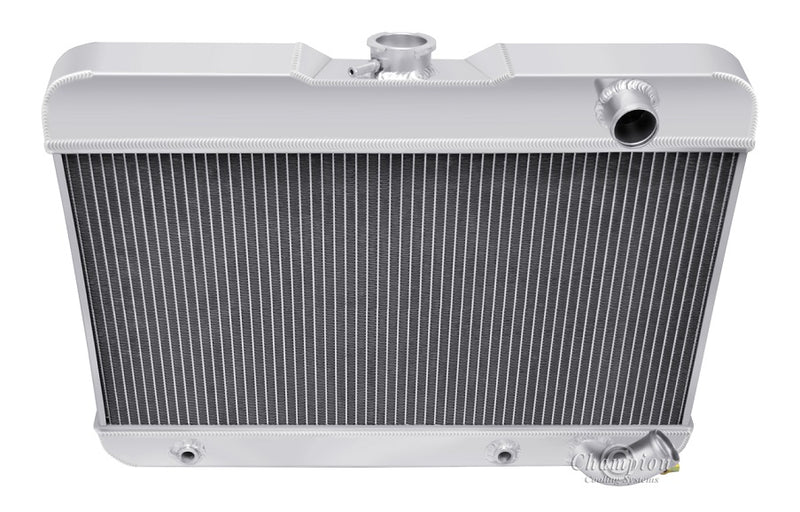

EC6263 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 350hp

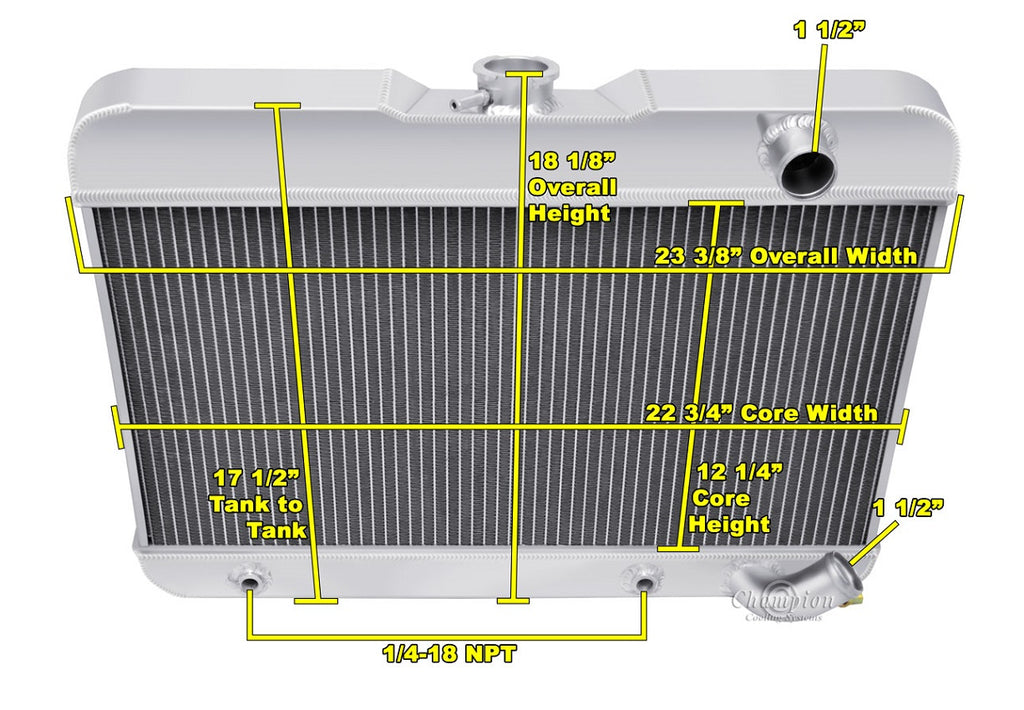

Radiator Dimensions:
Total: 18.5" tall x 23.38" wide
Core: 12.25" tall x 22.75" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.5" passenger side
Tanks: 2.38" thick (top) / 2.38" thick (bottom)
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap Included
Transmission Cooler Included (1/4-18NPT)

When using electric fans:
One 12" electric fan recommended for this core size (sold separately)
