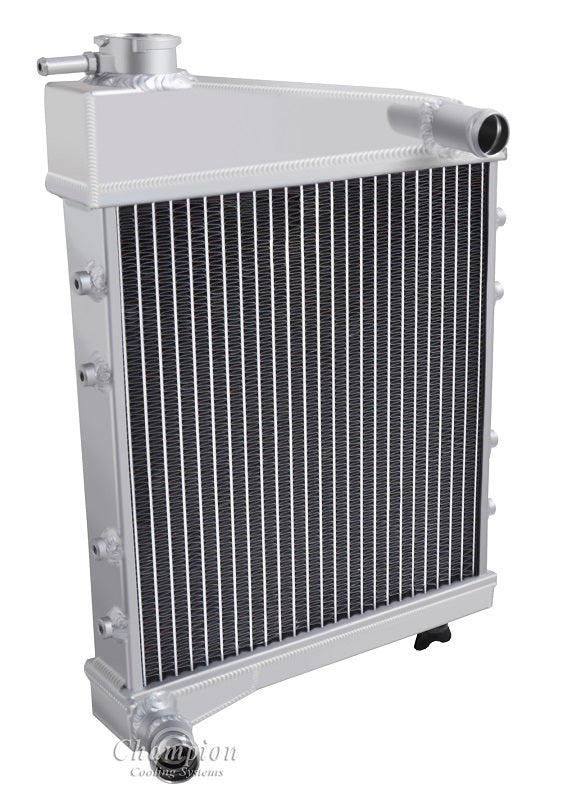

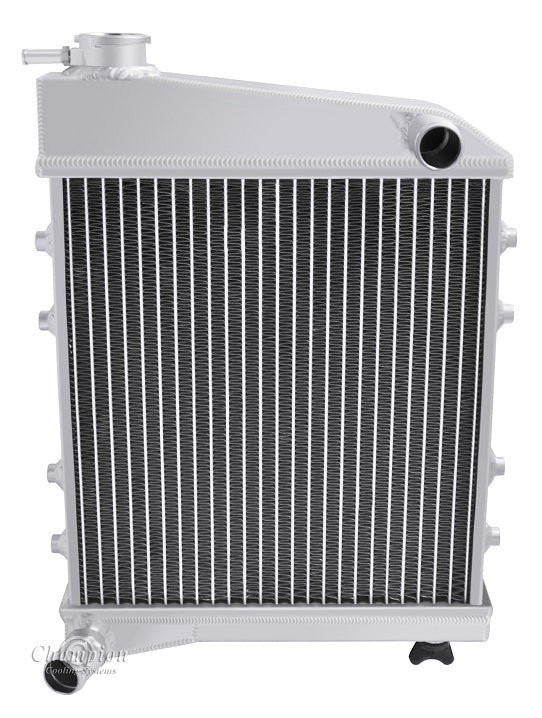

EC6175 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 200hp

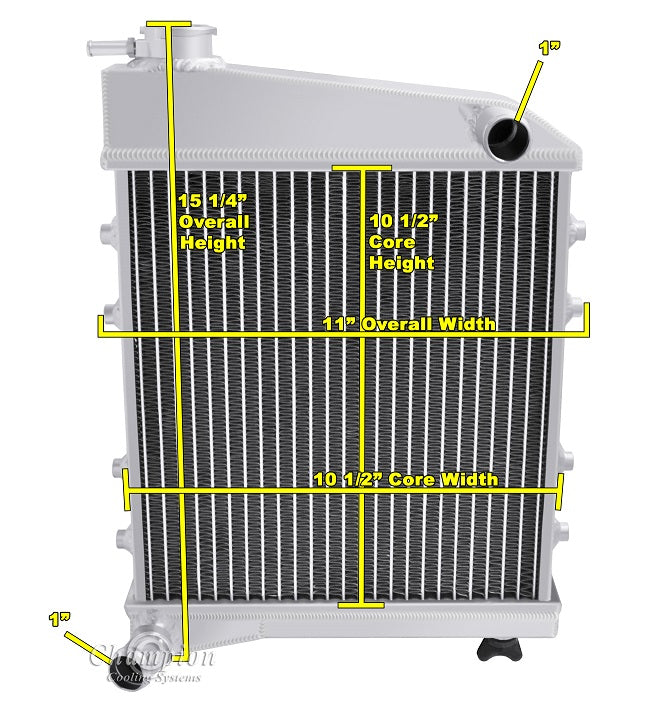

Radiator Dimensions:
Total: 15.25" tall x 11 wide
Core: 10.5" tall x 10.25" wide x 1.63" thick
Inlet: 1" passenger side
Outlet: 1" driver side
Tanks: 2.25" thick
Tubes: 0.75" thick

Pin Mounted

13lb. Radiator Cap included
Transmission Cooler NOT Included
