EC6169 2 Row

The radiator brackets are on the grill face, if you
need them on the engine side please call for
a modification quote.

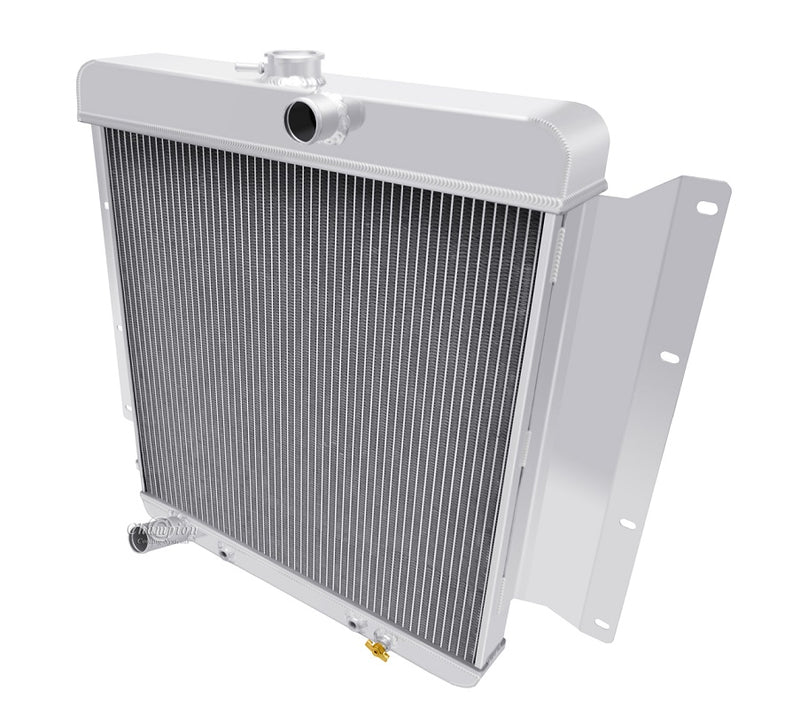

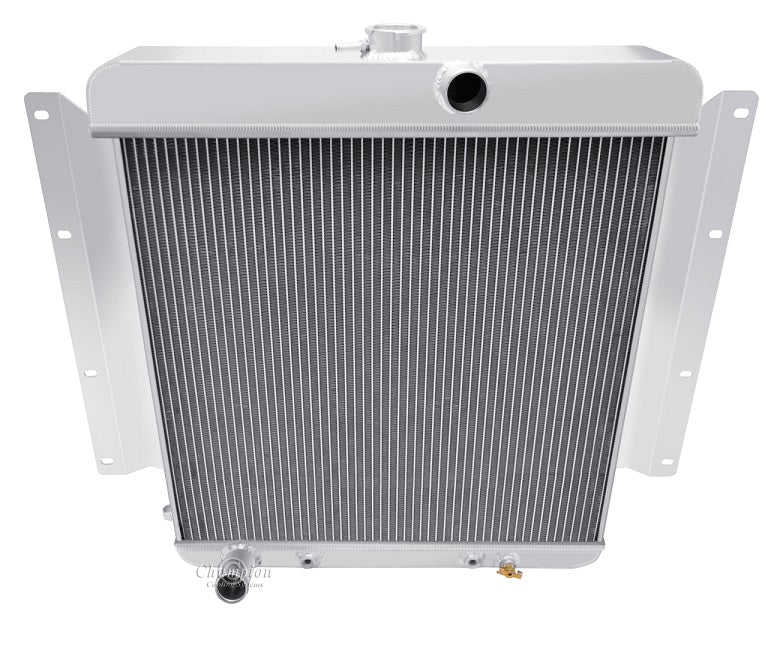

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp

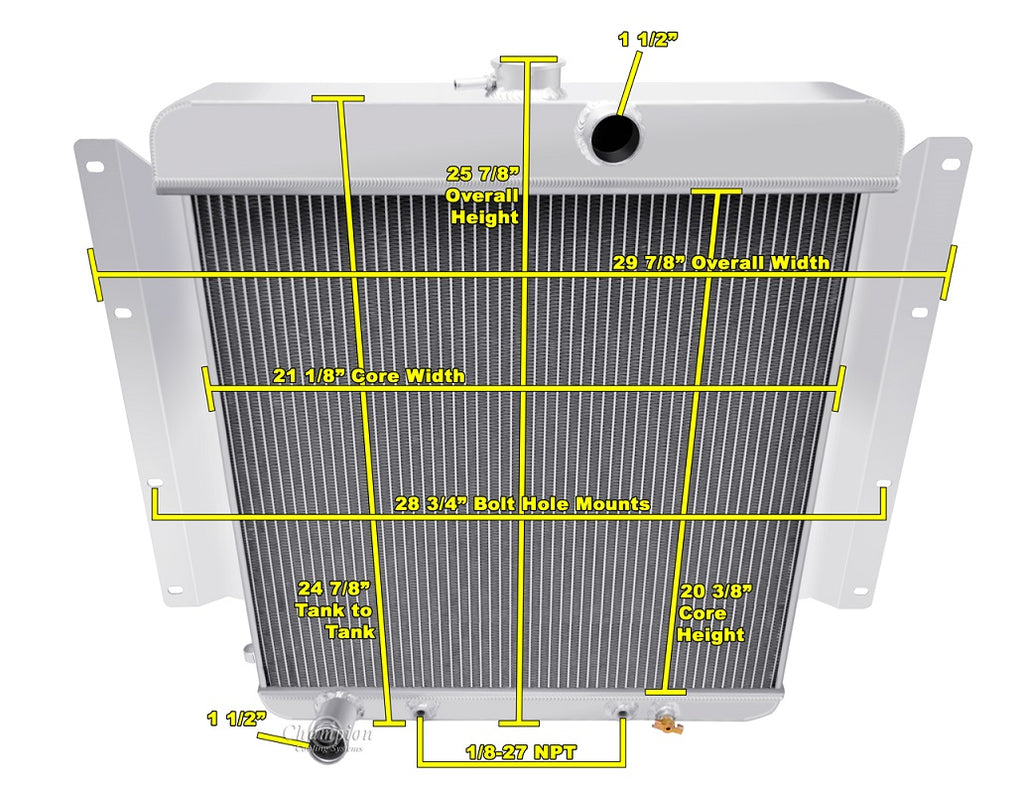

Radiator Dimensions:
Total: 25.875" tall (26.38" with cap) x 29.875" wide (with brackets)
Core: 20.375" tall x 21.13" wide x 2.5" thick
Inlet: 1.5" center
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separetely)
