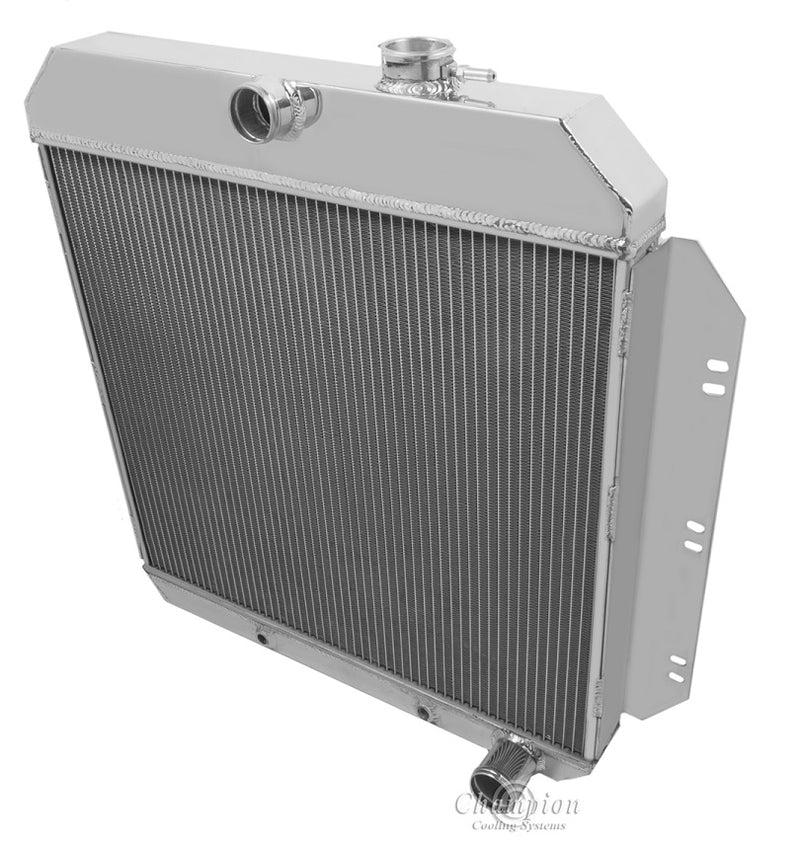

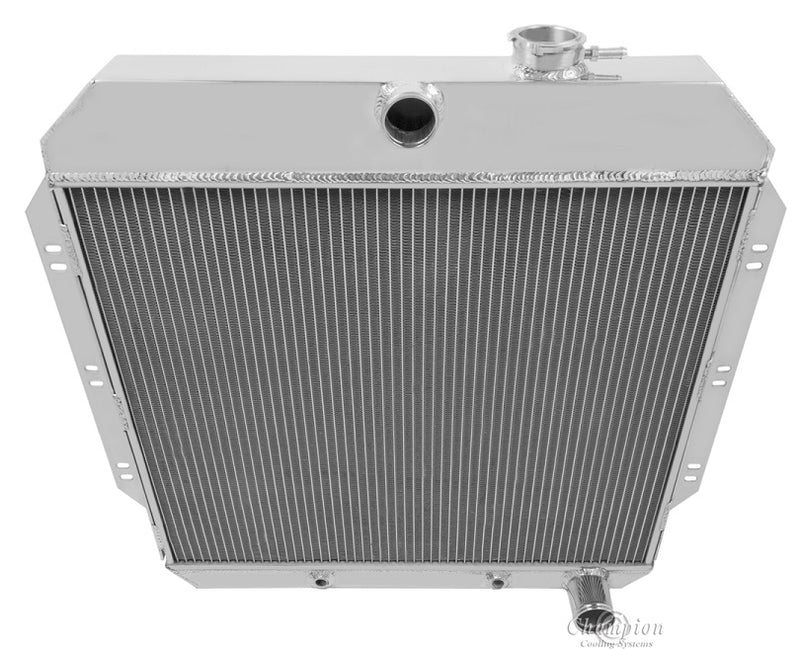

EC6062 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

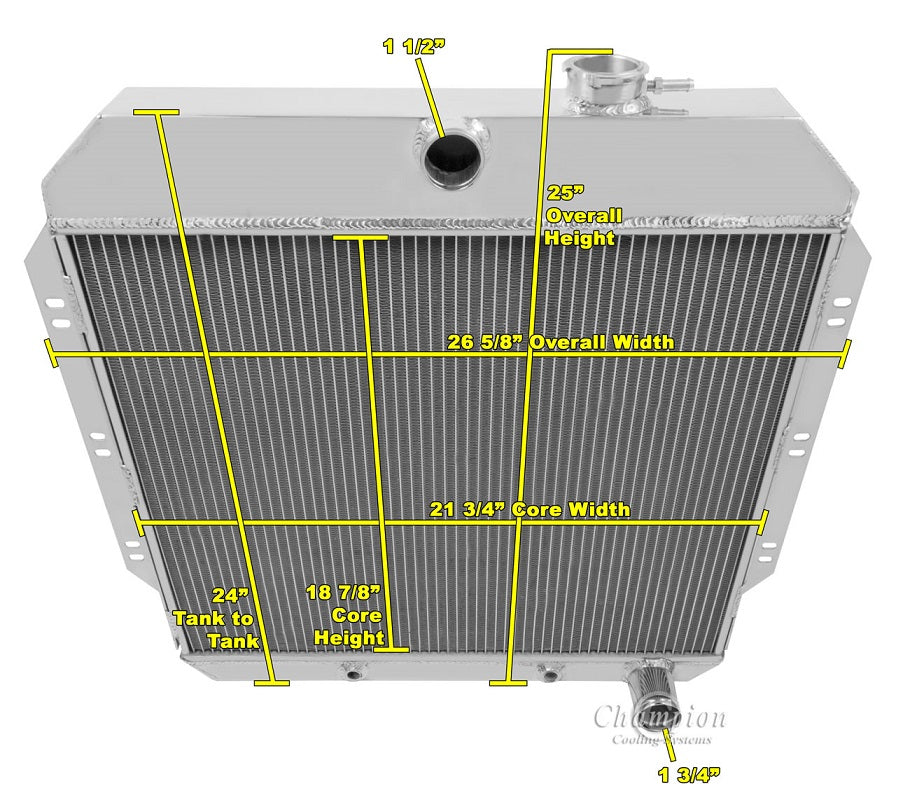

EC6062 Radiator Dimensions:
Total: 25" tall (with cap) x 26.63" (including brackets)
Core: 18.88" tall x 21.75" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 straight thread)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
