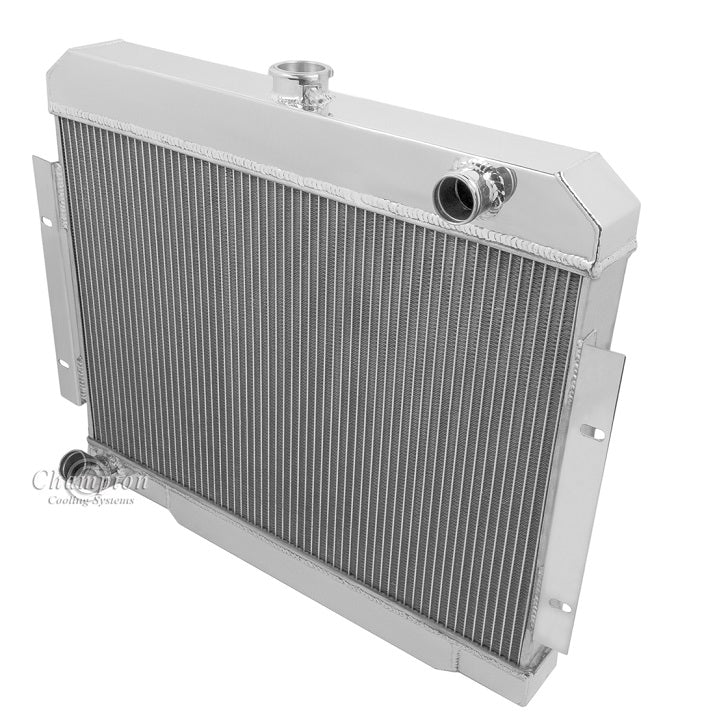

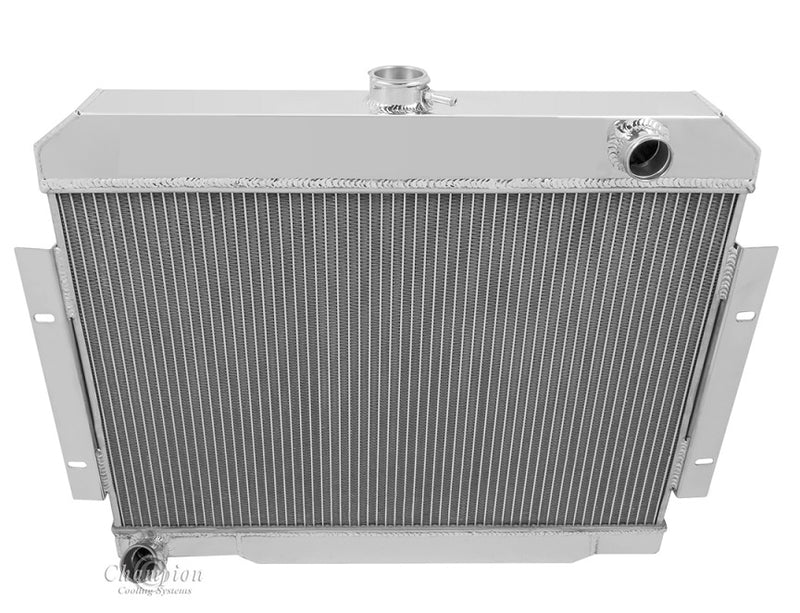

EC583 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 375hp

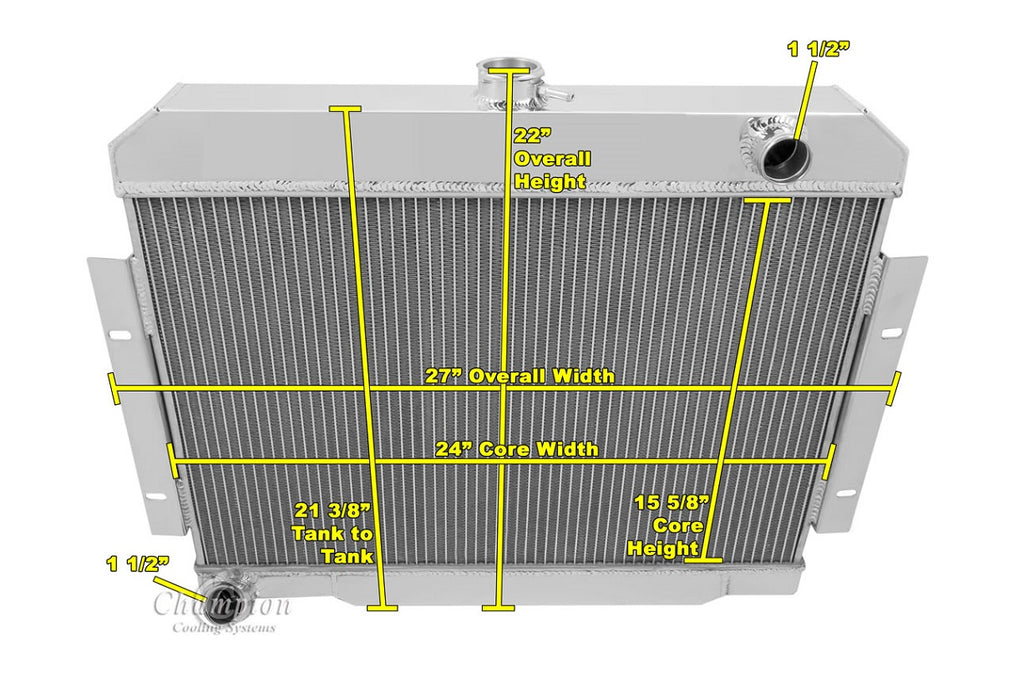

Radiator Dimensions:
Total: 22" tall x 27" wide (including brackets)
Core: 15.63" tall x 24" wide x 1.58" thick
Inlet: 1.5" passenger side
Outlet 1.5" driver side
Tanks: 2" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8"-27npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
