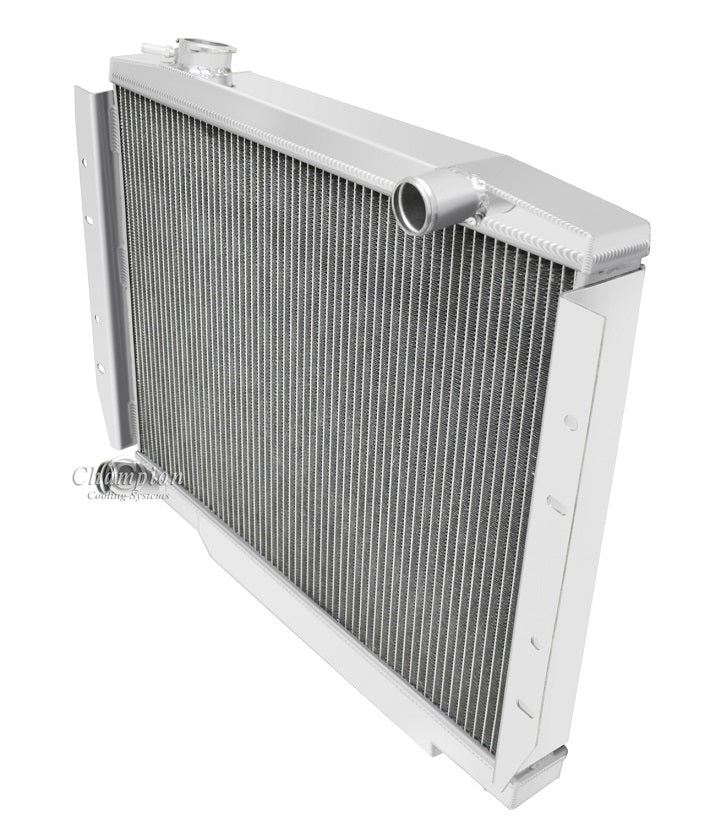

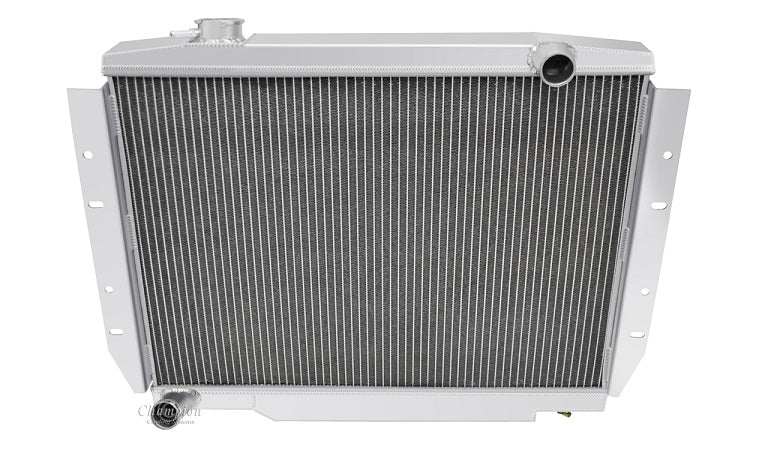

EC58 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

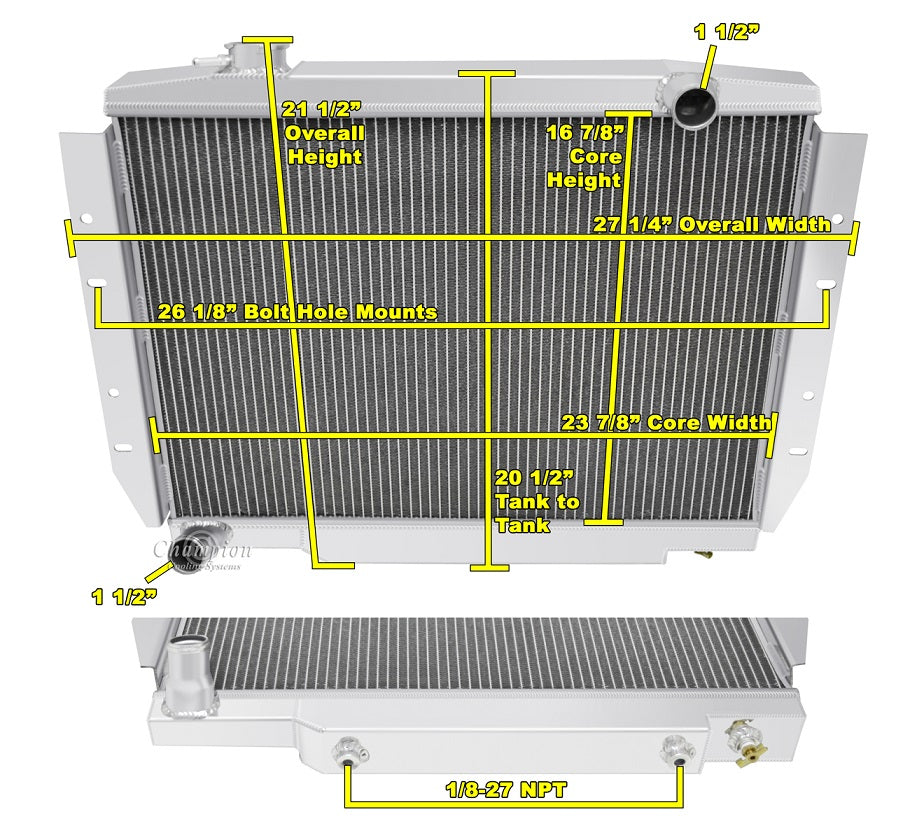

Radiator Dimensions:
Total: 27.25" wide (including brackets) x 21.5" tall
Core: 24" wide x 20" tall x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.39" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8"-27npt)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
