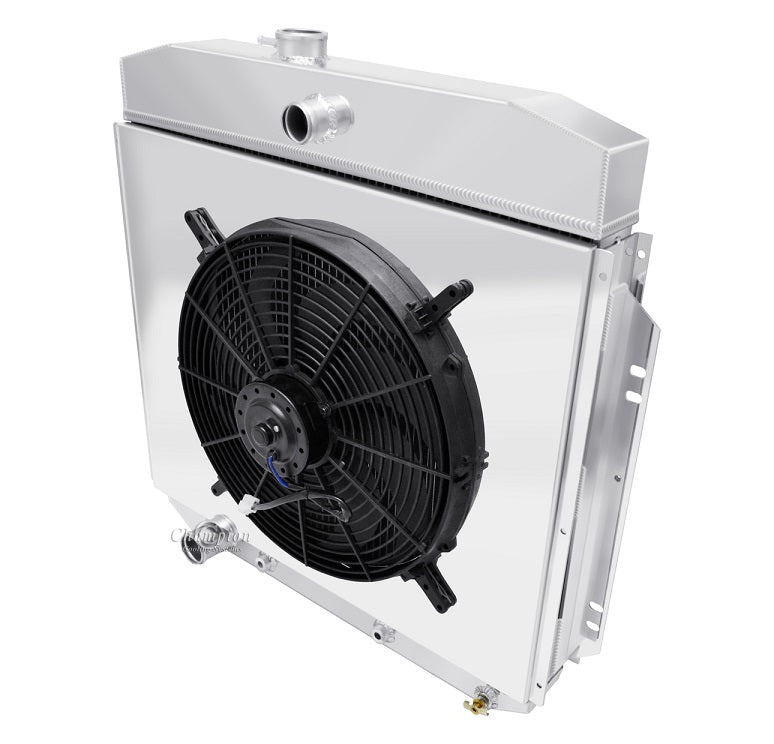

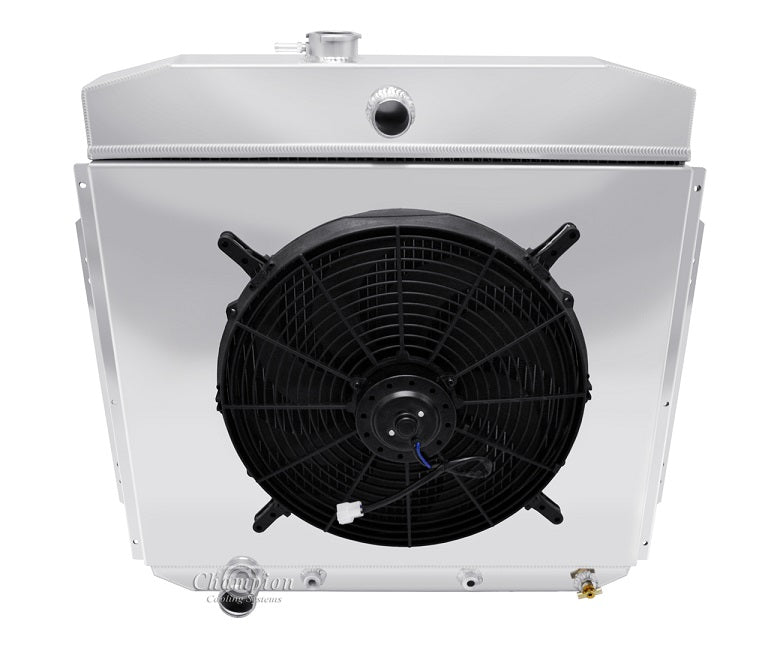

EC5760FD-5760FS16C 2 Row Driver Outlet

All Aluminum Champion Radiator PLUS
Aluminum Shroud & 16" Pro-Series Fan
Total thickness: 5.5" from mounting bracket
2-Row Core | 450 hp Rating

Radiator Dimensions:
Total: 26.25" tall (with cap) x 27.5" wide (including brackets)
Core: 20" tall x 23" wide x 1.63" thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27 NPT)
