EC573-573FS12FSP 2 Row Combo

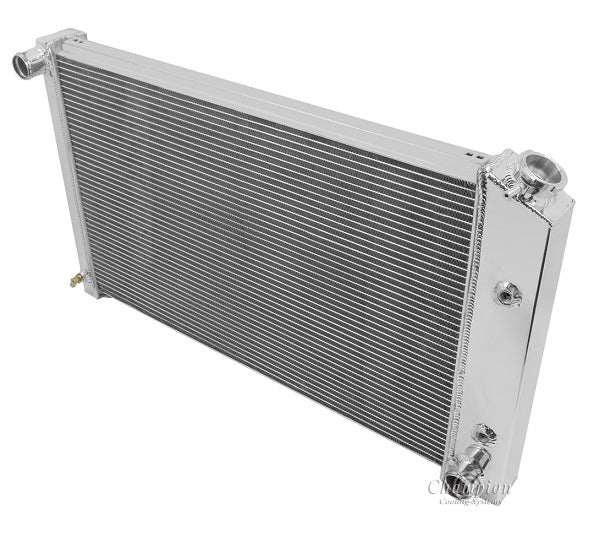

Champion All Aluminum Radiator

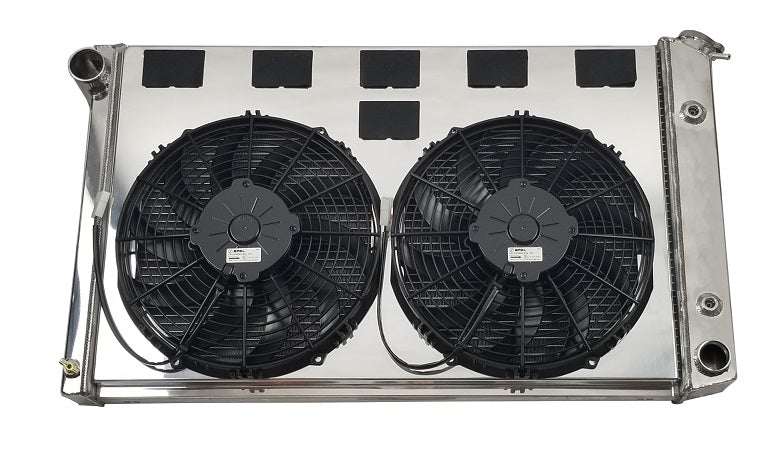

Includes Ledfoot Racing Aluminum Shroud
Plus 2-12" SPAL-1522 Fans "SAVE $30
2-Row Core | 450hp Rating
NOTE: this shroud is NOT part of the radiator mounting system.
Installation modifications may be necessary.

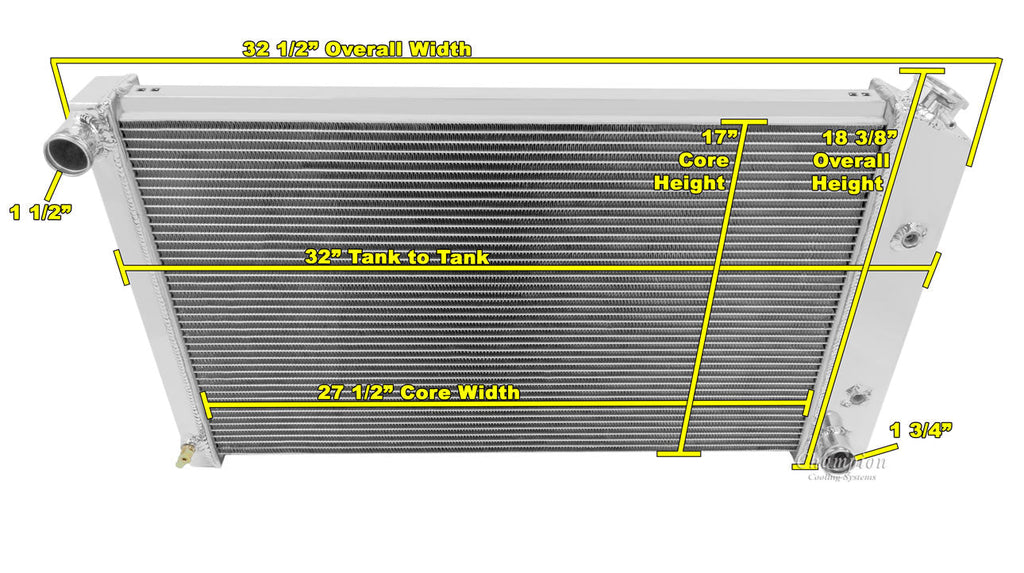

Radiator Dimensions:
Total: 18.5" tall x 32.5" wide
Core: 16.75" tall x 27.75" wide x 1.63" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 5.75" (4.75" between fan motors)

Saddle Mounted

Shroud includes (6) Rubber Flaps for Better High Speed Cooling
13 lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
