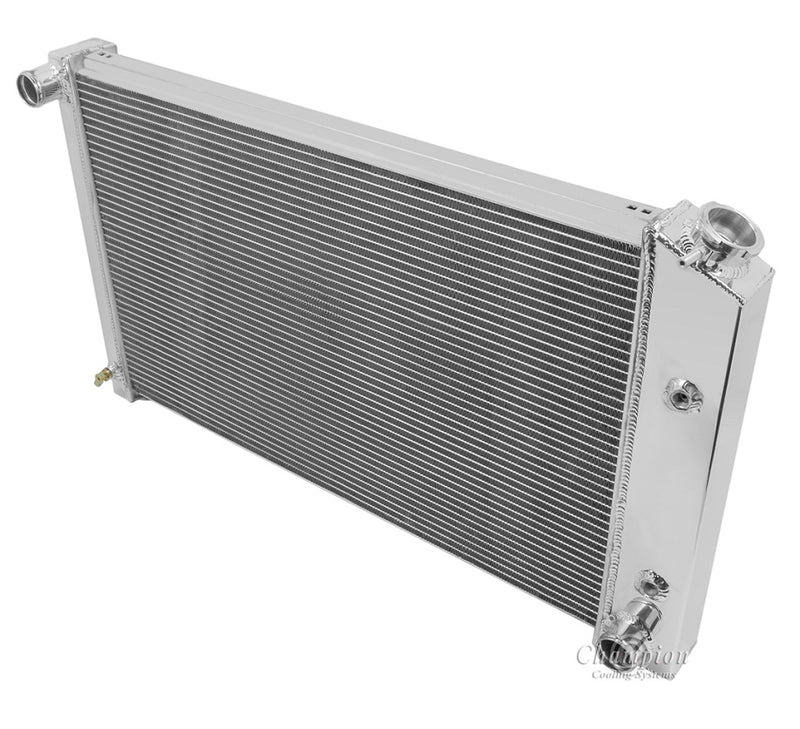

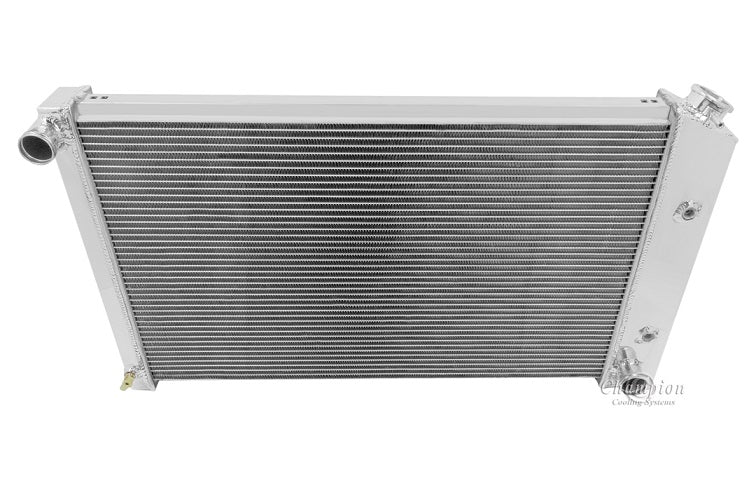

EC573 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp

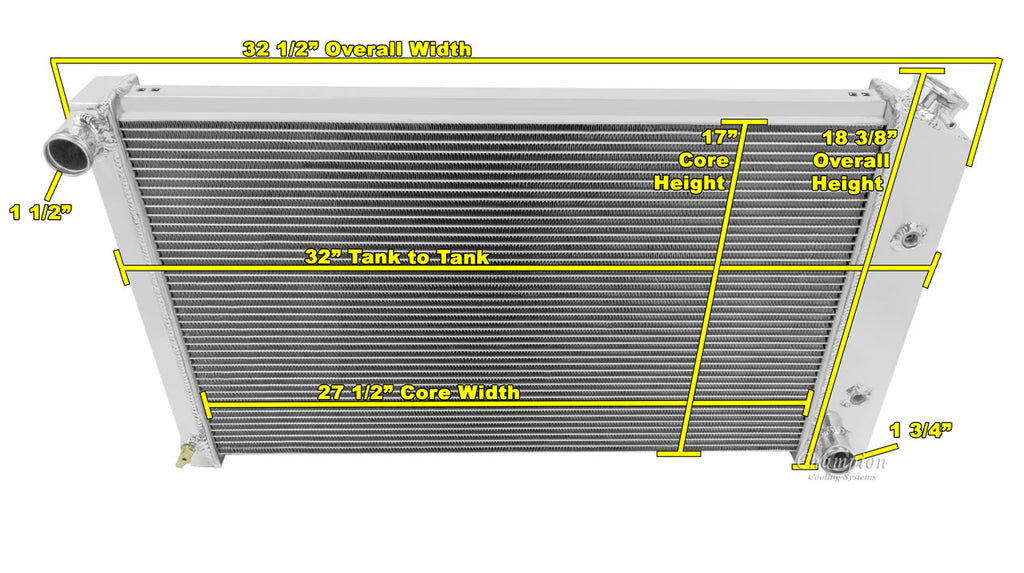

EC573 Radiator Dimensions:
Total: 18.38" tall x 32.5" wide
Core: 17" tall x 27.5" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" pass side
Tanks: 2.5" thick
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
