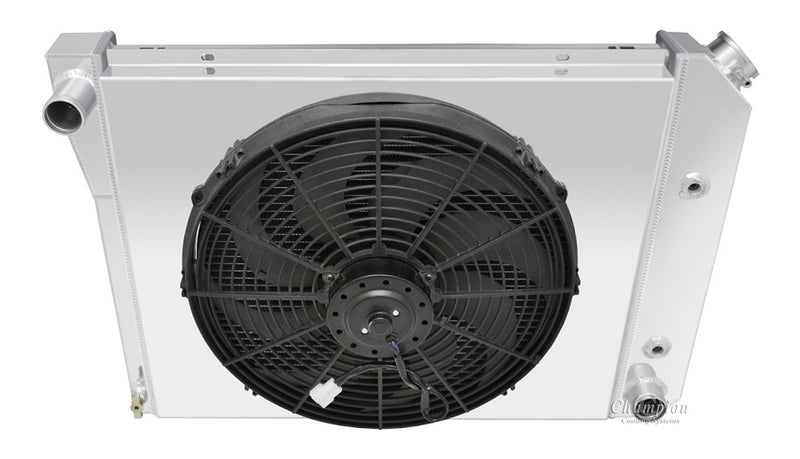

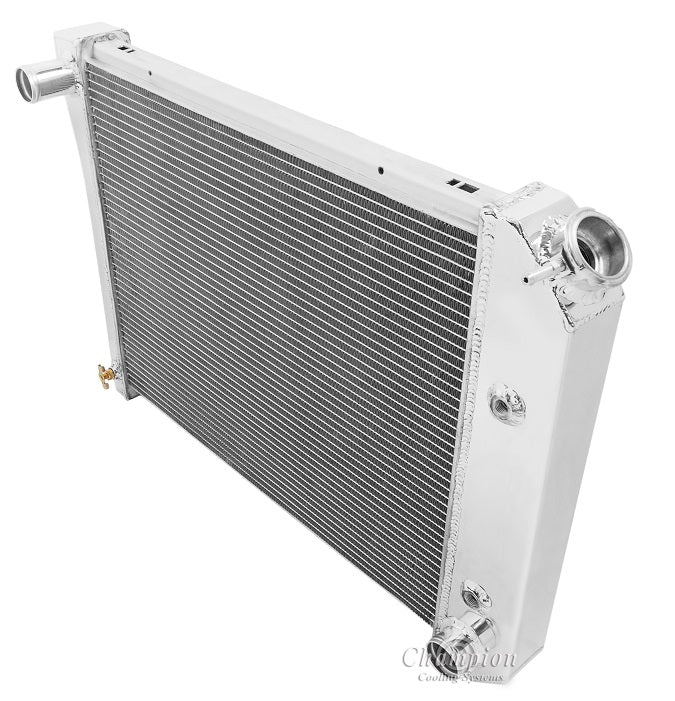

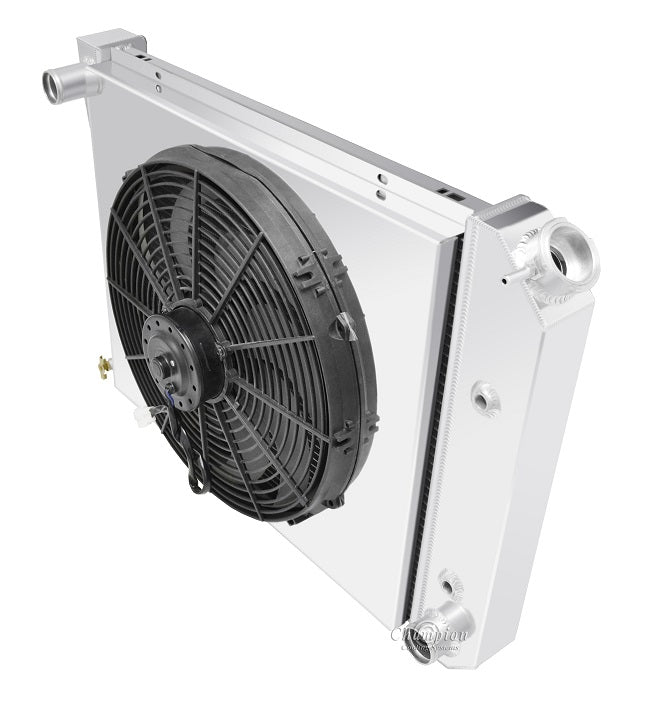

EC571-571FS16 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | 400hp Rating

EC571 Radiator Dimensions:
Total: 18.5" tall (18.75" with cap) x 27" wide
Core: 16.75" tall x 21.25" widec x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" pass side
Tanks: 2.5" thick
Tubes: 0.75" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
