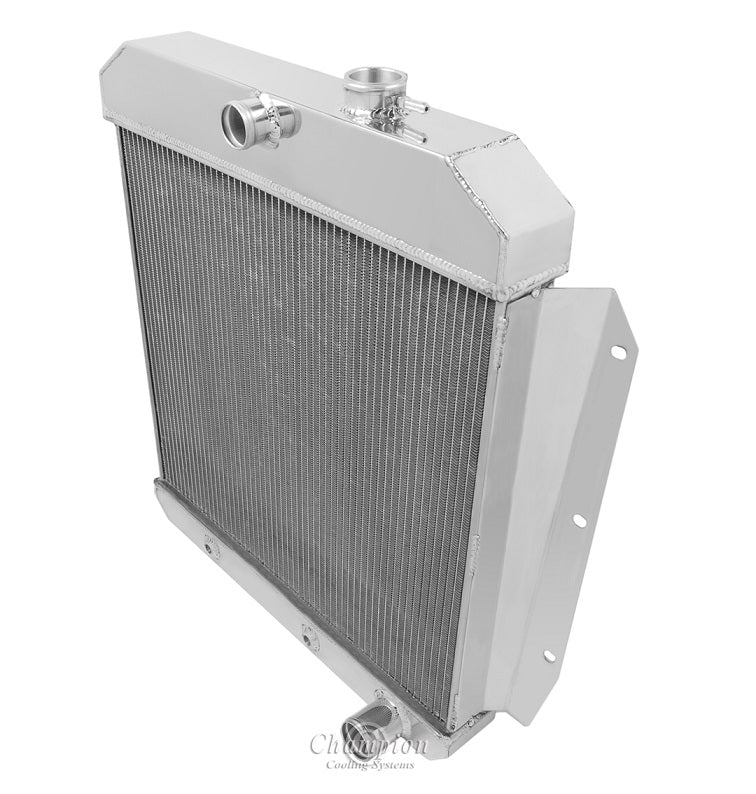

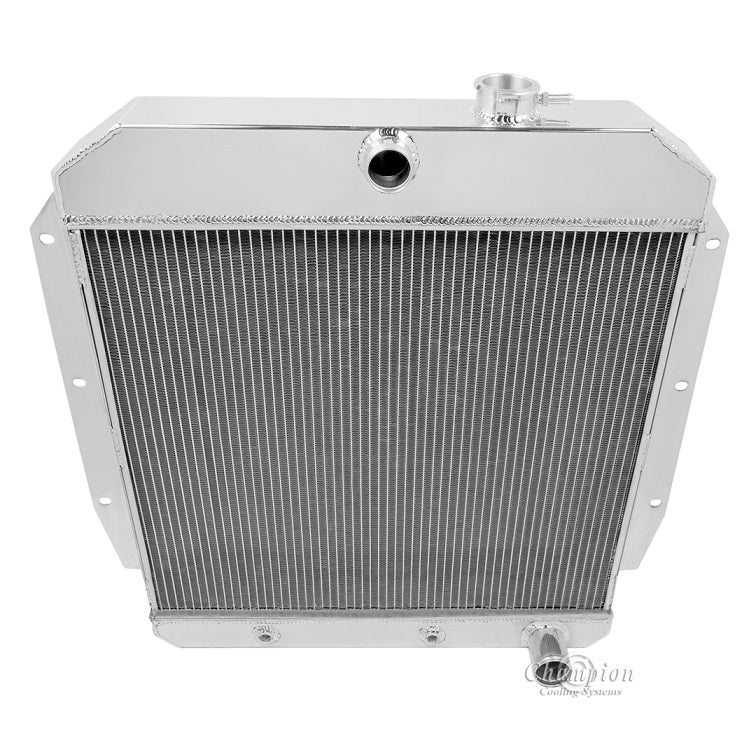

EC5559 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

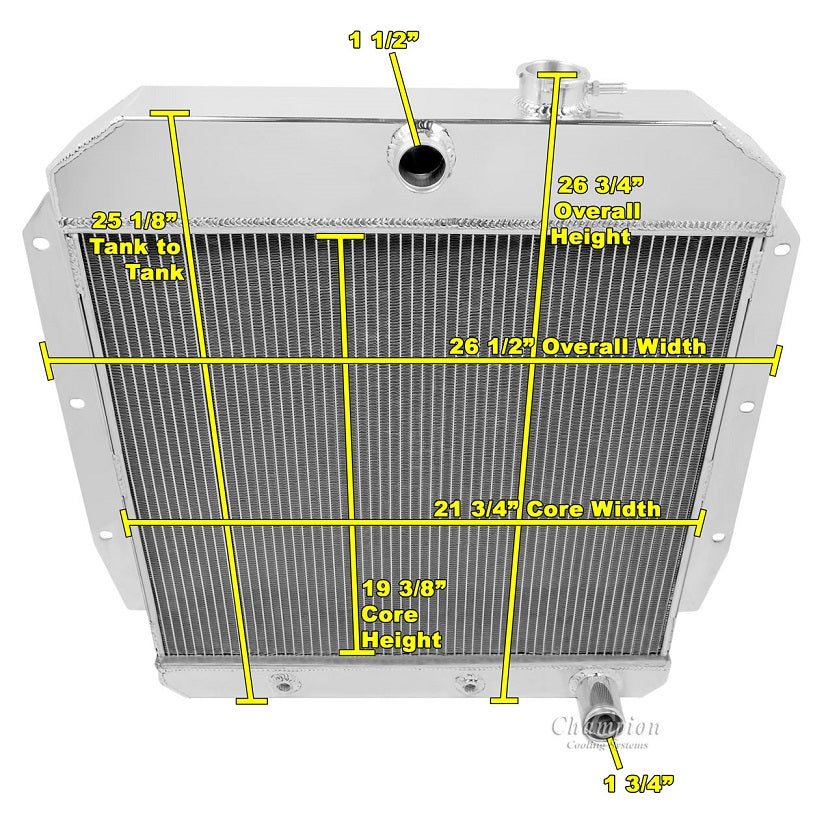

EC5559 Radiator Dimensions:
Total: 26.75" tall (with cap) x 26.5" wide (including brackets)
Core: 19.38"1 tall x 21.75" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"-20 Straight Thread)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
