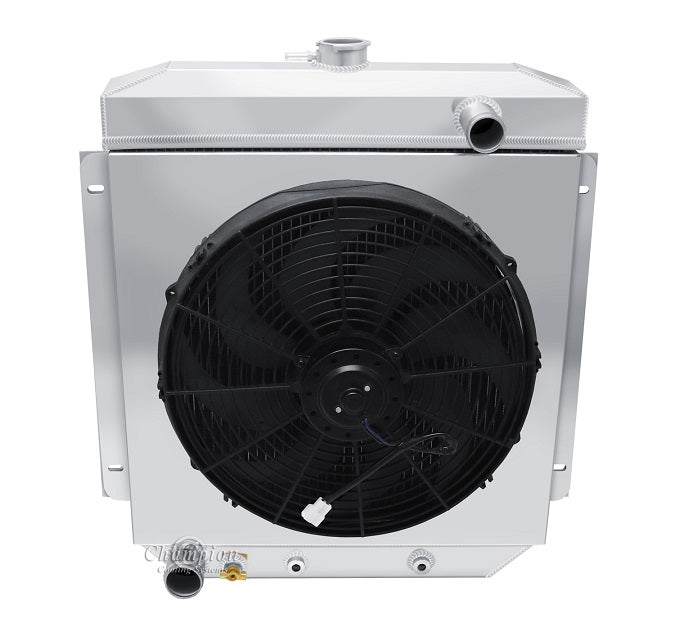

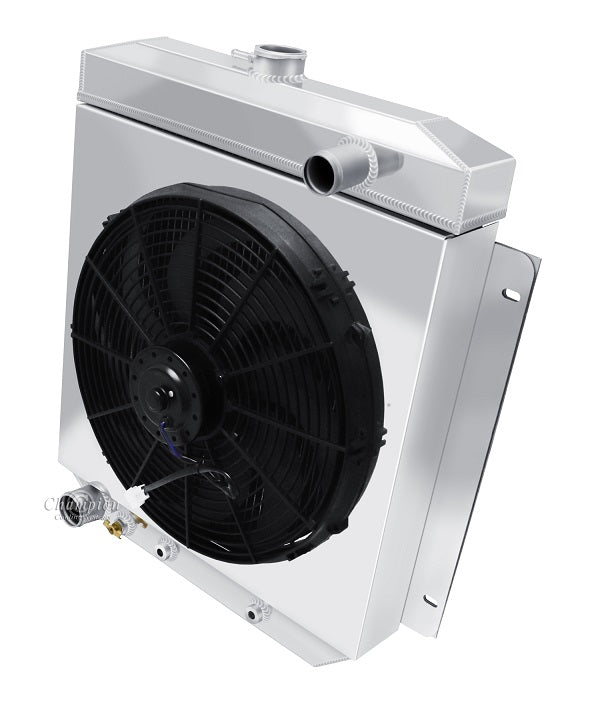

EC5456-5456FS16C 2 Row Combo

Champion Cooling Aluminum Radiator PLUS
Aluminum Shroud and 16" Pro-Series Fan
2 Row Core | Cools up to 400hp

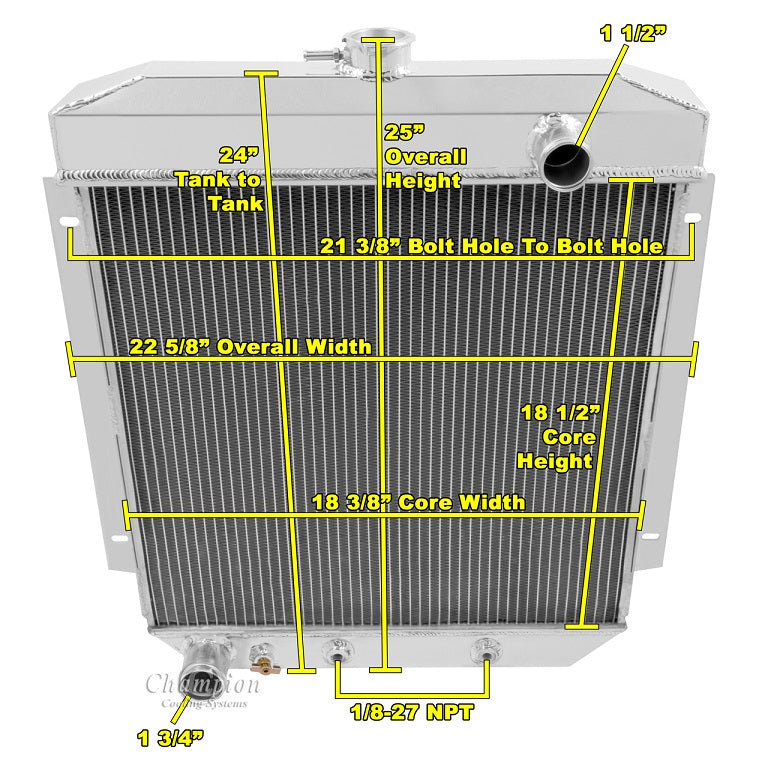

Radiator Dimensions:
Total: 25.13" tall x 22.63" wide (with brackets)
Core: 18.5" tall x 18.75" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3" upper, 2.5" lower
Tubes: 0.68" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27 NPT)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
