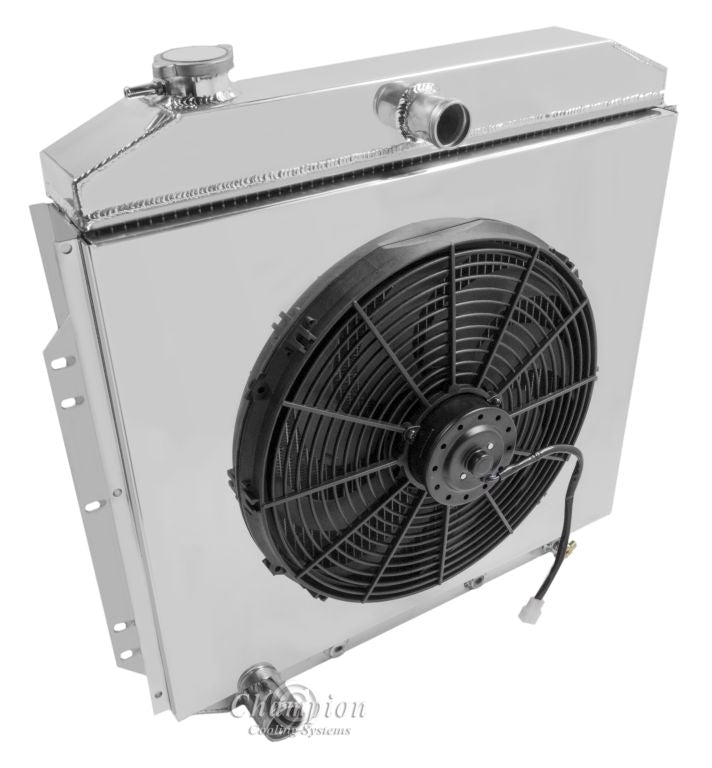

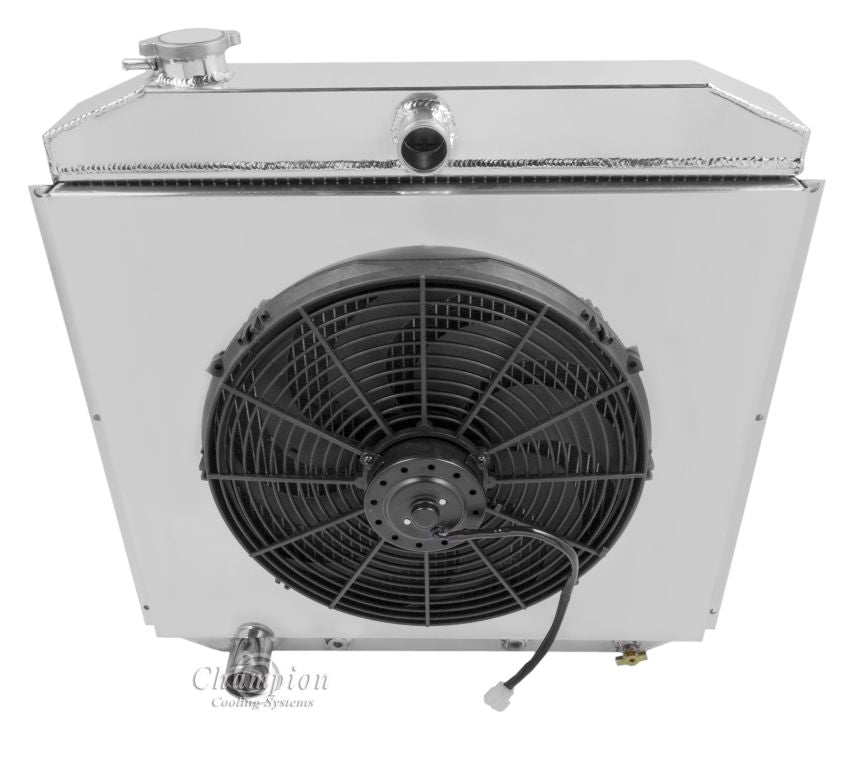

EC5356-5356FS16 2 Row Combo

Champion All Aluminum Radiator PLUS
Ledfoot Racing Aluminum Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
2-Row Core | 400hp Rating

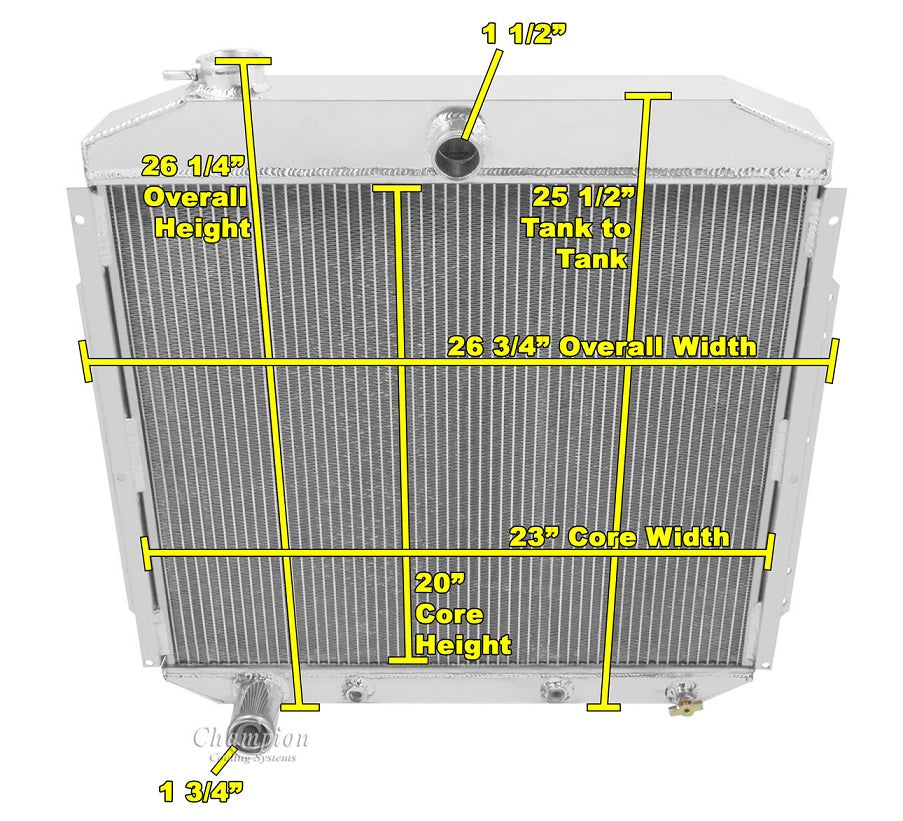

EC5356 Radiator Dimensions:
Total: 26.25" tall (with cap) x 26.75" wide
Core: 20" tall x 23" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick

13lb. Radiator Cap included
Transmission Cooler included (1/8-27 NPT)
