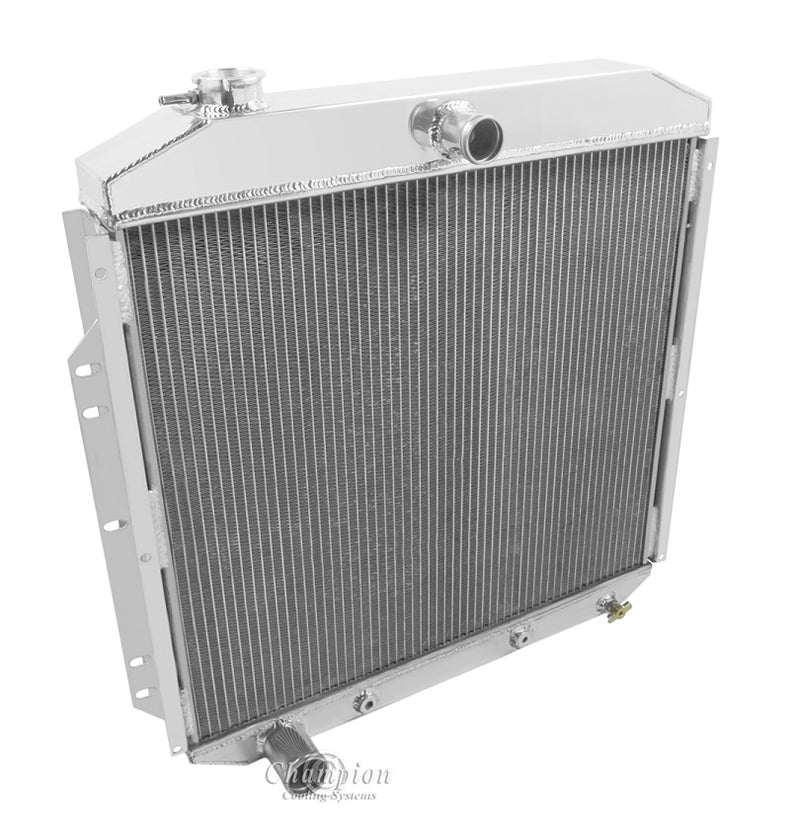

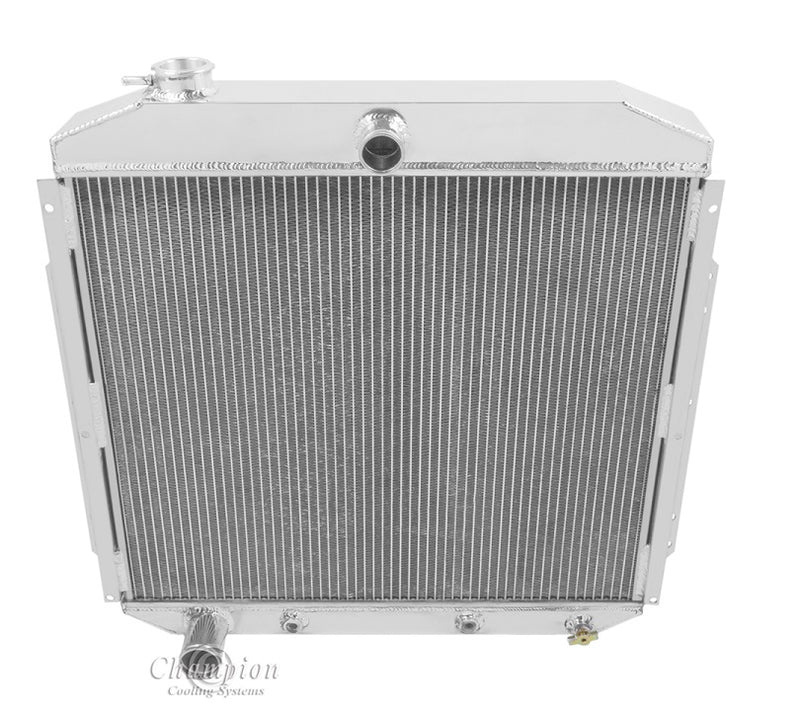

EC5356 2 Row

All Aluminum Champion Radiator
2-Row Core | Cools up to 400hp

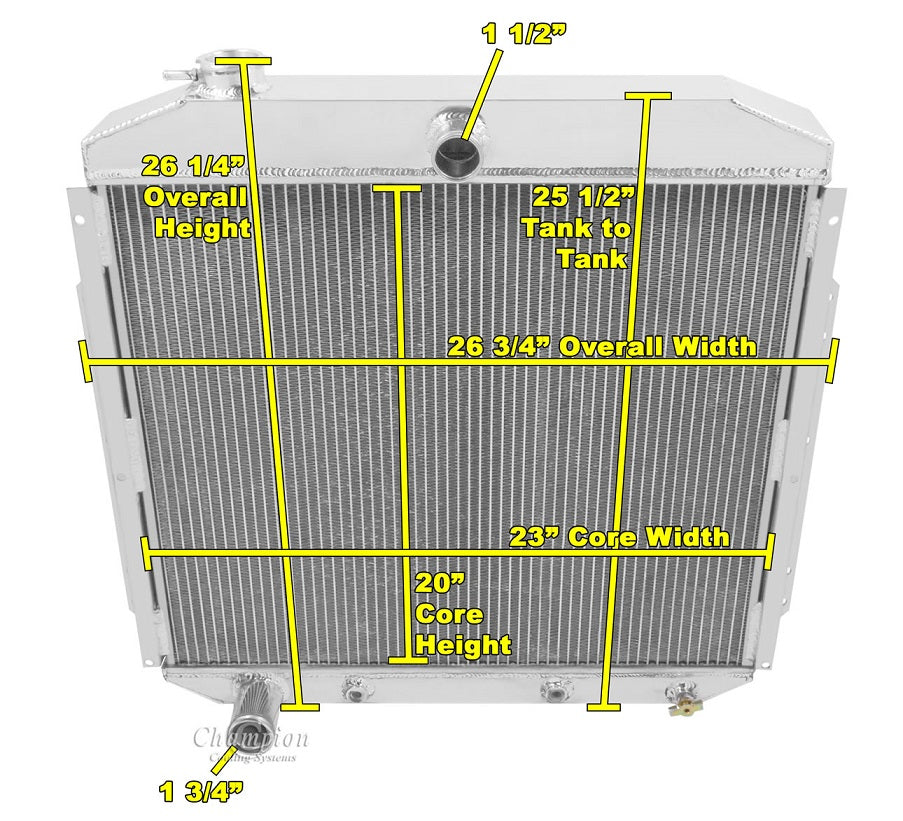

EC5356 Radiator Dimensions:
Total: 26.25" tall (with cap) x 26.75" wide
Core: 20" tall x 23" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick

13lb. Radiator Cap included
Transmission Cooler included (1/8-27 NPT)
Aluminum shroud is also available (sold separately)

When using electric fans:
One 16" Electric fans recommended for this core size (sold separately)
