EC5354 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 350hp

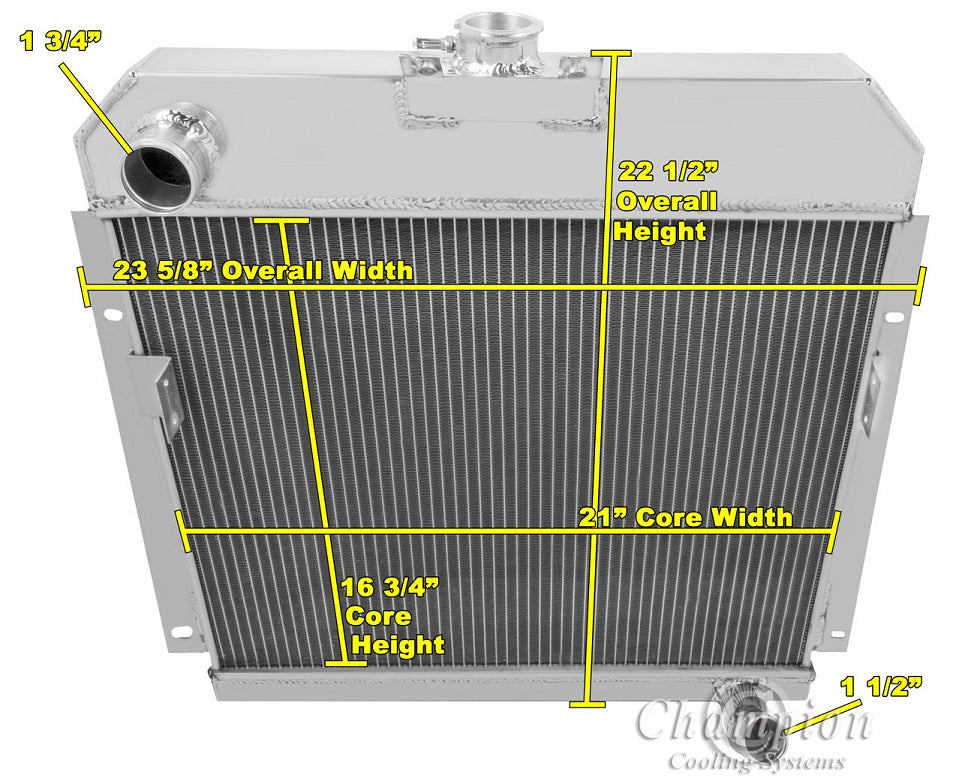

Radiator Dimensions:
Total: 23" tall x 23.38" wide (including brackets)
Core: 16.75" tall x 20.75" wide x 1.75" thick
Inlet: 1.75" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
No Transmission Cooler

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
