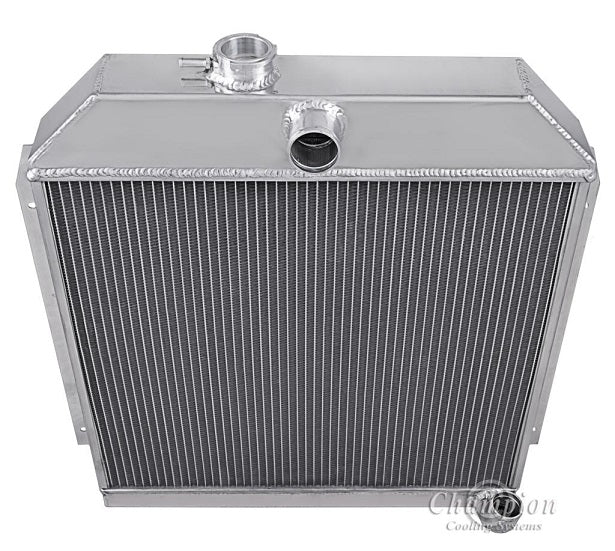

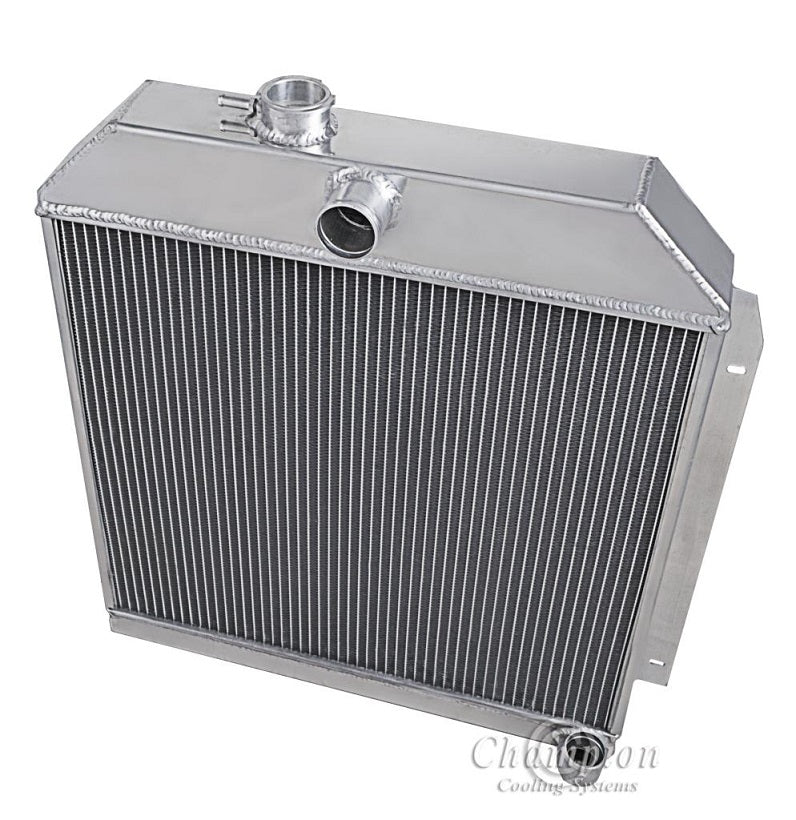

EC52PLY 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 375hp

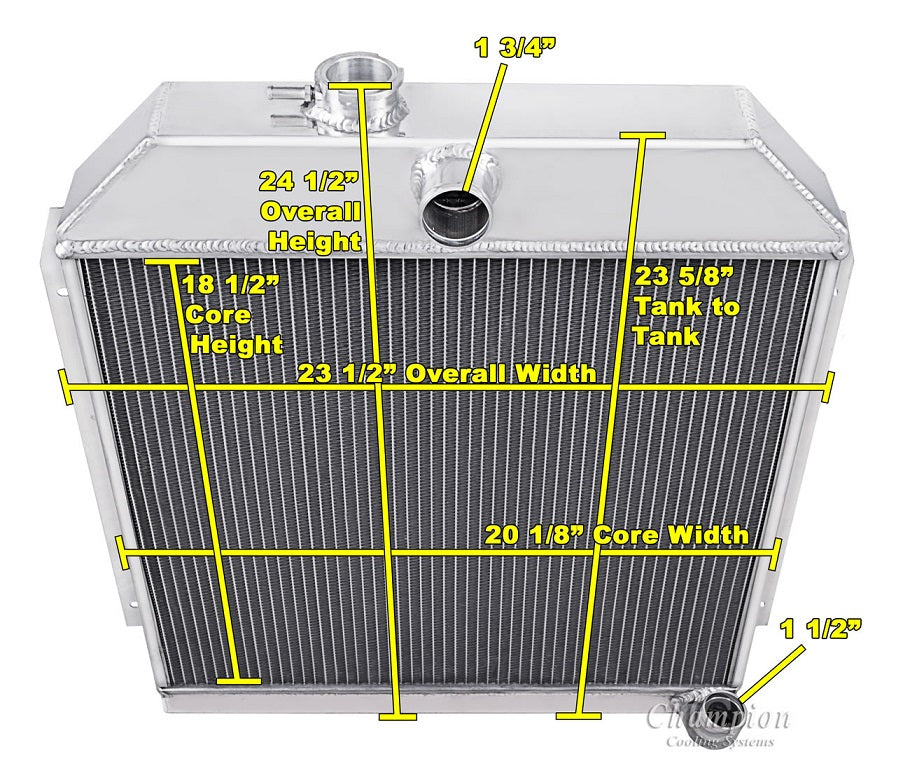

EC52PLY Radiator Dimensions:
Total: 24.5" tall x 23.5" wide x 1.75" thick
Core: 18.5" tall x 20.13" wide x 1.75" thick
Inlet: 1.75" Center
Outlet: 1.5" Passenger side
Tanks: 3" thick (top) / 2.5" thick (bottom)
Tubes: 0.75" thick

13lb. Radiator Cap included
No transmission cooler

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
