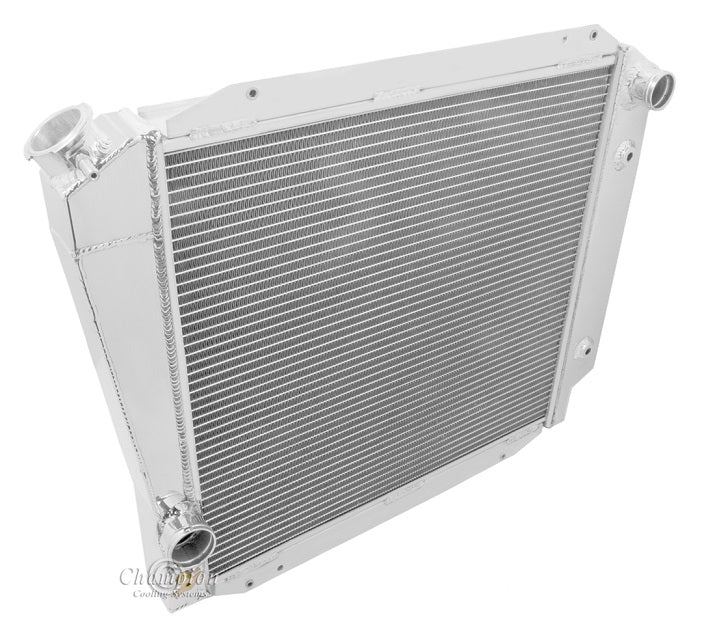

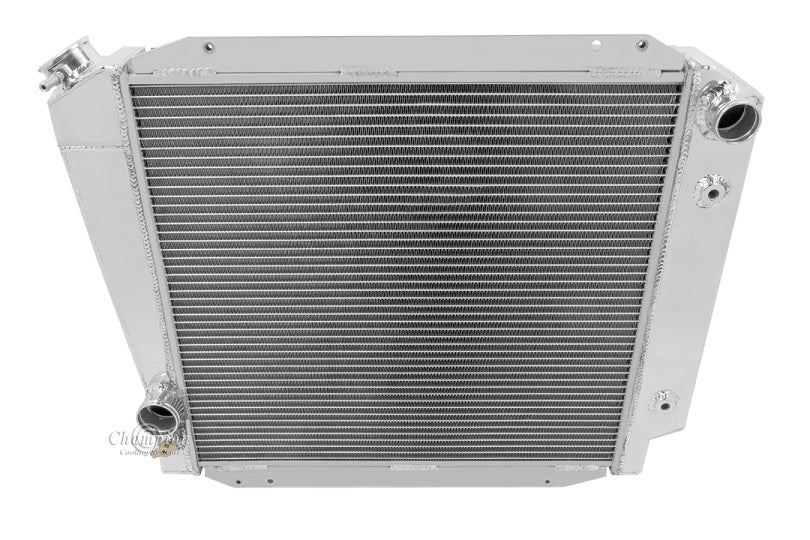

EC522 2 Row

Champion All Aluminum Radiator
Conversion style radiator
2-Row Core | Cools up to 400hp

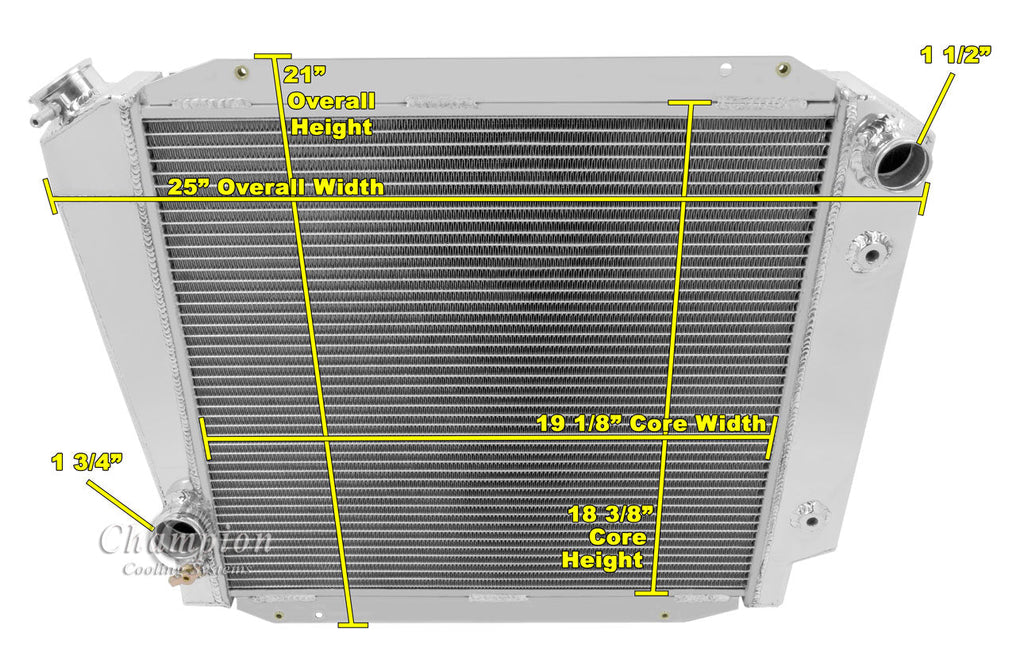

Radiator Dimensions:
Total: 20.88" tall (with cap) x 26" wide (including brackets)
Core: 19.1" tall x 19" wide x 1.63" thick
Inlet: 1.5" passenger side
Outlet: 1.75” Driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Shroud Bracket Nut Inserts: 6MM-1

Saddle Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
