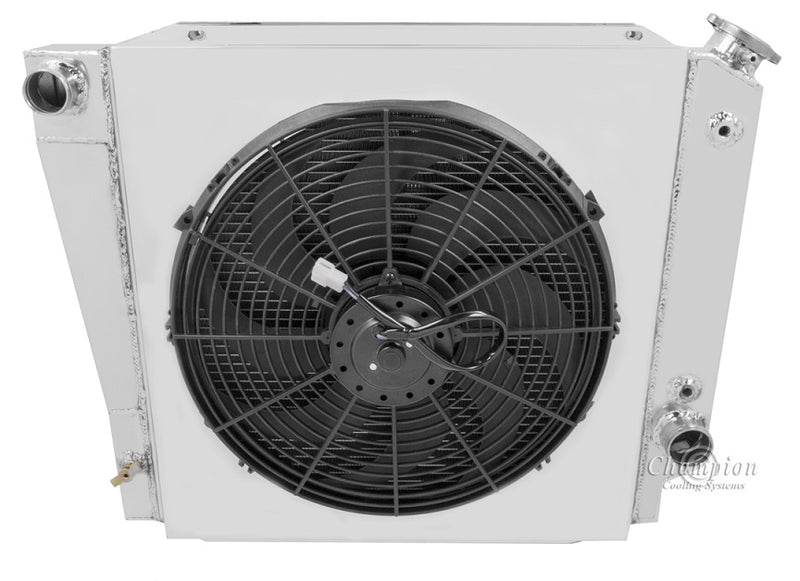

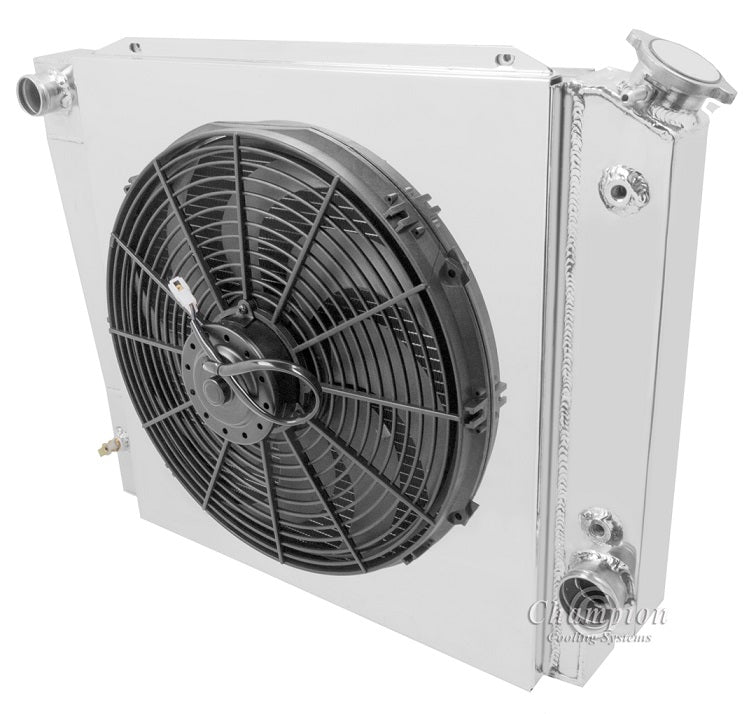

EC521-521FS16SP 2 Row Combo

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud and 16" SPAL 1516 Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
2-Row Core | Cools 400hp

EC521 Radiator Dimensions:
Total: 21" tall x 26.38" wide
Core: 19.13" tall x 19" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2" thick
Tubes: 0.75" thick
Shroud Bracket Nut Inserts: 6MM-1

Total Thickness: 5" to back of fan

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
