EC521 2 Row

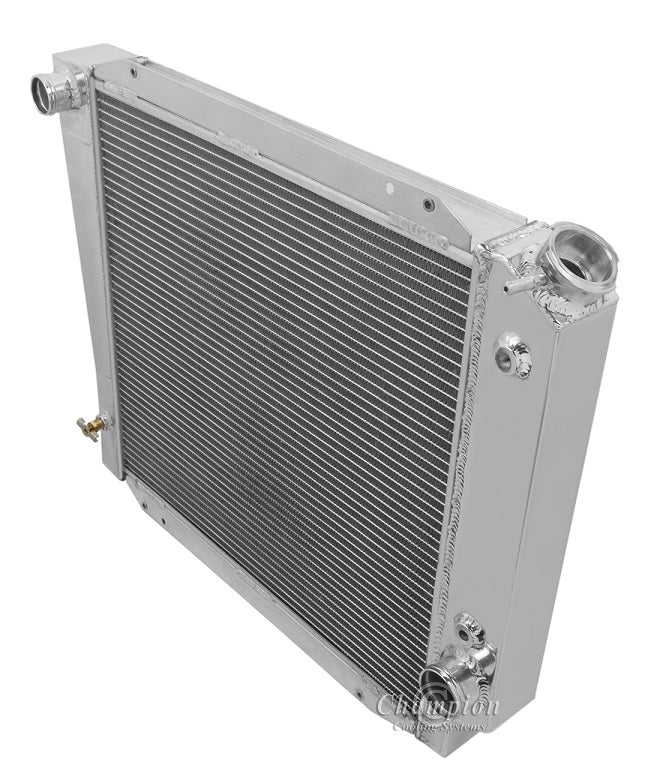

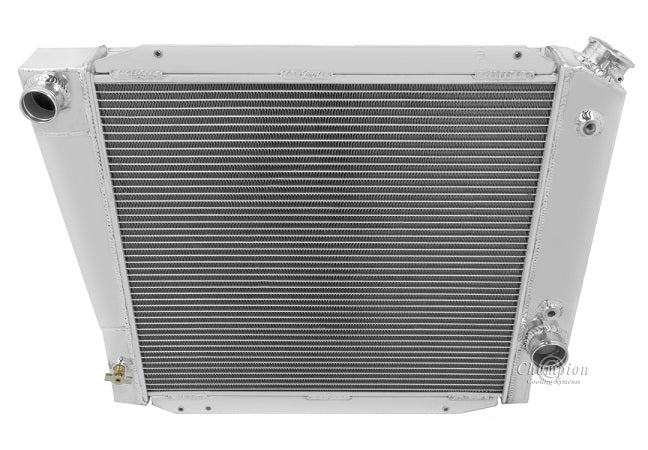

Champion All Aluminum Radiator
2-Row Core

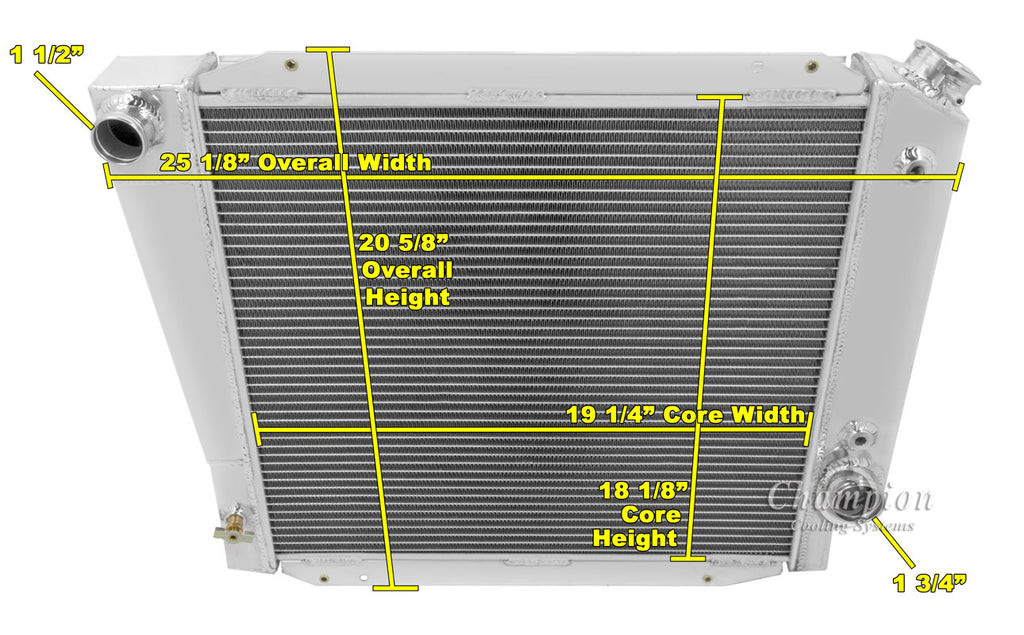

EC521 Radiator Dimensions:
Total: 21" tall x 26.38" wide
Core: 19.13" tall x 19" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Shroud Bracket Nut Inserts: 6MM-1

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
