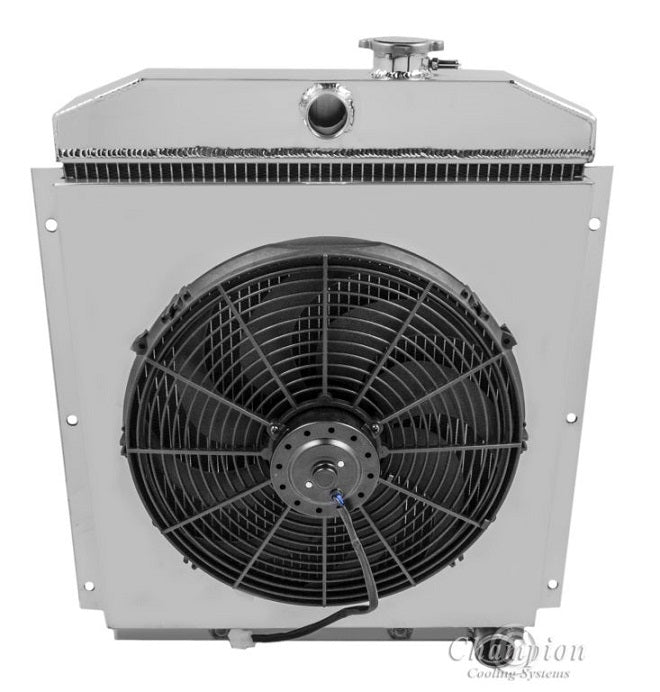

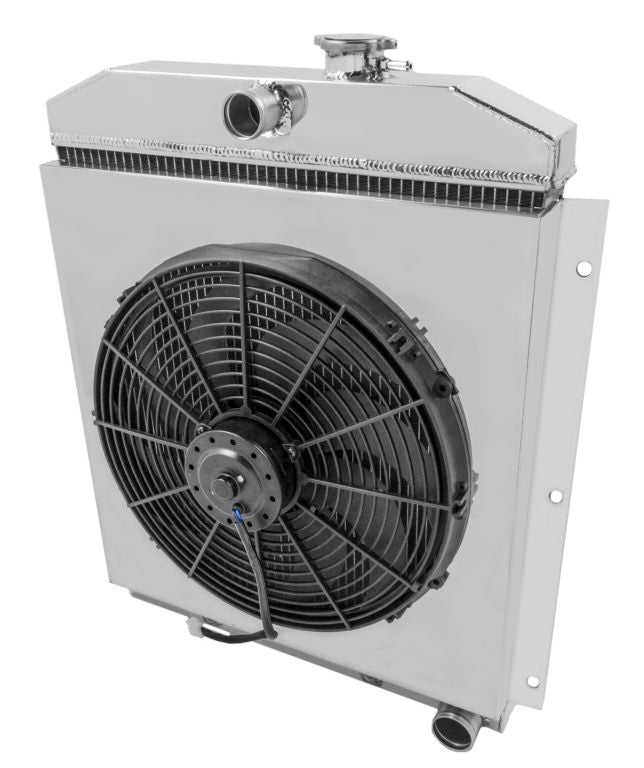

EC5100-5100FS16 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud and 16" fan
Verify clearance for electric fan (3.5" thick)
Total thickness: 6" to fan motor
2-Row Core | Cools up to 450hp

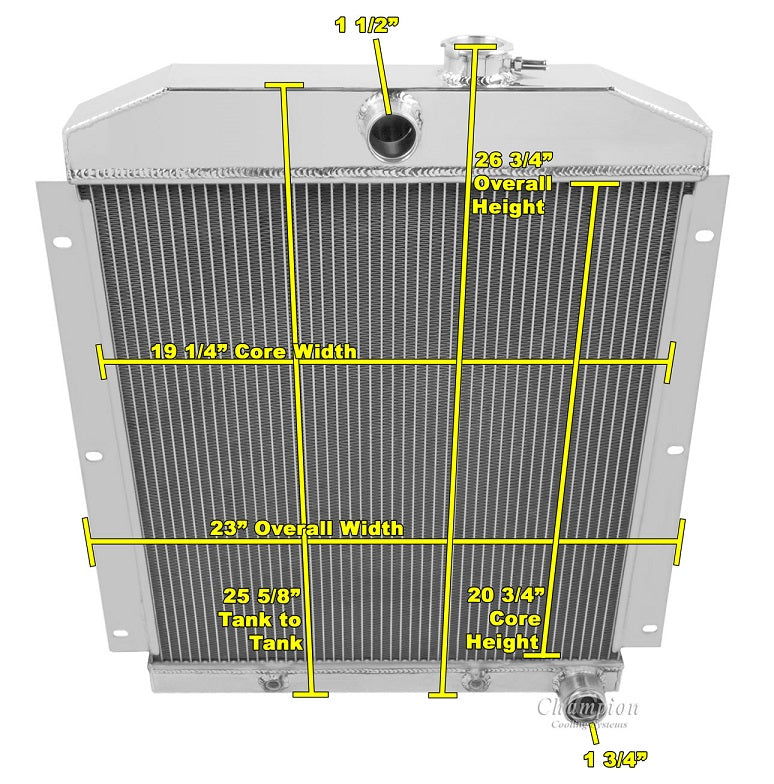

Radiator Dimensions:
Total: 25.5" (26.5" Incl Cap) Tall x 22.75" Wide (Incl Brackets)
Core: 20.75” Tall x 19.5” Wide x 1.75" thick
Inlet: 1.5” center / Outlet 1.75” Pass side
Tanks: 2.75" thick
Tubes: 1" thick

Bracket Mounted

Transmission Cooler Included (1/2"- 20 straight thread)13lb. Radiator Cap included

Angled Brackets match OEM
