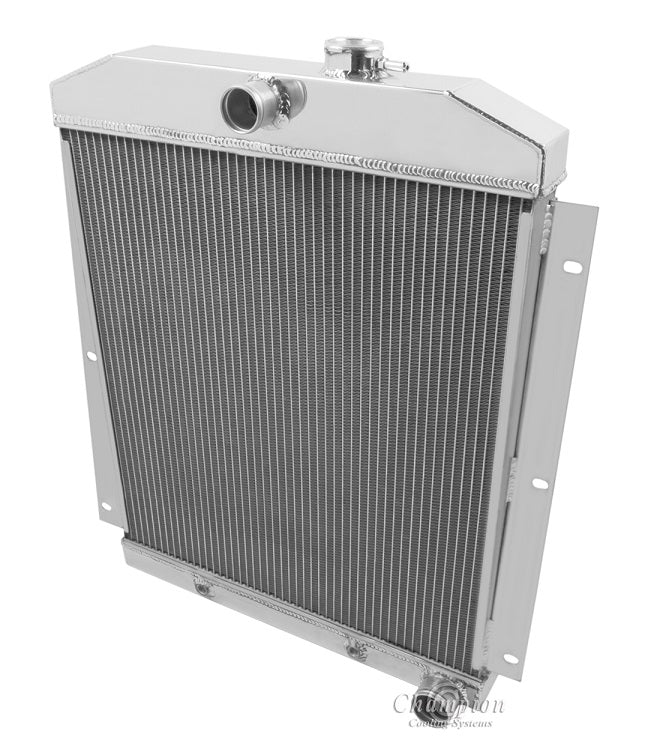

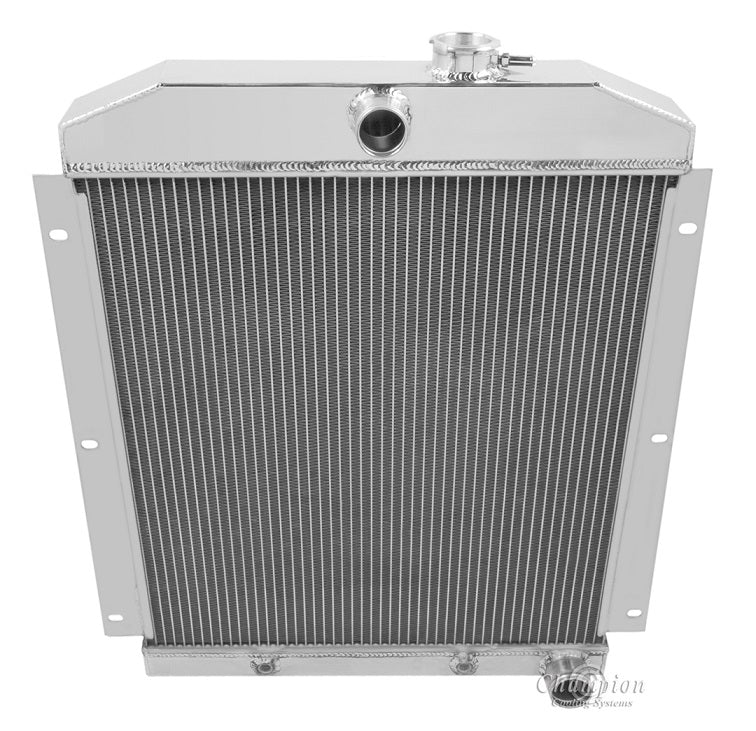

EC5100 2 Row For V8's

Champion All Aluminum Radiator
2-Row Core | Cools up to 450hp

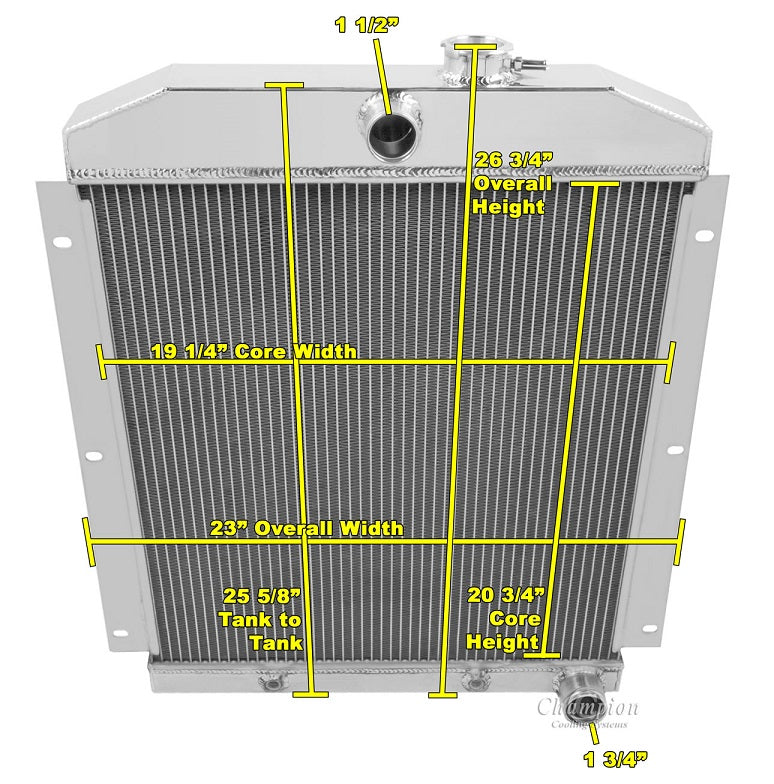

Radiator Dimensions:
Total: 25.5" tall (26.75" with cap) x 23" wide (with brackets)
Core: 20.75" tall x 19.25" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Angled Brackets match OEM

Transmission Cooler Included (1/2"- 20 straight thread)
13lb. Radiator Cap included
Aluminum shroud available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
