EC49FH 2 Row

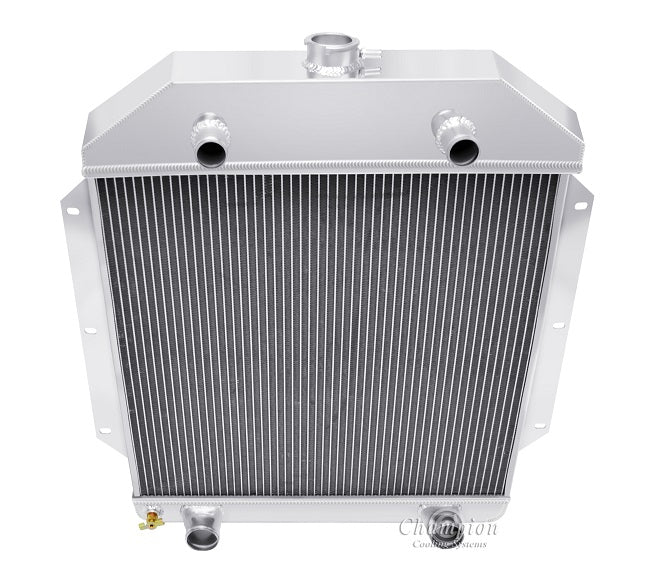

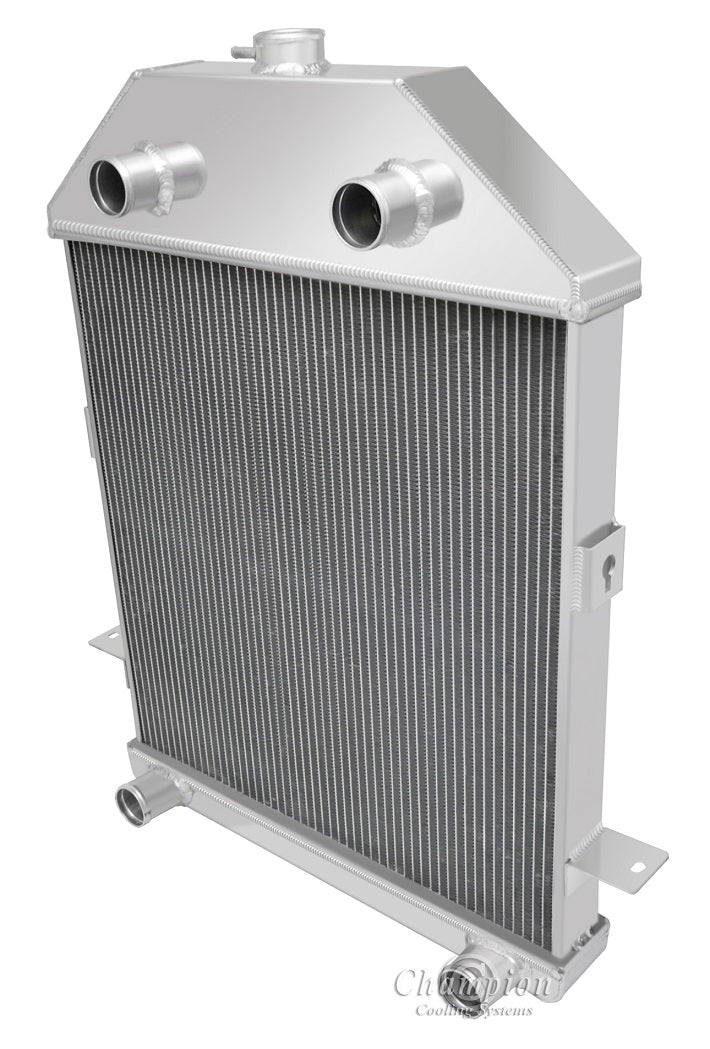

Champion All Aluminum Radiator
2-Row Core | Cools up to 350hp

Radiator Dimensions:
Total: 26.75" tall (with cap) x 24.75" wide (including brackets)
Core: 20.5" wide x 19.38" tall x 1.75" thick
Inlets: 1.25" passenger and driver side
Outlets: 1.75" passenger and driver side
Tanks: 3.88" thick (top); 3.88" thick (bottom)
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler NOT included

Recommended electric fans (sold separately):
One 16" Electric Fan
