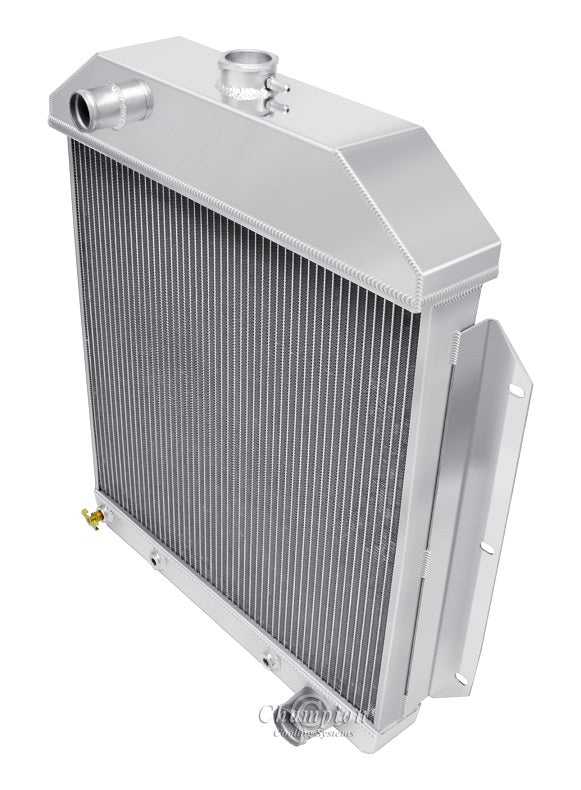

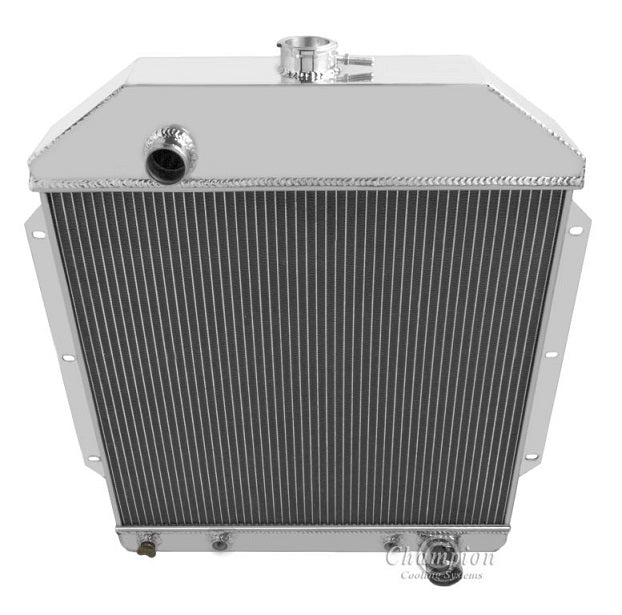

EC49CH 2 Row Chevy Motors

All Aluminum Champion Radiator
Chevy Engines Setup: Does not fit Ford 6 Cyl
2-Row Core | Cools up to 400hp

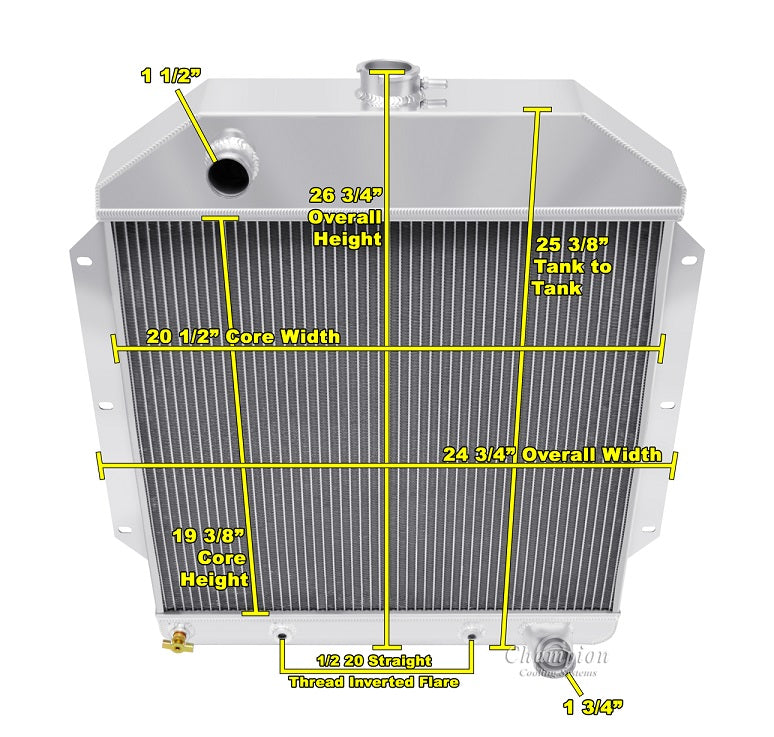

Radiator Dimensions:
Total: 26.63" tall x 24.75" wide
Core: 19.38" tall x 20.5" wide x 1.75" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: 3.88" thick (bottom) 2.5" thick
Tubes: 0.75" thick

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" 20 straight thread)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
