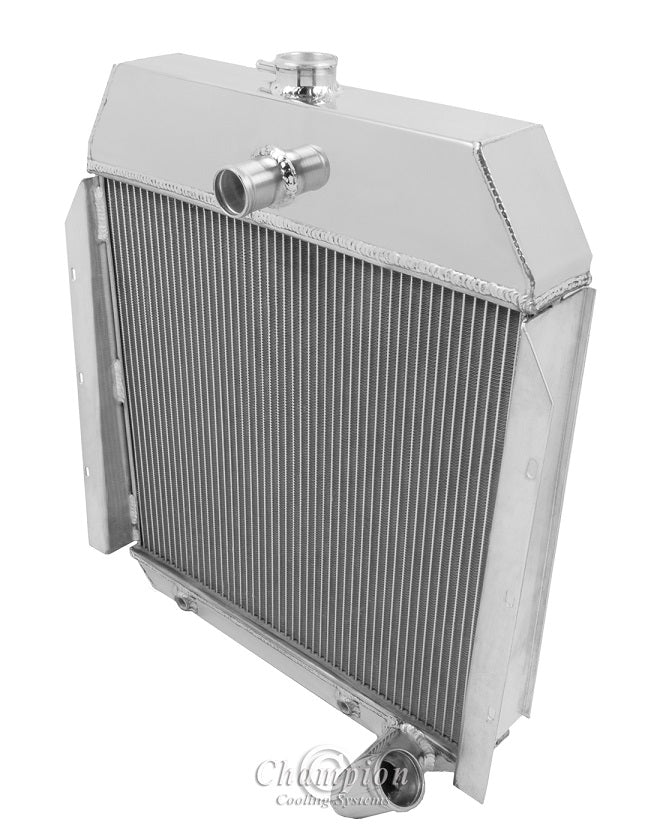

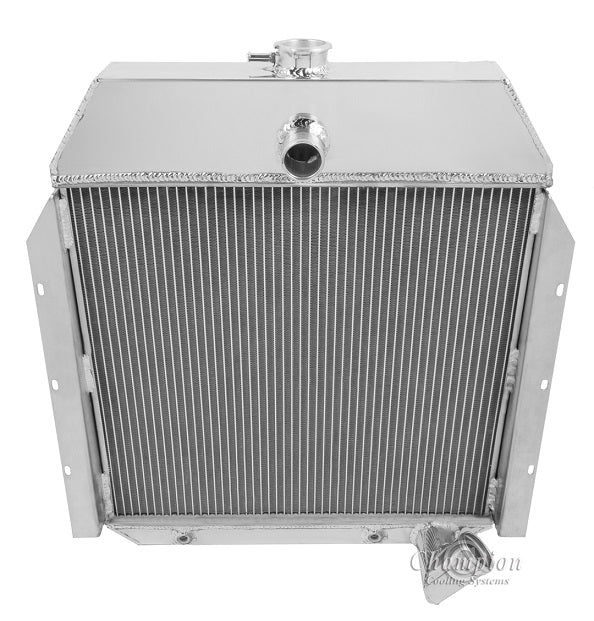

EC4960 2 Row

Champion All Aluminum Radiator
2-Row Core | Cools up to 400hp

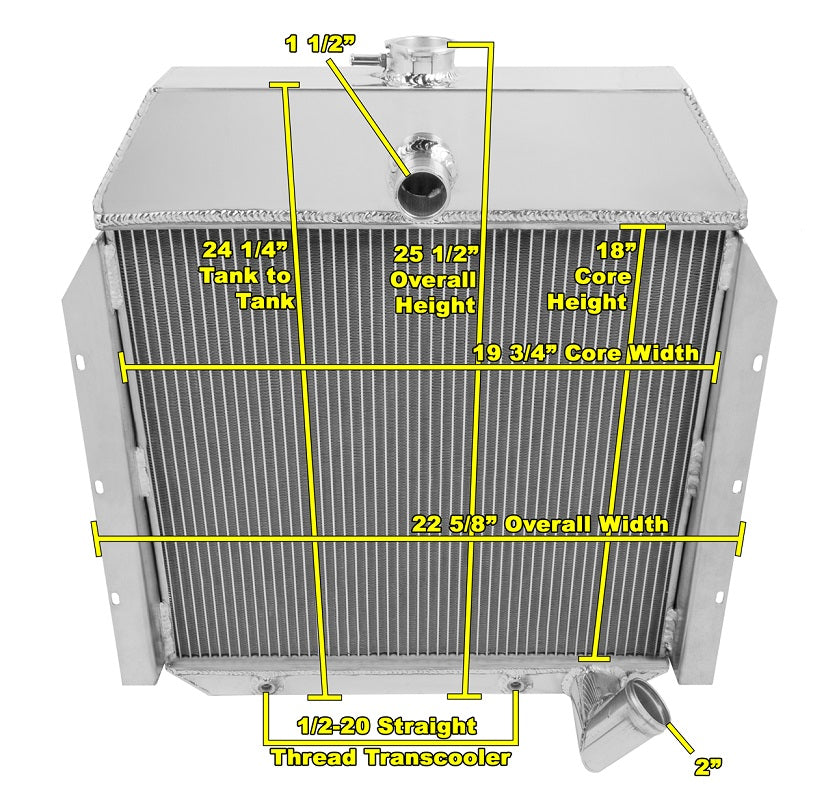

EC4960 Radiator Dimensions:
Total: 25.5" (incl cap) tall x 22.63" wide (incl brackets)
Core: 18" tall x 19.5" wide x 1.75" thick
Inlet: 1.5" center
Outlet: 2" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Bracket Mounted

13lb. Radiator Cap included
Transmissions Cooler included (1/2"-20 straight thread)
