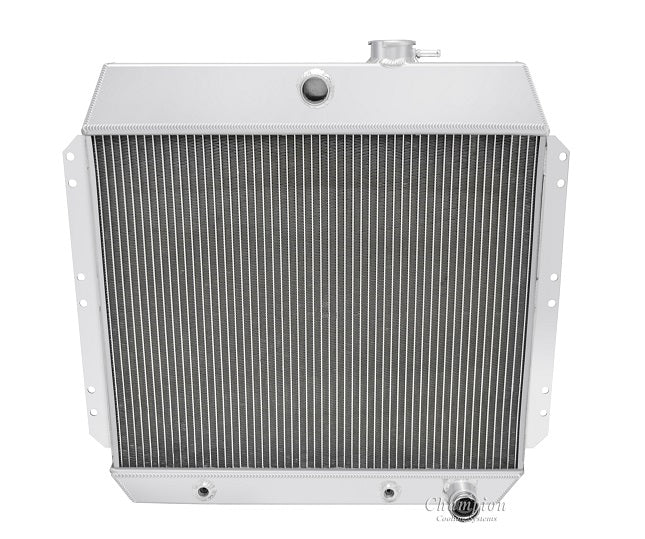

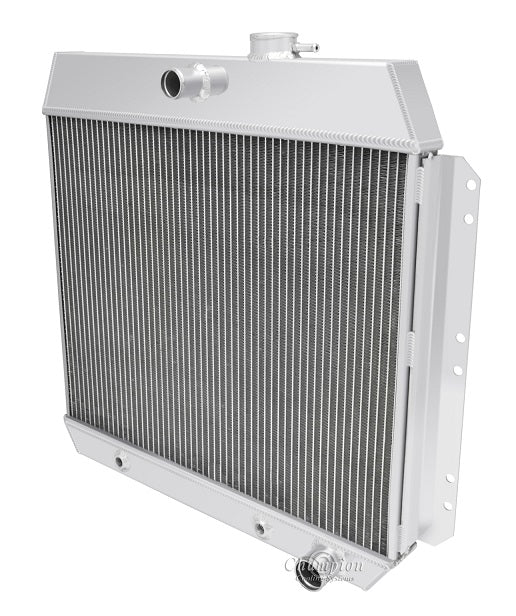

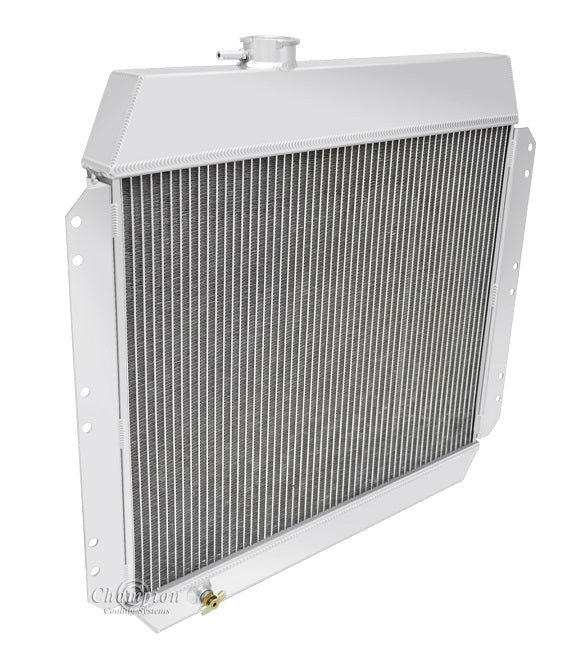

EC4954-6 2 Row 6 Cyl

Champion All Aluminum Radiator
2-Row Core | Cools up to 375hp

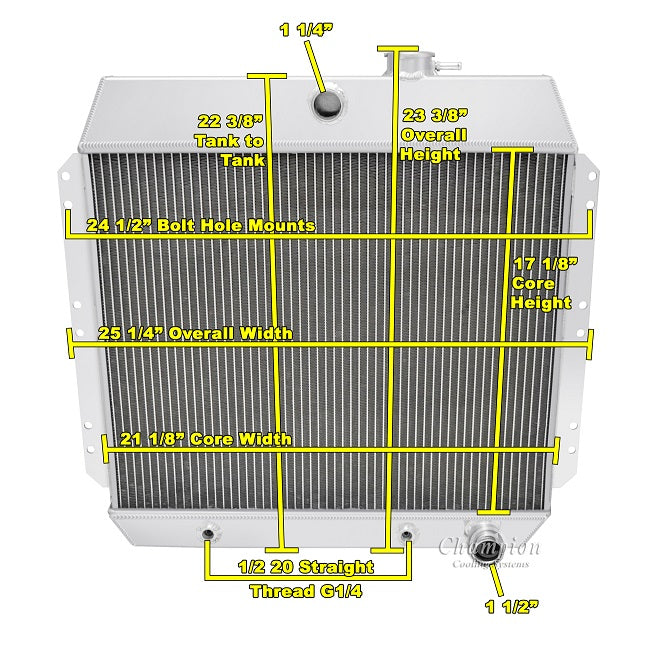

Radiator Dimensions:
Total: 23.63" tall (with cap) x 25.25" wide (with brackets)
Core: 17.13" tall x 21.5" wide x 1.75" thick
Inlet: 1.25" center
Outlet: 1.5" Passenger side
Tanks: 2" thick
Tubes: 0.75" thick

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/2"- 20 straight thread)
Petcock on back side
